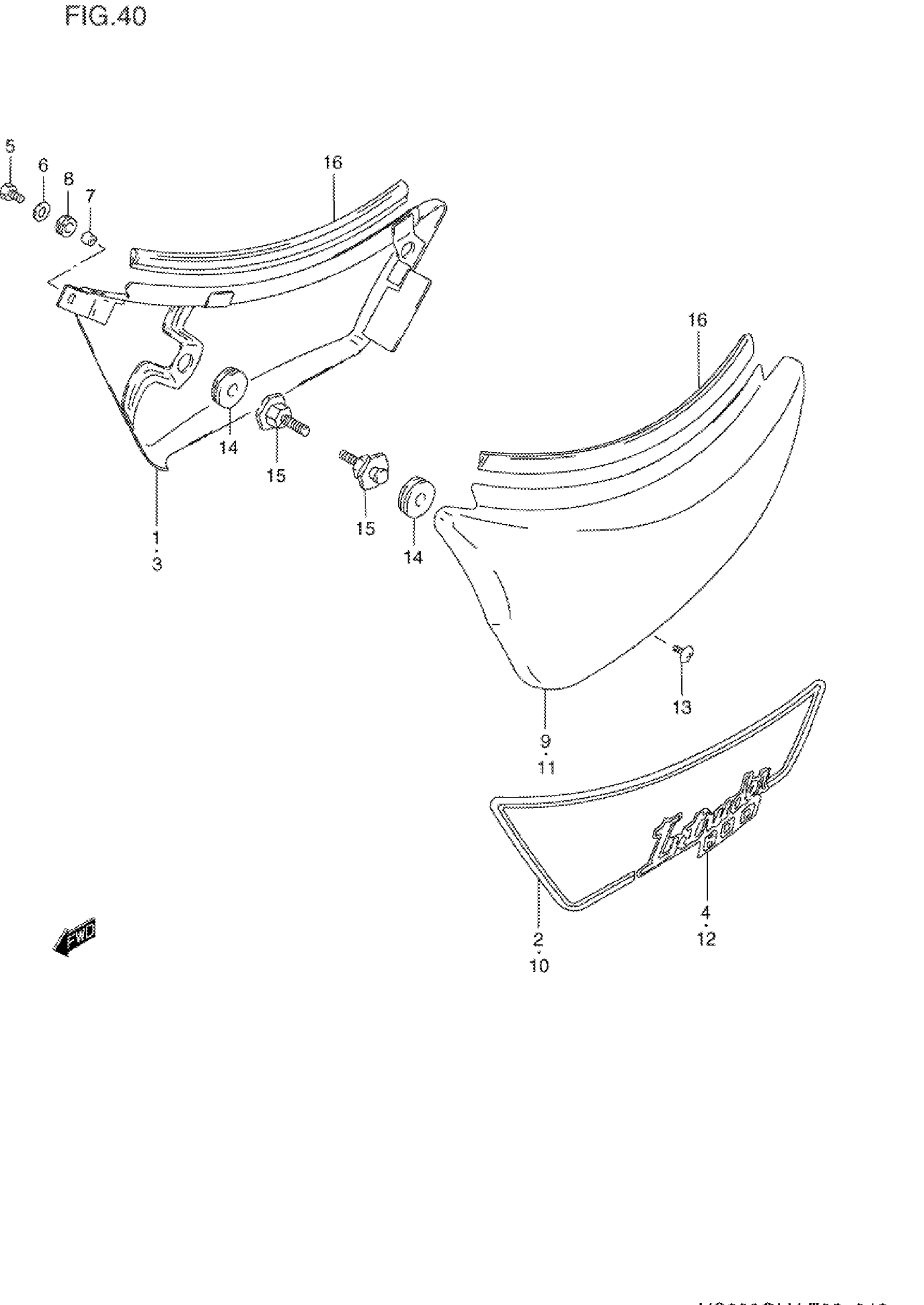

Suzuki VS800GLV (1997) FRAME COVER (MODEL N/P/R) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | MODEL N

47100-39A00-03F

Unavailable

1

COVER, FRAME RH (RED) | MODEL N; Includes Item(s) 2 - 2 This part replaces 47100-39A00-10X.

47110-38A00-19A

Unavailable

2

TAPE, RH | MODEL N FOR 03F

68135-39A01-M54

Unavailable

2

TAPE, RH | MODEL N FOR 10X

68135-39A01-M55

Unavailable

3

COVER, FRAME RH (RED) | MODEL P/R

47100-39A10-19A

Unavailable

3

COVER, FRAME RH (BLUE) | MODEL P

47100-39A10-0CG

Unavailable

3

COVER ASSY,FRAM | MODEL R; Includes Item(s) 4 - 4 This part replaces 47100-39A10-33J.

47110-38A00-13L

$305.78

4

EMBLEM | MODEL P/R FOR 19A

68131-39A00-M55

Unavailable

4

EMBLEM | MODEL P FOR 0CG

68131-39A00-A6S

Unavailable

4

EMBLEM | MODEL R FOR 33J

68131-39A00-C2P

Unavailable

5

BOLT, RH

01204-06167

$1.98

6

WASHER

09160-06084

$1.78

7

SPACER This part replaces 09180-06032.

09180-06246

$2.12

8

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

9

COVER ASSY,FRAM | MODEL N This part replaces 47200-39A00-03F.

47210-38A00-13L

$276.22

9

COVER ASSY,FRAM | MODEL N; Includes Item(s) 10 - 10 This part replaces 47200-39A00-10X.

47210-38A00-13L

$276.22

10

TAPE, LH | MODEL N FOR 03F

68145-39A01-M54

Unavailable

10

EMBLEM | MODEL N FOR 10X

68145-39A01-M55

Unavailable

11

COVER, FRAME LH (RED) | MODEL P/R

47200-39A10-19A

Unavailable

11

COVER, FRAME LH (BLUE) | MODEL P

47200-39A10-0CG

Unavailable

11

COVER, FRAME LH (BLACK) | MODEL R; Includes Item(s) 12 - 12 This part replaces 47200-39A10-33J.

47210-38A00-33J

$543.26

12

EMBLEM | MODEL P/R FOR 19A

68131-39A00-M55

Unavailable

12

EMBLEM | MODEL P FOR 0CG

68131-39A00-A6S

Unavailable

12

EMBLEM | MODEL R FOR 33J

68131-39A00-C2P

Unavailable

13

STOPPER, CL RLSE CAM SHAFT | MODEL N/P This part replaces 02142-06104.

02142-0610A

$1.49

13

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.49

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

15

BOSS, FRAME COVER

47250-38A01

$6.68

16

MOLDING, FRONT This part replaces 47218-38A00.

68241-04X50-300

$7.32

17

REFER TO FIG.40A(F-14) FOR

SPECIAL NOTE

Unavailable
