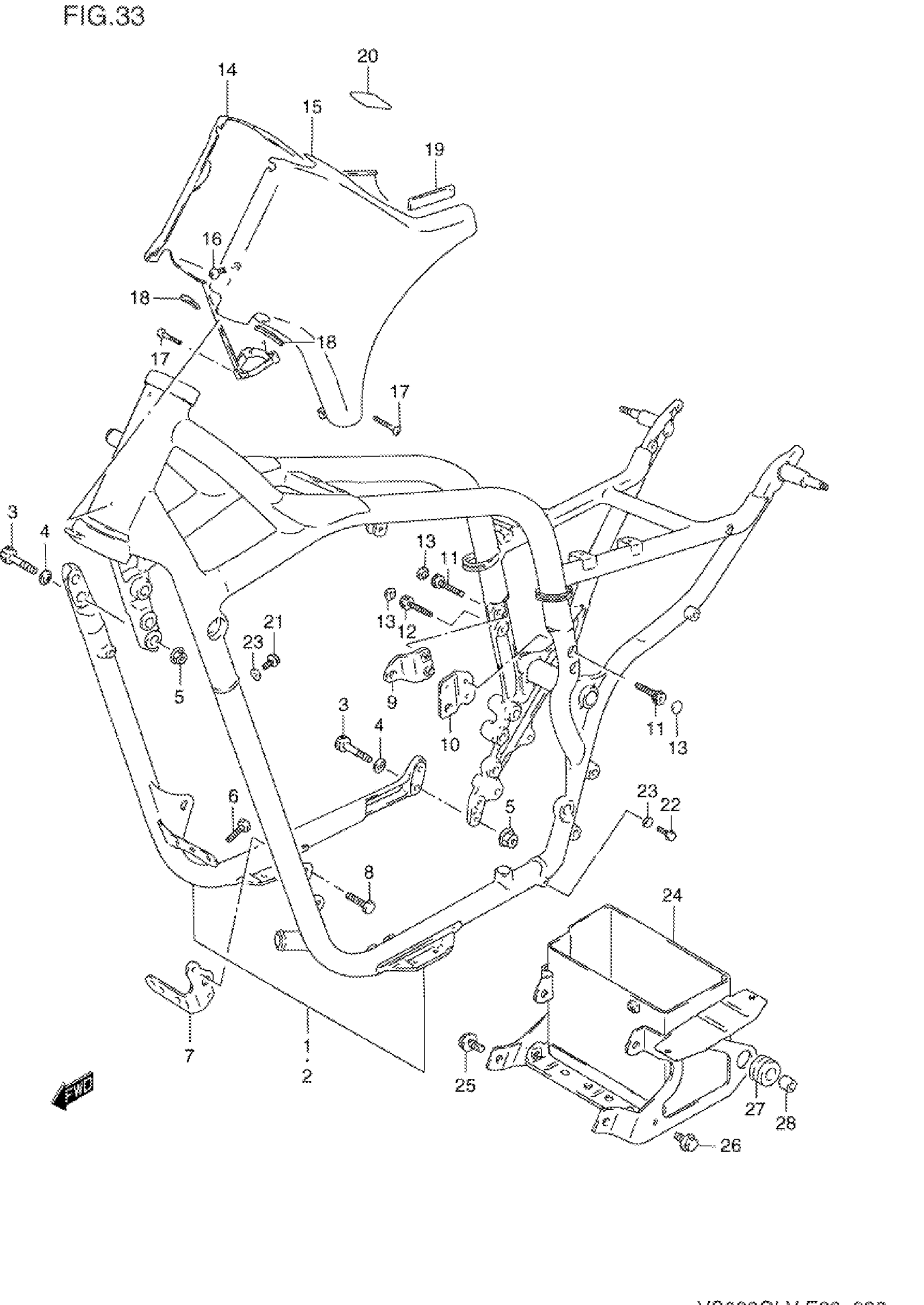

Suzuki VS800GLV (1997) FRAME Diagram

#

Description
Price

1

FRAME SET | MODEL N This part replaces 41101-39810-03F.

41101-39813-03F

Unavailable

1

FRAME SET (RED) | MODEL N/P This part replaces 41101-39810-19A.

41101-39813-19A

Unavailable

1

FRAME SET (RED) | MODEL R This part replaces 41101-39811-19A.

41101-39813-19A

Unavailable

1

FRAME SET | MODEL P This part replaces 41101-39810-0CG.

41101-39813-0CG

Unavailable

1

FRAME SET (BLACK) | MODEL R This part replaces 41101-39811-33J.

41101-39813-33J

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL S/T This part replaces 41101-39812-20F.

41101-39813-20F

Unavailable

2

FRAME SET (BLACK) | MODEL S This part replaces 41101-39812-33J.

41101-39813-33J

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 41101-39812-1ZV.

41101-39813-1ZV

Unavailable

2

FRAME SET (RED) | MODEL V

41101-39813-19A

Unavailable

2

FRAME SET (BLACK) | MODEL V; Includes Item(s) 3 - 6

41101-39813-33J

Unavailable

3

BOLT, REAR

09106-10019

$3.50

4

WASHER

09164-10010

$4.83

5

NUT This part replaces 08319-31105.

08319-3110A

$2.73

6

BOLT | MODEL N/P This part replaces 01517-08205.

01550-0820A

$2.23

6

BOLT | MODEL R/S/T/V This part replaces 01550-08203.

01550-0820A

$2.23

7

PLATE, NO.1 LH (BLACK) | MODEL N This part replaces 41920-38A00-03F.

41920-38A00-019

Unavailable

7

PLATE, NO.1 LH (BLACK) | MODEL N/P/R This part replaces 41920-38A00-19A.

41920-38A00-019

Unavailable

7

PLATE, NO.1 LH (BLACK) | MODEL P This part replaces 41920-38A00-0CG.

41920-38A00-019

Unavailable

7

PLATE, NO.1 LH (BLACK) | MODEL R/S This part replaces 41920-38A00-33J.

41920-38A00-019

Unavailable

7

PLATE, NO.1 LH (MAROON) | MODEL S

41920-38A00-20F

Unavailable

7

PLATE, NO.1 LH (BLACK) | MODEL T/V

41920-38A00-019

Unavailable

8

BOLT | MODEL N/P This part replaces 01137-08165.

01570-0816A

$3.03

8

BOLT | MODEL R/S/T/V This part replaces 01570-08163.

01570-0816A

$3.03

9

PLATE, NO.1 LH (BLUE) | MODEL N

41950-38A10-03F

Unavailable

9

PLATE, NO.1 LH (RED) | MODEL N This part replaces 41950-38A10-19A.

41950-38A11-19A

Unavailable

9

PLATE, NO.1 LH (RED) | MODEL P/R

41950-38A11-19A

Unavailable

9

PLATE, NO.1 LH (BLUE) | MODEL P

41950-38A11-0CG

Unavailable

9

PLATE, NO.1 LH (BLACK) | MODEL R/S

41950-38A11-33J

Unavailable

9

PLATE, NO.1 LH (MAROON) | MODEL S

41950-38A11-20F

Unavailable

9

PLATE, NO.1 LH (BLACK) | MODEL T/V

41950-38A11-019

Unavailable

10

PLATE, NO.3 LH (BLUE) | MODEL N

41960-38A10-03F

Unavailable

10

PLATE, NO.3 LH (RED) | MODEL N/P/R

41960-38A10-19A

Unavailable

10

PLATE, NO.3 LH (BLUE) | MODEL P

41960-38A10-0CG

Unavailable

10

PLATE, NO.3 LH (BLACK) | MODEL R

41960-38A10-33J

Unavailable

10

PLATE, NO.3 LH (MAROON) | MODEL S

41960-38A10-20F

Unavailable

10

PLATE, NO.3 LH (BLACK) | MODEL T/V

41960-38A10-019

Unavailable

11

BOLT, UPPER

09106-08070

$5.88

12

BOLT, STEERING DAMPER | MODEL N/P/R This part replaces 09106-08063.

07130-0830A

$1.74

12

BOLT, STEERING DAMPER | MODEL S/T/V This part replaces 07130-08303.

07130-0830A

$1.74

13

CAP

09250-06004

$1.49

14

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 47350-38A00-03F.

47350-38A01-03F

Unavailable

14

COVER,FRAME HEA | MODEL N/P This part replaces 47350-38A00-19A.

47350-38A01-13L

Unavailable

14

COVER,FRAME HEA | MODEL R/V This part replaces 47350-38A01-19A.

47350-38A01-13L

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47350-38A00-0CG.

47350-38A01-0CG

Unavailable

14

COVER, FRAME HEAD RH (BLACK) | MODEL R/S/V

47350-38A01-33J

Unavailable

14

COVER, FRAME HEAD RH (MAROON) | MODEL S/T

47350-38A01-20F

Unavailable

14

COVER, FRAME HEAD LH (GREEN) | MODEL T

47350-38A01-1ZV

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 47360-38A00-03F.

47360-38A01-03F

Unavailable

15

COVER, FRAME HEAD LH (RED) | MODEL N/P This part replaces 47360-38A00-19A.

47360-38A01-19A

Unavailable

15

COVER, FRAME HEAD LH (RED) | MODEL R/V

47360-38A01-19A

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47360-38A00-0CG.

47360-38A01-0CG

Unavailable

15

COVER, FRAME HEAD LH (BLACK) | MODEL R/S/V

47360-38A01-33J

Unavailable

15

COVER, FRAME HEAD LH (MAROON) | MODEL S/T

47360-38A01-20F

Unavailable

15

COVER, FRAME HEAD LH (GREEN) | MODEL T

47360-38A01-1ZV

Unavailable

16

SCREW | MODEL N/P This part replaces 02142-05104.

02142-0510B

$1.78

16

STOPPER, CL RLSE CAM SHAFT | MODEL R/S/T/V This part replaces 02142-06103.

02142-0610A

$1.49

17

SCREW | MODEL N/P This part replaces 02112-04254.

02112-0425B

$2.34

17

SCREW | MODEL R/S/T/V This part replaces 02112-04253.

02112-0425B

$2.34

18

MOLDING, FRONT This part replaces 68241-38A10.

68241-04X50-300

$7.32

19

PROTECTOR (80X80X2) | MODEL N/P/R This part replaces 33652-38A10.

33652-07D00

$5.64

19

CUSHION, FRAME HEAD COVER | MODEL S/T/V

33652-07D00

$5.64

20

TAPE, FRAME HEAD COVER

47358-38A00

Unavailable

21

UNION This part replaces 09360-06015.

09360-06015-XC0

Unavailable

22

BOLT | MODEL N/P This part replaces 01517-06105.

01550-0610A

$1.97

22

BOLT | MODEL R/S/T/V This part replaces 01550-06103.

01550-0610A

$1.97

23

GASKET

09168-06004

$1.49

24

HOLDER, BATTERY | MODEL N/P/R/S/T This part replaces 41540-38A11.

41540-38A12

$129.45

24

HOLDER, BATTERY | MODEL V

41540-38A12

$129.45

25

PLUG, OIL GALLERY | MODEL N/P This part replaces 01517-10165.

01550-1016A

$3.10

25

PLUG, OIL GALLERY | MODEL R/S/T This part replaces 01550-10163.

01550-1016A

$3.10

26

BOLT | MODEL N/P This part replaces 01517-06164.

01550-0616A

$1.97

26

BOLT | MODEL R/S/T/V This part replaces 01550-06163.

01550-0616A

$1.97

27

CUSHION

09320-12031

$2.34

28

SPACER (8.5X12X11) | MODEL N/P/R/S This part replaces 09180-08001.

09180-08189

$2.58

28

SPACER | MODEL T/V

09301-08009

$5.08
