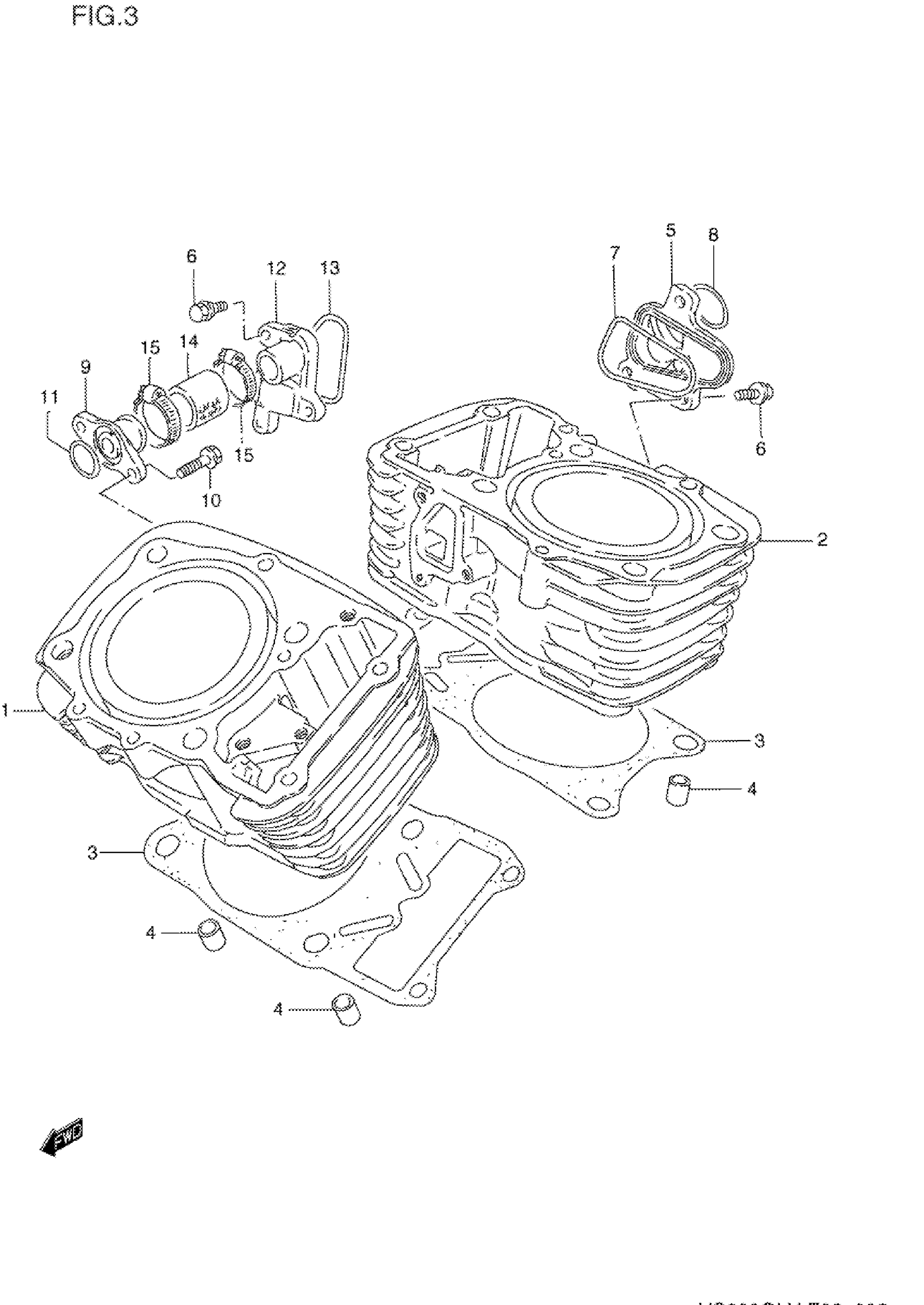

Suzuki VS800GLV (1997) CYLINDER Diagram

#

Description
Price

1

CYLINDER, FRONT | MODEL N/P This part replaces 11210-39A00.

11210-39A01

Unavailable

1

CYLINDER, FRONT | MODEL R/S/T/V

11210-39A01

Unavailable

2

CYLINDER, REAR | MODEL N/P This part replaces 11220-39A00.

11220-39A01

Unavailable

2

CYLINDER, REAR | MODEL R/S/T/V

11220-39A01

Unavailable

3

GASKET, CYLINDER

11241-45C20

$18.23

4

PIN | MODEL N/P This part replaces 09206-13001.

04211-13189

$2.19

4

PIN | MODEL R/S/T/V

04211-13189

$2.19

5

CONNECTOR, WATER INLET | MODEL N/P This part replaces 11237-38A01.

11237-41F00

$44.48

5

CONNECTOR, WATER INLET | MODEL R/S/T/V This part replaces 11237-45C10.

11237-41F00

$44.48

6

BOLT

01547-06207

$2.01

7

O RING

11247-38A00

$3.56

8

O RING (D:2.3,ID:24.4)

09280-24007

$1.91

9

UNION, WATER INLET | MODEL N/P This part replaces 11235-38A00.

11235-41F00

$25.52

9

UNION, WATER INLET | MODEL R/S/T/V This part replaces 11235-45C10.

11235-41F00

$25.52

10

BOLT

01547-06167

$1.65

11

O RING (D:2.4,ID:15.8)

09280-16005

$2.23

12

CHAMBER, WATER OUTLET | MODEL N/P This part replaces 11236-38A01.

11236-45C10

Unavailable

12

CHAMBER, WATER OUTLET | MODEL R/S/T/V

11236-45C10

Unavailable

13

O RING

11246-38A00

$5.32

14

HOSE, CYLINDER JOINT | MODEL N/P/R This part replaces 17853-38A00.

17851-01A00

$22.10

14

HOSE, CYLINDER JOINT | MODEL S/T/V This part replaces 17853-28C20.

17851-01A00

$22.10

15

CLAMP | MODEL N/P/R This part replaces 09402-25502.

09402-28511

$6.88

15

CLAMP | MODEL S/T/V

09402-28511

$6.88
