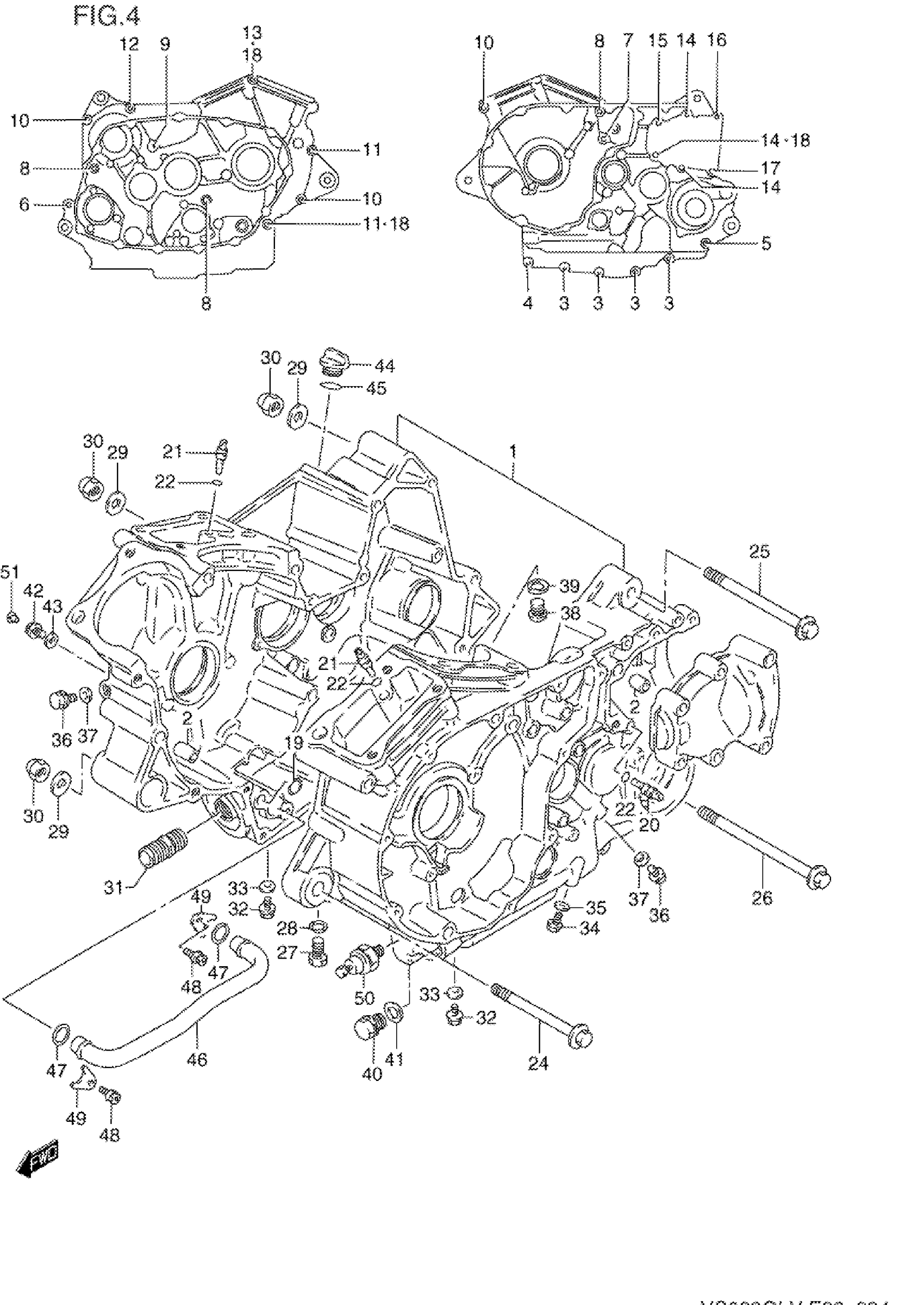

Suzuki VS800GLV (1997) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL N This part replaces 11300-38896.

11300-38898

Unavailable

1

CRANKCASE SET | MODEL P

11300-38898

Unavailable

1

CRANKCASE SET | MODEL R This part replaces 11300-38899.

11300-38898

Unavailable

1

CRANKCASE SET | MODEL S/T/V; Includes Item(s) 2 - 23

11301-38830

Unavailable

2

PIN (11X20) | MODEL N/P/R/S/T This part replaces 09206-11005.

09206-11017

$6.30

2

PIN | MODEL V

09206-11017

$6.30

3

BOLT

01550-06407

$2.69

4

BOLT

01550-08357

$3.49

5

BOLT

01550-08557

$3.74

6

BOLT

01550-08607

$3.76

7

BOLT | MODEL N/P

01550-08757

$4.68

7

BOLT | MODEL R/S/T/V This part replaces 01550-08753.

01550-0875A

$3.55

8

BOLT | MODEL N/P

01550-08957

$5.37

8

BOLT | MODEL R/S/T/V This part replaces 01550-08953.

01550-0895A

$4.60

9

BOLT (8X120)

09103-08109

$3.18

10

BOLT (8X95)

09103-08164

$4.77

11

BOLT (8X105)

09103-08165

Unavailable

12

BOLT (8X120)

09103-08166

Unavailable

13

BOLT (8X160)

09103-08167

Unavailable

14

BOLT

01550-08407

$3.42

15

BOLT

01550-08507

$3.55

16

BOLT (8X55)

09103-08162

Unavailable

17

BOLT (8X65)

09103-08163

$2.50

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

19

O RING (D:1.9,ID:12.6) | MODEL N/P/R/S This part replaces 09280-13009.

09280-12009

$3.18

19

O RING, CRANKCASE | MODEL T/V

09280-12009

$3.18

20

JET,T/M OIL GALLERY

09493-20014

$16.87

21

JET, OIL GALLERY

09493-28010

$16.57

22

O RING (D:1.2,ID:4.0)

09280-04004

$1.91

23

WASHER, CRANK THRUST (NO.1) | SEE ILLUSTRATION ON FIG.6 (B-12)

09160-48001

Unavailable

23

WASHER, CRANK THRUST (NO.2)

09160-48002

Unavailable

23

WASHER, CRANK THRUST (NO.3)

09160-48003

Unavailable

23

WASHER, CRANK THRUST (NO.4)

09160-48004

Unavailable

23

WASHER, CRANK THRUST (NO.5)

09160-48005

Unavailable

23

WASHER, CRANK THRUST (NO.6)

09160-48006

$30.35

23

WASHER, CRANK THRUST (NO.7)

09160-48007

Unavailable

23

WASHER, CRANK THRUST (NO.8)

09160-48008

Unavailable

23

WASHER, CRANK THRUST (NO.9)

09160-48009

Unavailable

23

WASHER, CRANK THRUST (NO.10)

09160-48010

$30.35

24

BOLT (10X125)

09103-10141

$8.43

25

BOLT (10X130) | MODEL N/P/R

09103-10237

$9.68

25

BOLT (10X130) | MODEL S/T/V

09103-10122

$8.38

26

BOLT (10X150)

09103-10078

$8.58

27

PLUG, OIL DRAIN | MODEL N/P/R/S

01550-12207

$4.77

27

BOLT | MODEL T/V This part replaces 01550-12203.

01550-1220B

$4.77

28

GASKET

09168-12002

$1.59

29

WASHER, KNUCKLE END | MODEL N/P This part replaces 08322-11104.

08322-0110A

$1.84

29

WASHER | MODEL R/S

08322-01107

$2.15

29

WASHER, KNUCKLE END | MODEL T/V This part replaces 08322-01103.

08322-0110A

$1.84

30

NUT

09159-10052

$7.11

31

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

32

PLUG, OIL GALLERY

01550-08127

$2.85

33

GASKET

09168-08015

$2.79

34

PLUG, OIL GALLERY

09247-10008

$1.97

35

GASKET

09168-10002

$2.13

36

PLUG, OIL GALLERY

01550-06107

$2.80

37

WASHER (5.8X13X1.2) | MODEL N/P/R

09168-06023

$2.35

37

WASHER (5.8X11X1.2) | MODEL S/T/V

09168-06024

$2.20

38

PLUG, OIL GALLERY

09248-16008

$5.72

39

GASKET

09168-16002

$1.91

40

PLUG | MODEL N/P This part replaces 09247-14012.

09247-14026

$3.76

40

PLUG, OIL GALLERY | MODEL R/S/T/V

09247-14026

$3.76

41

GASKET (14.1X18X1.5) | MODEL N/P/R

09168-14004

$1.83

41

GASKET (13.8X18.8X0.4) | MODEL S/T/V

09168-14002

$2.26

42

PLUG, OIL GALLERY

07120-08127

Unavailable

43

GASKET

09168-08015

$2.79

44

PLUG, OIL FILLER | MODEL N/P This part replaces 09259-20009.

09259-20007

$7.53

44

PLUG, OIL FILLER | MODEL R/S/T/V

09259-20007

$7.53

45

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

46

PIPE, OIL GALLERY

11451-38A00

Unavailable

47

O RING (D:3.1,ID:14.8)

09280-15008

$2.15

48

BOLT, OIL GALLERY | MODEL N/P This part replaces 07120-06128.

07120-06127

$3.85

48

BOLT, OIL GALLERY | MODEL R/S/T/V This part replaces 07120-06123.

07120-0612B

$3.04

49

CLAMP

11461-38A00

Unavailable

50

SWITCH ASSY,OIL PRESSURE | MODEL N This part replaces 37820-33200.

37820-33D11

$25.13

50

SWITCH ASSY,OIL PRESSURE | MODEL P/R/S/T/V This part replaces 37820-33D00.

37820-33D11

$25.13

51

CAP

09250-06011

$2.50
