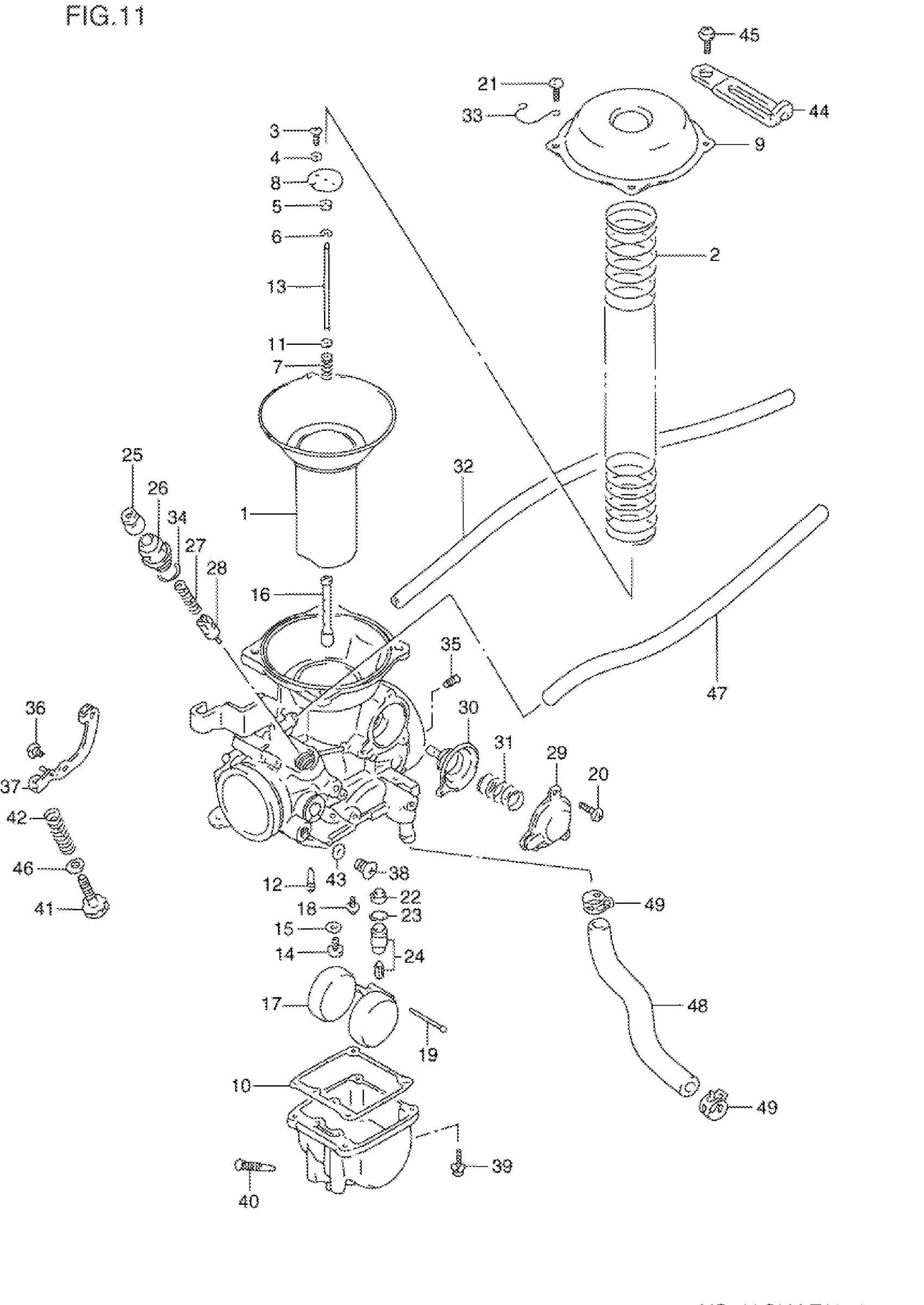

Suzuki VS800GLV (1997) CARBURETOR (REAR) Diagram

#

Description
Price

CARBURETOR ASSY, REAR

13220-38E10

$1,050.42

CARBURETOR ASSY, REAR | CALIFORNIA ONLY; Includes Item(s) 1 - 47 This part replaces 13220-38E50.

13220-38E52

Unavailable

1

DIAPHRAGM ASSY

13500-38A10

$167.50

2

SPRING

13503-38B00

$10.69

3

SCREW | MODEL N/P This part replaces 02112-03066.

02112-0306B

$1.59

3

SCREW | MODEL R/S/T/V This part replaces 02112-03063.

02112-0306B

$1.59

4

LOCK WASHER | MODEL N/P This part replaces 08321-21036.

08321-2103B

$1.49

4

LOCK WASHER | MODEL R/S/T/V This part replaces 08321-21033.

08321-2103B

$1.49

5

RING | MODEL N/P This part replaces 13387-38210.

13387-47010

$7.22

5

RING | MODEL R/S/T/V

13387-47010

$7.22

6

E RING

13394-10010

$5.45

7

SPRING

13388-44030

$8.12

8

PLATE

13389-37400

$7.08

9

COVER | MODEL N/P/R/S/T

13502-45C00

Unavailable

9

COVER | MODEL V This part replaces 13502-38A10.

13502-45CE0

$41.05

10

GASKET

13251-38A10

$7.69

11

WASHER

13382-44030

$3.71

12

JET, PILOT (45)

09492-45016

$9.69

13

NEEDLE, JET (5D35-1)

13383-38B00

$18.43

14

JET, MAIN (132.5)

09491-26012

$11.18

15

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

16

JET, NEEDLE (P-7)

09494-00689

Unavailable

17

FLOAT

13252-23010

$20.65

18

SCREW

13602-05A10

$3.56

19

PIN

13254-92311

$2.07

20

SCREW | MODEL N/P/R This part replaces 13602-38A10.

02112-04107

$1.55

20

SCREW | MODEL S/T/V

02112-04107

$1.55

21

SCREW | MODEL N/P This part replaces 02112-04086.

02112-0408A

$1.49

21

SCREW | MODEL R/S/T/V This part replaces 02112-04083.

02112-0408A

$1.49

22

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

23

O RING This part replaces 13374-44080.

13374-35C00

$5.99

24

VALVE ASSY, NEEDLE

13370-39A00

$60.40

25

.CAP This part replaces 13681-04010.

13681-04011

$4.93

26

HOLDER, GUIDE

13418-43410

$7.22

27

SPRING

13417-22010

$3.56

28

PLUNGER ASSY

13411-01400

$13.30

29

COVER

13484-38A10

$22.22

30

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

31

SPRING | MODEL N/P/R This part replaces 13481-05A10.

13481-45C10

$5.55

31

SPRING | MODEL S/T/V

13481-45C10

$5.55

32

HOSE,5X10X600 | MODEL N/P/R/S This part replaces 13684-38A20.

44421-13ER0

$10.06

32

HOSE,5X10X600 | MODEL T/V,L:600->225 This part replaces 09352-50823-600.

44421-13ER0

$10.06

33

CLIP

13692-02500

$7.17

34

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

35

JET, PILOT AIR (65)

09492-65005

$11.38

36

SCREW

13602-05A30

$4.35

37

LEVER ASSY This part replaces 13554-38B00.

13554-45C20

$41.63

38

SCREW | MODEL N/P/R This part replaces 02112-05066.

02112-0506B

$1.84

38

SCREW | MODEL S/T/V This part replaces 02112-05063.

02112-0506B

$1.84

39

SCREW

13601-04148

$2.81

40

SCREW, DRAIN | MODEL N/P This part replaces 13247-38B00.

13247-02340

$4.99

40

SCREW, DRAIN | MODEL R/S/T/V This part replaces 13247-13A00.

13247-02340

$4.99

41

ADJUSTER This part replaces 13267-38A10.

13267-39E50

$14.20

42

SPRING

13271-93011

$5.32

43

WASHER

13523-46110

$2.70

44

CLAMP(L:80) | MODEL N/P/R This part replaces 13671-05A20.

09404-06036

$1.74

44

CLAMP(L:80) | MODEL S This part replaces 09404-06415.

09404-06036

$1.74

44

CLAMP(L:80) | MODEL T/V This part replaces 09404-06433.

09404-06036

$1.74

45

SCREW | MODEL N/P/R This part replaces 13602-38A20.

02142-0408B

$1.70

45

SCREW | MODEL S/T/V This part replaces 02142-04083.

02142-0408B

$1.70

46

WASHER | <-13432-37100

13277-37100

$2.15

47

HOSE (5X8X430) | CALIFORNIA ONLYL:430->150 This part replaces 13683-38B00.

13683-38B01

$34.98

48

HOSE, FUEL (PUMP & CARB) | MODEL N/P/R/S This part replaces 13683-38A01.

13683-38E01

$18.02

48

HOSE, FUEL (PUMP & CARB) | MODEL T/V This part replaces 13683-38E00.

13683-38E01

$18.02

49

CLAMP | MODEL N/P/R This part replaces 09401-13408.

09401-13417

$2.26

49

CLAMP | MODEL S This part replaces 09401-13413.

09401-13417

$2.26

49

CLIP | MODEL T/V This part replaces 09401-11408.

09401-11415

$2.23
