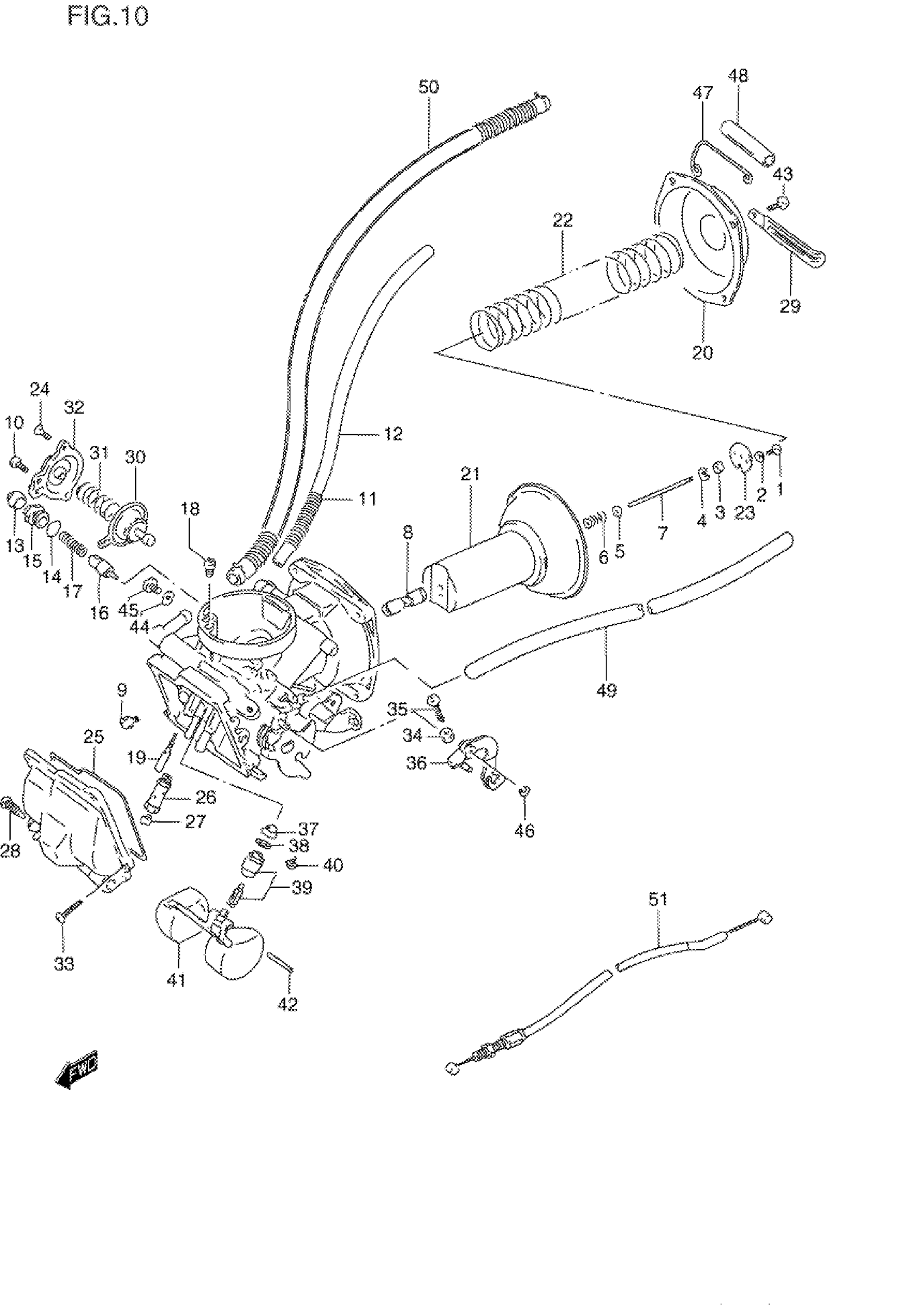

Suzuki VS800GLV (1997) CARBURETOR (FRONT) Diagram

#

Description
Price

CARBURETOR ASSY, FRONT This part replaces 13210-38E10.

13210-38E11

$1,011.88

CARBURETOR ASSY, FRONT | CALIFORNIA ONLY; Includes Item(s) 1 - 49 This part replaces 13210-38E50.

13210-38E51

Unavailable

1

SCREW | MODEL N/P This part replaces 02112-03066.

02112-0306B

$1.59

1

SCREW | MODEL R/S/T/V This part replaces 02112-03063.

02112-0306B

$1.59

2

LOCK WASHER | MODEL N/P This part replaces 08321-21036.

08321-2103B

$1.49

2

LOCK WASHER | MODEL R/S/T/V This part replaces 08321-21033.

08321-2103B

$1.49

3

RING

13387-47010

$7.22

4

E RING

13394-10010

$5.45

5

WASHER

13382-44030

$3.71

6

SPRING

13388-44030

$8.12

7

NEEDLE, JET (5D47-1)

13383-45C20

$19.15

8

JET, NEEDLE (P-2)

09494-00588

Unavailable

9

SCREW

13605-38B00

$7.95

10

SCREW | MODEL N/P This part replaces 02112-04106.

02112-0410A

$1.49

10

SCREW | MODEL R/S/T/V This part replaces 02112-04103.

02112-0410A

$1.49

11

SPRING

13689-38A00

$9.17

12

HOSE,5X10X600 | L:225->185 MODEL N/P/R/S This part replaces 13684-38A20.

44421-13ER0

$10.06

12

HOSE,5X10X600 | L:600->185 MODEL T/V This part replaces 09352-50823-600.

44421-13ER0

$10.06

13

.CAP This part replaces 13681-04010.

13681-04011

$4.93

14

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

15

HOLDER, GUIDE

13418-38A00

$10.23

16

PLUNGER ASSY

13411-01400

$13.30

17

SPRING

13417-08210

$3.56

18

JET, PILOT AIR (65)

09492-65005

$11.38

19

JET, PILOT (40)

09492-40021

$16.78

20

COVER This part replaces 13502-45C10.

13502-38A00

$37.53

21

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

22

SPRING

13503-38B00

$10.69

23

PLATE

13389-37400

$7.08

24

SCREW | MODEL N/P/R This part replaces 13603-38A00.

02122-0410A

$1.49

24

SCREW | MODEL S/T/V This part replaces 02122-04103.

02122-0410A

$1.49

25

O RING

13251-38A00

$6.79

26

HOLDER

13385-05A11

$14.85

27

JET, MAIN (127.5)

09491-25018

$14.76

28

SCREW, DRAIN | MODEL N/P This part replaces 13247-38B00.

13247-02340

$4.99

28

SCREW, DRAIN | MODEL R/S/T/V This part replaces 13247-13A00.

13247-02340

$4.99

29

CLAMP | MODEL N/P/R/S/T This part replaces 09404-06401.

09404-06039

$1.74

29

CLAMP | MODEL V This part replaces 09404-06206.

09404-06039

$1.74

30

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

31

SPRING

13481-45C10

$5.55

32

COVER

13484-38A00

$22.65

33

SCREW

13601-04148

$2.81

34

NUT | MODEL N/P/R This part replaces 13607-05A10.

08310-00047

$2.23

34

NUT | MODEL S/T/V

08310-00047

$2.23

35

SCREW | MODEL N/P/R This part replaces 02112-04306.

02112-0430B

$2.83

35

SCREW | MODEL S/T/V This part replaces 02112-04303.

02112-0430B

$2.83

36

LEVER ASSY

13554-38A00

Unavailable

37

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

38

O RING This part replaces 13374-44080.

13374-35C00

$5.99

39

VALVE ASSY, NEEDLE

13370-39A00

$60.40

40

SCREW

13602-05A10

$3.56

41

FLOAT

13250-38B00

$27.75

42

PIN, FLOAT

13254-20010

$4.28

43

SCREW | MODEL N/P/R This part replaces 13602-05129.

02112-05127

$1.97

43

SCREW | MODEL S/T/V

02112-05127

$1.97

44

WASHER

13523-46110

$2.70

45

SCREW | MODEL N/P/R This part replaces 02112-05066.

02112-0506B

$1.84

45

SCREW | MODEL S/T/V This part replaces 02112-05063.

02112-0506B

$1.84

46

E RING | MODEL N/P/R This part replaces 13298-49000.

13415-38300

$2.08

46

E RING | MODEL S/T/V

13415-38300

$2.08

47

CLIP

13671-38A00

Unavailable

48

HOSE(6X10X600) | MODEL N/P/R This part replaces 13684-38A00.

09352-60104-600

$8.99

48

HOSE(6X10X600) | MODEL S/T/V,L:600->50 This part replaces 09352-60103-600.

09352-60104-600

$8.99

49

HOSE (5X8X430) | CALIFORNIA ONLY This part replaces 13683-38B00.

13683-38B01

$34.98

50

HOSE ASSY, FUEL | MODEL N/P/R This part replaces 13683-38A10.

13683-38A21

$61.07

50

HOSE ASSY, FUEL | MODEL S/T/V This part replaces 13683-38A20.

13683-38A21

$61.07

51

CABLE, ID SYNCRO This part replaces 13641-38A00.

13641-38A01

$19.07
