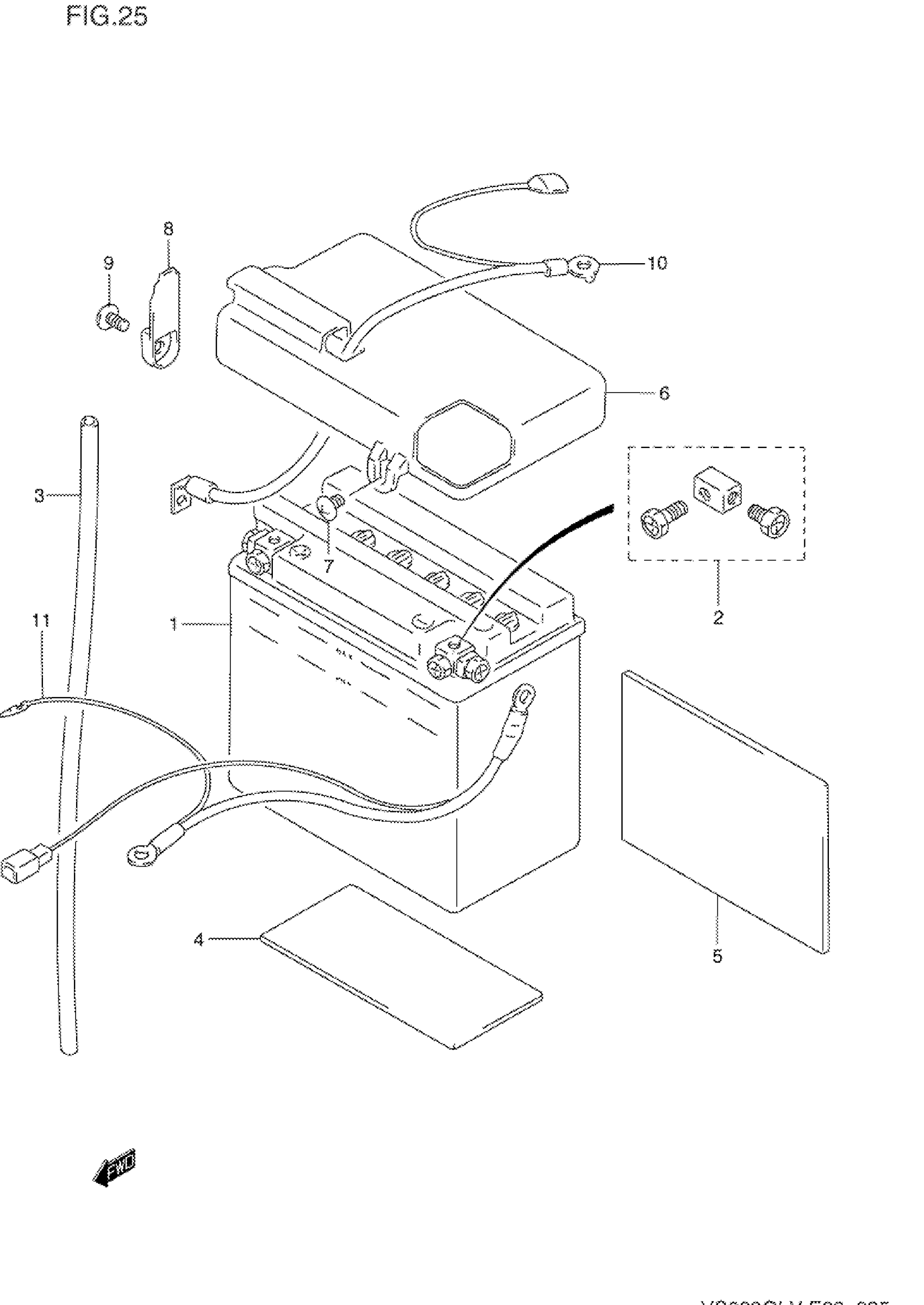

Suzuki VS800GLV (1997) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,16AH) | Includes Item(s) 2 This part replaces 33610-38A31.

33610-38A01

$179.12

2

BOLT SET, TERMINAL

33626-38A01

$18.96

3

HOSE,BATTERY EX | L:780->200 This part replaces 33680-16A10.

33680-16A11

$6.78

4

CUSHION | CUT AS REQUIRED PROFILE(60X130)

33651-37000

$4.48

5

PROTECTOR (20X90)

33652-07D00

$5.64

6

COVER, BATTERY UPPER

33658-38A30

$12.57

7

SCREW | MODEL N/P This part replaces 02142-05084.

02142-0508A

$1.49

7

SCREW | MODEL R/S/T/V This part replaces 02142-05083.

02142-0508A

$1.49

8

COVER, BATTERY TERMINAL

33658-38A40

$2.28

9

SCREW | MODEL N/P This part replaces 02142-05084.

02142-0508A

$1.49

9

SCREW | MODEL R/S/T/V This part replaces 02142-05083.

02142-0508A

$1.49

10

LEAD WIRE, BATTERY (+) | MODEL N/P

33820-39A00

Unavailable

11

LEAD WIRE, BATTERY (-)

33860-38A00

$20.35
