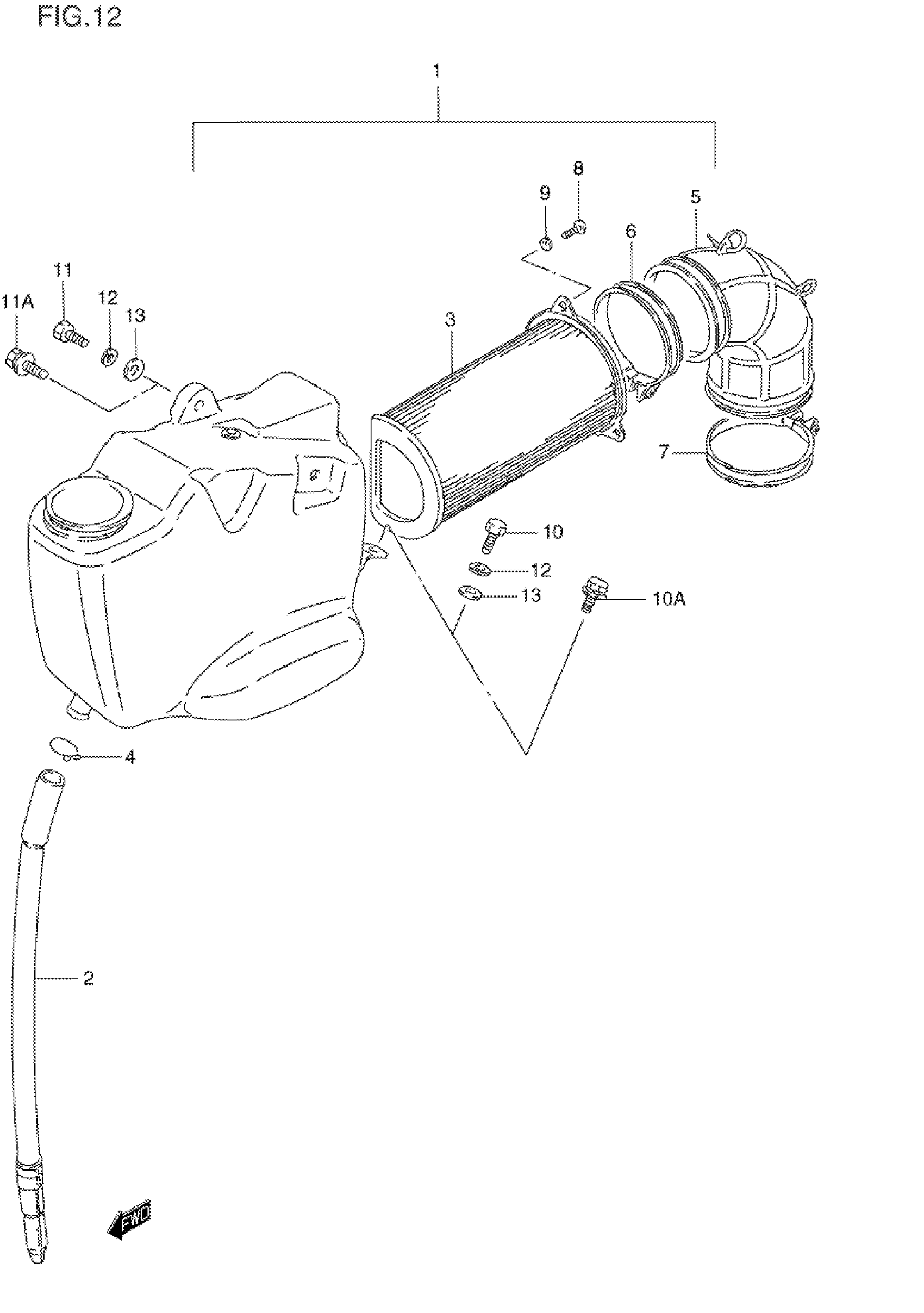

Suzuki VS800GLV (1997) AIR CLEANER (FRONT) Diagram

#

Description
Price

1

CLEANER ASSY, AIR FRONT | MODEL N This part replaces 13700-38A00.

13700-38A01

Unavailable

1

CLEANER ASSY, AIR FRONT | MODEL P/R/S/T/V; Includes Item(s) 2 - 9

13700-38A01

Unavailable

2

TUBE,DRAIN | MODEL N/P/R This part replaces 13870-11413.

13870-11459

$15.51

2

TUBE,DRAIN | MODEL S/T/V This part replaces 13870-11458.

13870-11459

$15.51

3

FILTER ASSY | MODEL N This part replaces 13780-38A00.

13780-38A01

$32.52

3

FILTER ASSY | MODEL P/R/S/T/V

13780-38A01

$32.52

4

CLIP | MODEL N/P/R/S This part replaces 13824-00A00.

09401-13409

$2.12

4

CLIP | MODEL T/V

09401-13409

$2.12

5

TUBE, OUTLET

13881-38A00

Unavailable

6

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

7

CLAMP

09402-58208

$5.36

8

SCREW | MODEL N/P This part replaces 02112-04085.

02112-0408A

$1.49

8

SCREW | MODEL R/S/T/V This part replaces 02112-04083.

02112-0408A

$1.49

9

LOCK WASHER | MODEL N/P This part replaces 08321-21045.

08321-0104A

$1.84

9

LOCK WASHER | MODEL R/S/T/V This part replaces 08321-01043.

08321-0104A

$1.84

10

BOLT, CANISTER | MODEL N/P/R This part replaces 01107-06167.

01500-06167

$1.97

10A

BOLT | MODEL S/T/V This part replaces 01580-06163.

01580-0616A

$2.42

11

BOLT | MODEL N/P/R This part replaces 01107-06207.

01500-06207

$2.28

11A

BOLT, REAR | MODEL S/T/V This part replaces 01580-06203.

01580-0620B

$3.30

12

LOCK WASHER | MODEL N/P/R This part replaces 08321-21067.

08321-01067

$2.13

13

WASHER | MODEL N/P/R This part replaces 08322-21067.

08322-01067

$2.13
