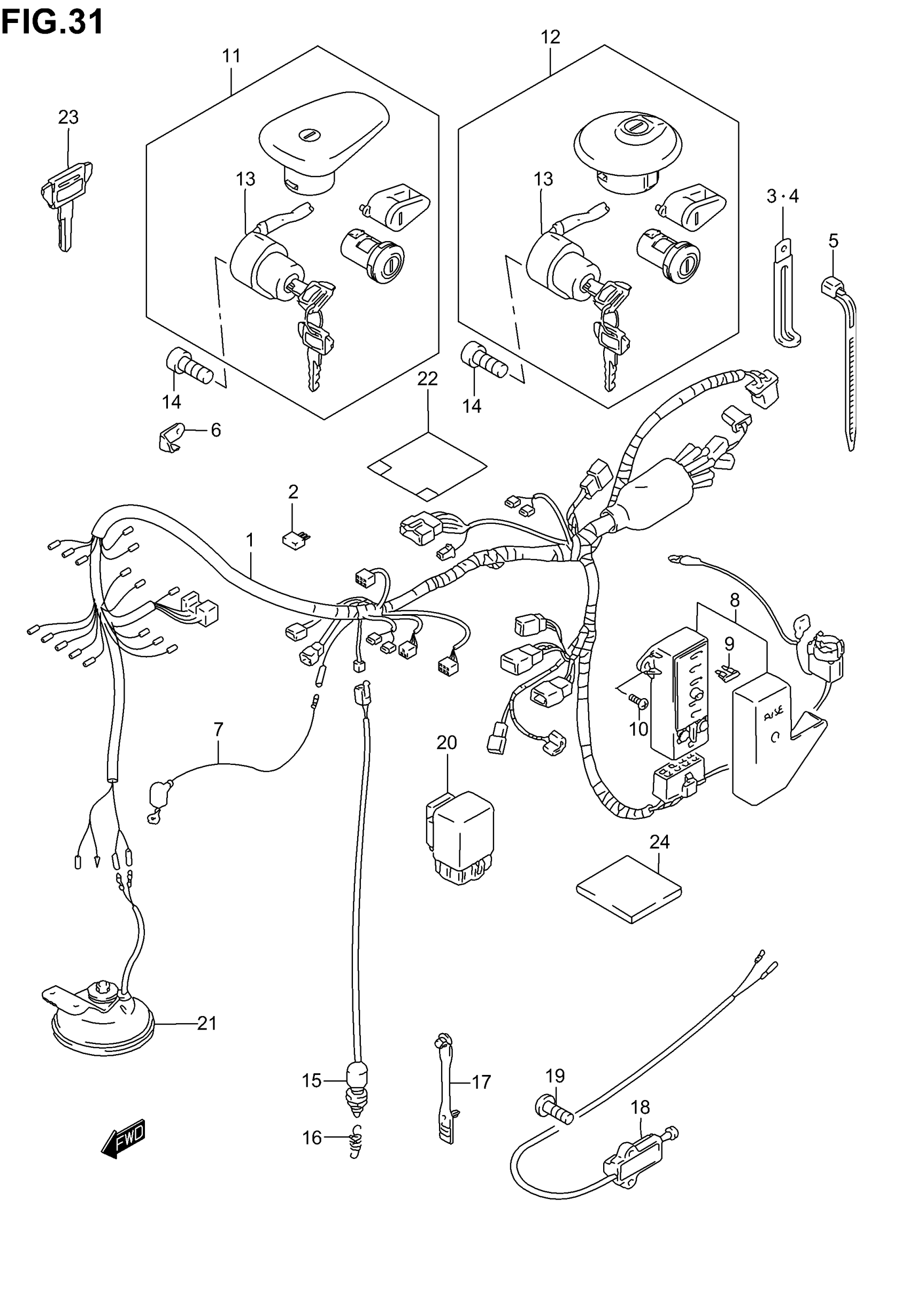

Suzuki VS800GL (2005) WIRING HARNESS (MODEL K1/K2/K3) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-39AC0

Unavailable

2

.DIODE | FOR SIDE STAND This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

4

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

6

PLATE, COUPLER HOLDER

36687-38A00

Unavailable

7

WIRE, WATER TEMP GAUGE

36851-17E00

Unavailable

8

FUSE BOX ASSY | Includes Item(s) 9 - 9

36740-39A00

$101.35

9

FUSE (10A)

09481-10101

$2.07

9

FUSE (25A)

09481-25103

Unavailable

10

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

11

LOCK SET This part replaces 37100-38835.

37100-38836

Unavailable

12

LOCK SET | E33; Includes Item(s) 13

37000-38840

Unavailable

13

SWITCH ASSY, IGNITION

37110-38A04

$100.02

14

BOLT This part replaces 07130-05163.

07130-0516A

$2.41

15

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

16

SPRING

09443-06046

$3.10

17

CLAMP, SIDE STAND

09407-05403

$2.38

18

SWITCH ASSY,SD This part replaces 37840-39A22.

37840-39A23

$109.08

19

SCREW This part replaces 02112-76203.

02112-7620B

$2.78

20

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

21

HORN ASSY

38500-39A00

$137.02

22

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

23

KEY, BLANK (TYPE C) | OPT

37146-03A00

$9.89

23

KEY, BLANK (TYPE D) | OPT

37146-03A10

$11.63

23

KEY, BLANK (TYPE E) | OPT

37146-03A20

$12.10

23

KEY, BLANK (TYPE F) | OPT

37146-03A30

$10.28

24

PROTECTOR

36920-02200

$3.37
