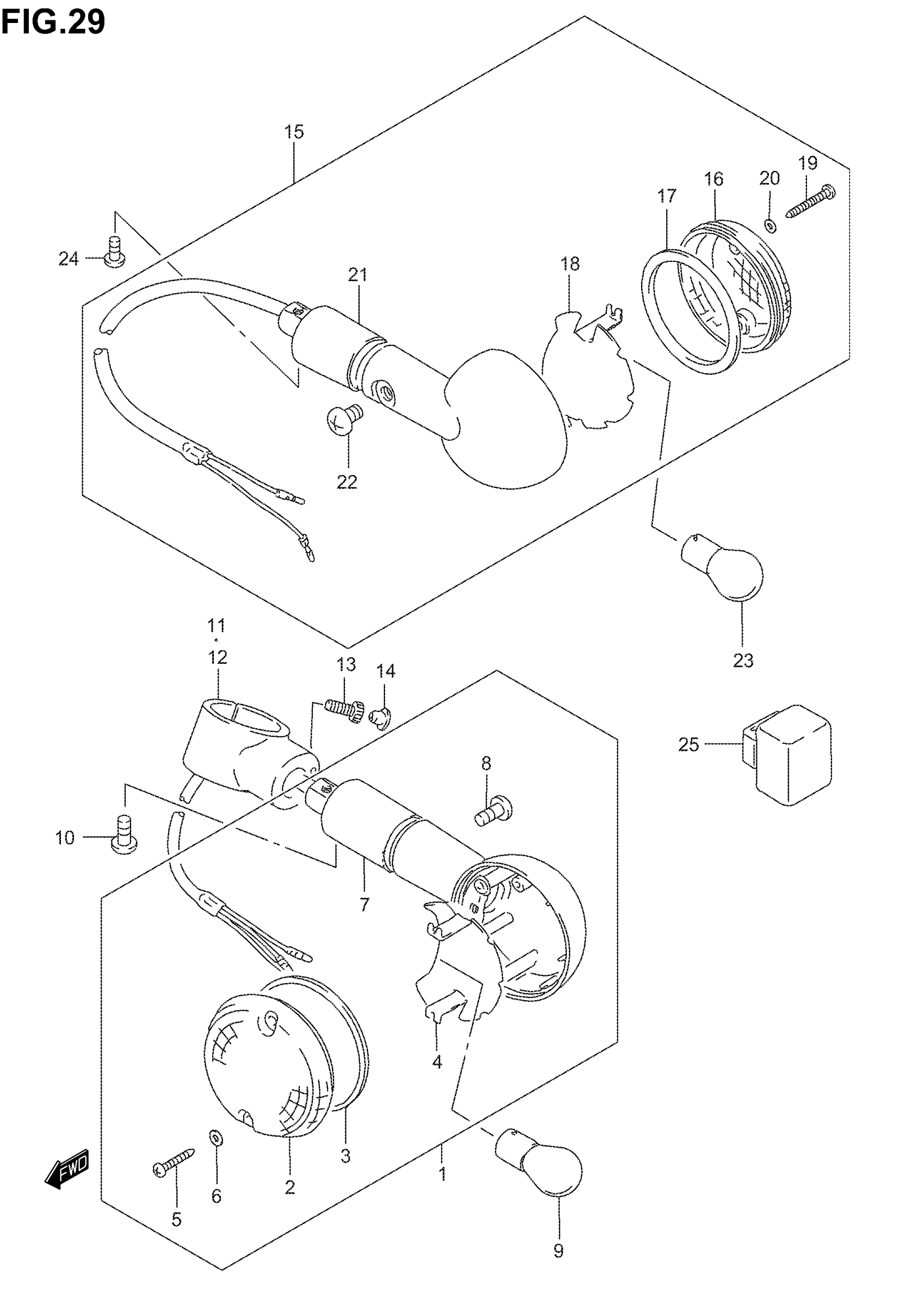

Suzuki VS800GL (2005) TURN SIGNAL LAMP (MODEL K1/K2/K3) Diagram

#

Description
Price

1

LAMP ASSY, FR TURN SIGNAL, L | Includes Item(s) 2 - 8

35601-38A32-999

Unavailable

2

LENS

35612-38A30

$20.22

3

GASKET

35613-38A00

$10.99

4

REFLECTOR

35624-39A00

Unavailable

5

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

6

GASKET

35627-43010

$2.29

7

STAY, TURNSIGNAL LAMP

35619-38A01

$45.50

8

SCREW

35623-38A01

$4.75

9

BULB (12V,21/5W) | MODEL K1

09471-12128

$6.08

9

BULB (12V,21/5W) | MODEL K2/K3 This part replaces 09471-12083.

09471-12128

$6.08

10

SCREW

02142-06107

Unavailable

11

BRACKET, RH

35671-39A00

Unavailable

12

BRACKET, LH

35681-39A00

$89.85

13

BOLT

07130-06167

$4.03

14

CAP

09250-05008

$3.44

15

LAMP ASSY, RR TURN SIGNAL, L | Includes Item(s) 16 - 22

35603-38A02-999

Unavailable

16

LENS

35612-38A01

$13.02

17

GASKET

35613-38A00

$10.99

18

REFLECTOR

35624-39A00

Unavailable

19

SCREW This part replaces 03211-04253.

03211-0425B

$2.95

20

GASKET

35627-43010

$2.29

21

STAY, TURNSIGNAL LAMP

35619-38A01

$45.50

22

SCREW

35623-38A01

$4.75

23

BULB (12V,21W)

09471-12045

$2.95

24

SCREW

02142-06107

Unavailable

25

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$66.55
