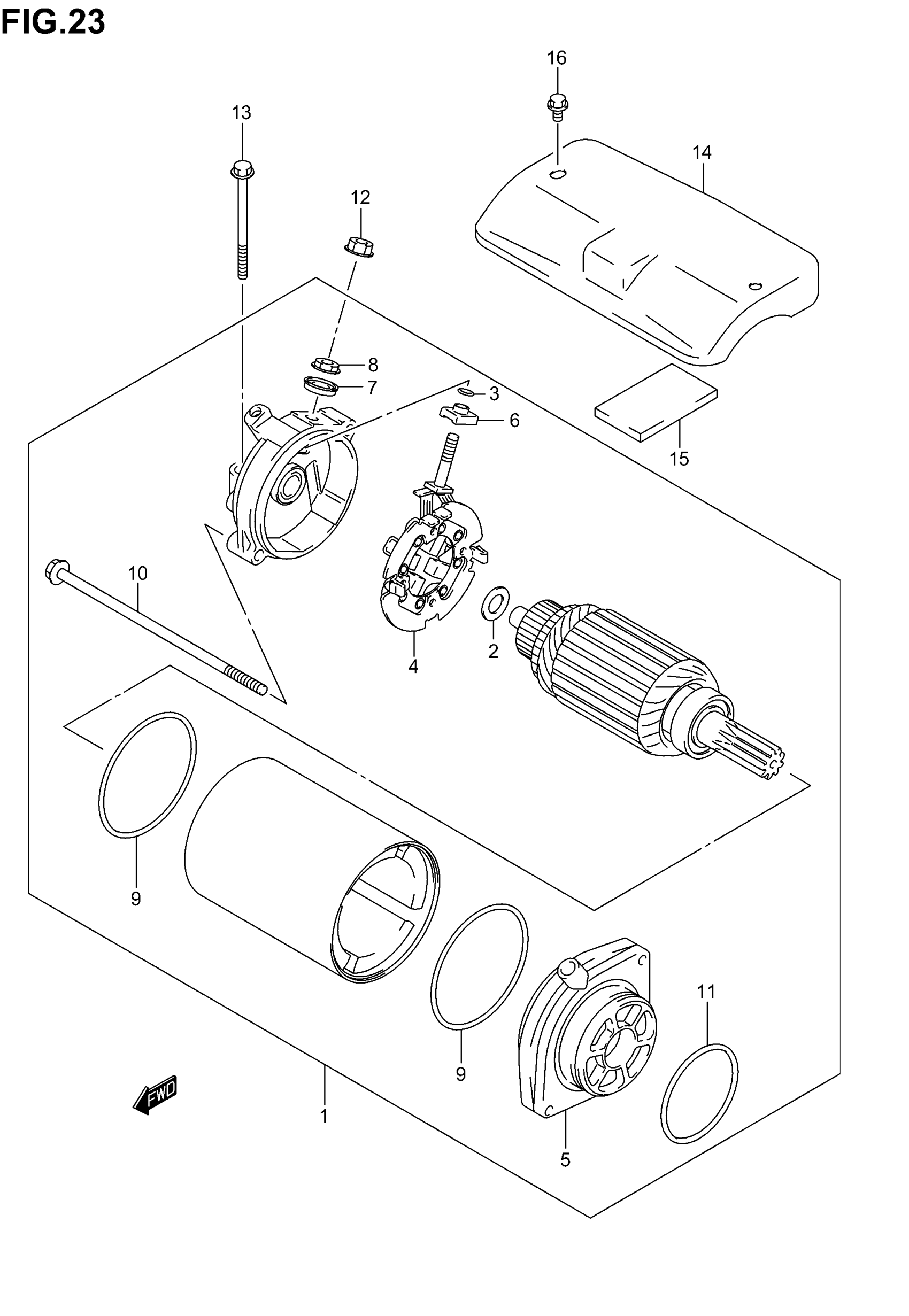

Suzuki VS800GL (2005) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 11 This part replaces 31100-45C01.

31100-45C02

$565.07

2

WASHER

31170-43400

Unavailable

3

O RING

31143-38300

$5.10

4

BRUSH HOLDER SET (-)

31132-45C00

$71.38

5

BRACKET SET

31150-38A00

Unavailable

6

BUSHING

31172-38300

$6.55

7

BUSHING

31173-88C00

Unavailable

8

.NUT

08310-00067

$2.13

9

O RING

31264-44110

$11.87

10

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

11

O RING

31156-38A00

$12.47

12

NUT This part replaces 08361-35068.

08361-3506A

$1.80

13

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

14

COVER, STARTING MOTOR

31210-38A01

Unavailable

15

DAMPER, METER COVER

31212-38A10

Unavailable

16

BOLT

01547-05087

$1.72
