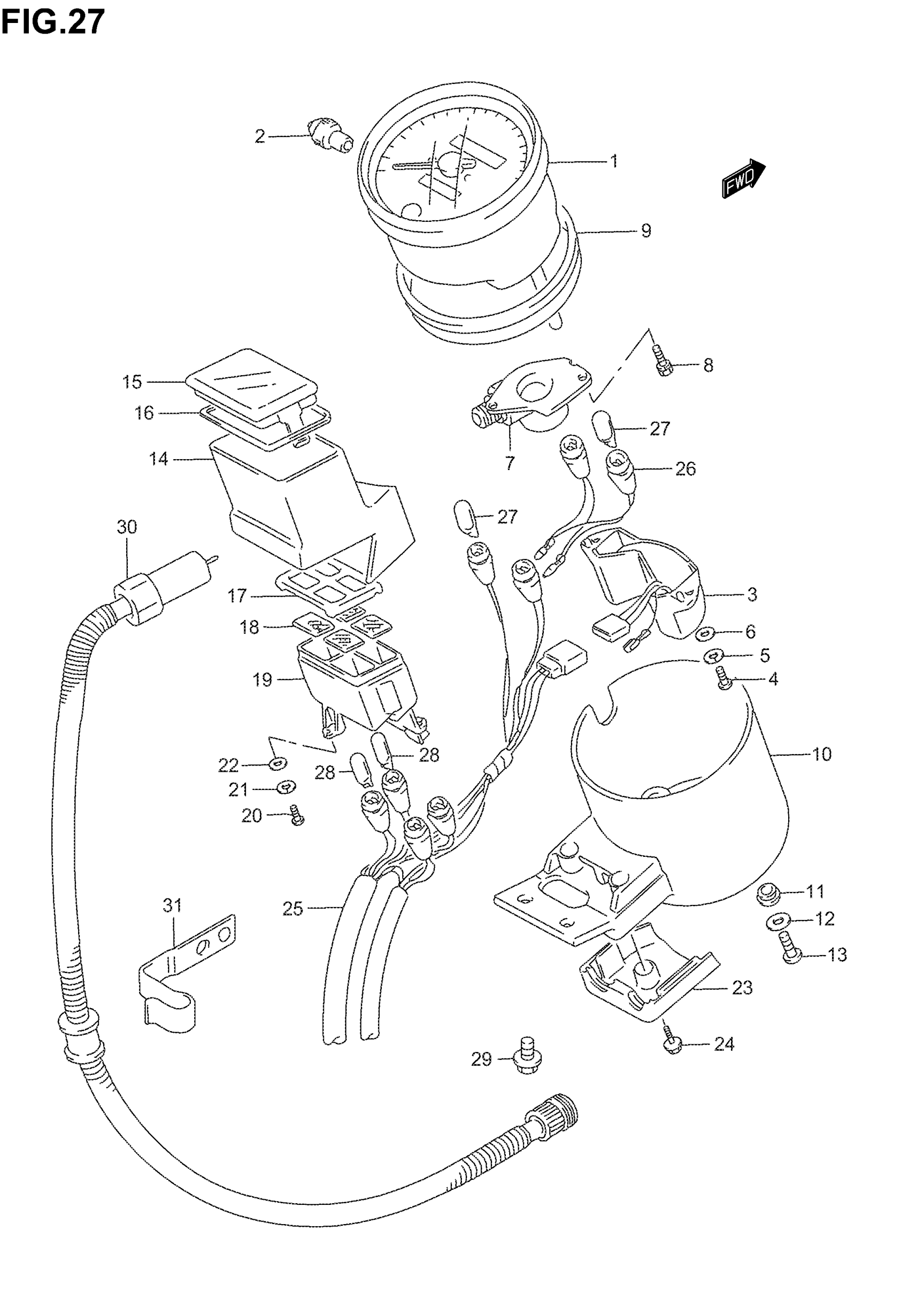

Suzuki VS800GL (2005) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-39AP0

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-39AN0

Unavailable

2

KNOB, TRIP

34124-39A10

$15.92

3

UNIT, WATER TEMP WARNING

34490-39A10

$258.98

4

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

5

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

6

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

7

BOX, METER GEAR

34131-19B00

Unavailable

8

SCREW This part replaces 02112-34103.

02112-3410A

$2.20

9

CUSHION, METER

34288-39A00

$12.21

10

COVER, METER

34193-39A20

$191.15

11

CUSHION This part replaces 34189-05A30.

34189-05A31

$5.32

12

WASHER

34181-38A00

$3.30

13

SCREW

02112-04087

$1.49

14

BOX, PILOT LAMP

36381-39A20

$107.25

15

LENS, PILOT BOX

36393-39AJ0

$16.13

16

CUSHION

36395-38A00

$7.37

17

PLATE, PILOT LENS

36386-38A00

Unavailable

18

LENS SET, PILOT LAMP

36300-38850

Unavailable

19

CASE, PILOT LAMP

36382-38B30

$21.77

20

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

21

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

22

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

23

COVER, PILOT BOX

34152-39A21

$74.08

24

SCREW This part replaces 02112-74083.

02112-7408B

$2.34

25

SOCKET, METER NO.1

34173-39AC0

Unavailable

26

SOCKET, METER NO.2

34174-39AJ0

Unavailable

27

BULB (12V,3W)

09471-12103

$3.83

28

.BULB (12V1.7W)

09471-12108

$3.42

29

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

30

SABLE ASSY,SPEE This part replaces 34910-39A10.

34910-39A11

$114.85

31

GUIDE, METER CABLE

34938-38A02

$10.65
