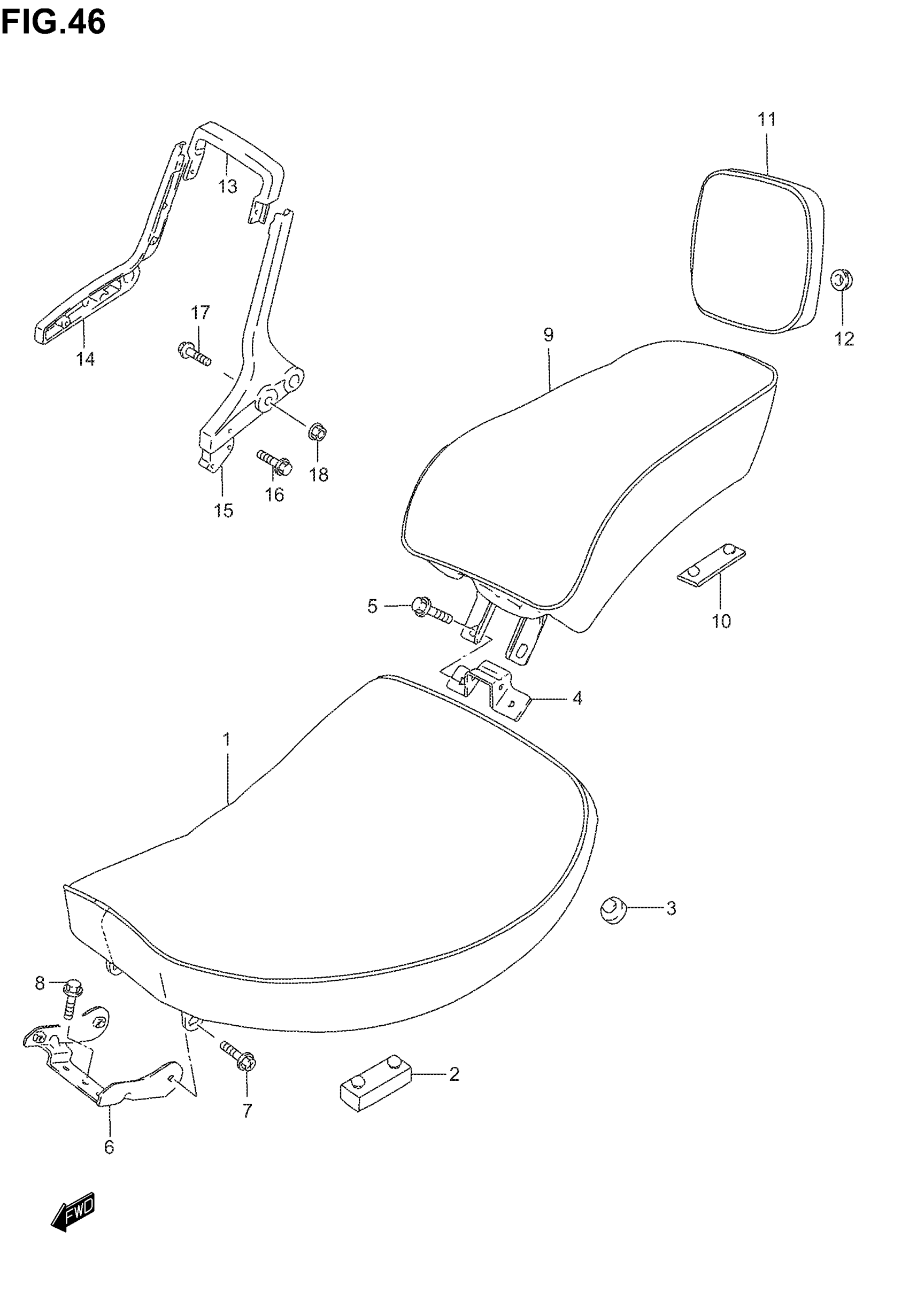

Suzuki VS800GL (2005) SEAT (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

SEAT SET | Includes Item(s) 2 - 3

45100-38A60-E7T

Unavailable

2

CUSHION

45149-43500

$6.85

3

CUSHION

09321-10012

$2.92

4

PLATE, SEAT HOOK REAR

45119-38A00

$8.18

5

BOLT (6X16)

09113-06001

$2.73

6

BRACKET, SEAT FRONT

45210-38A03

$31.70

7

BOLT (6X16)

09113-06001

$2.73

8

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

9

SEAT SET, PILLION | Includes Item(s) 10

45300-38A60-E7T

Unavailable

10

CUSHION

45149-14500

$7.67

11

PAD ASSY, SEAT | Includes Item(s) 12

45350-38A60-E7T

$169.53

12

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

13

HANDLE, PILLION RIDER UPPER

46211-38B01

Unavailable

14

HANDLE,PILLION This part replaces 46212-38A21.

46212-38A50

Unavailable

14

HANDLE, PILLION RIDER RH | E33

46212-38A31

Unavailable

15

HANDLE, PILLION RIDER LH

46213-38A21

Unavailable

15

HANDLE, PILLION RIDER LH | E33

46213-38A31

Unavailable

16

BOLT This part replaces 01580-06353.

01580-0635B

$4.00

17

BOLT, CENTER This part replaces 01580-08453.

01580-0845B

$4.68

18

NUT This part replaces 08316-10083.

08316-1008B

$2.66
