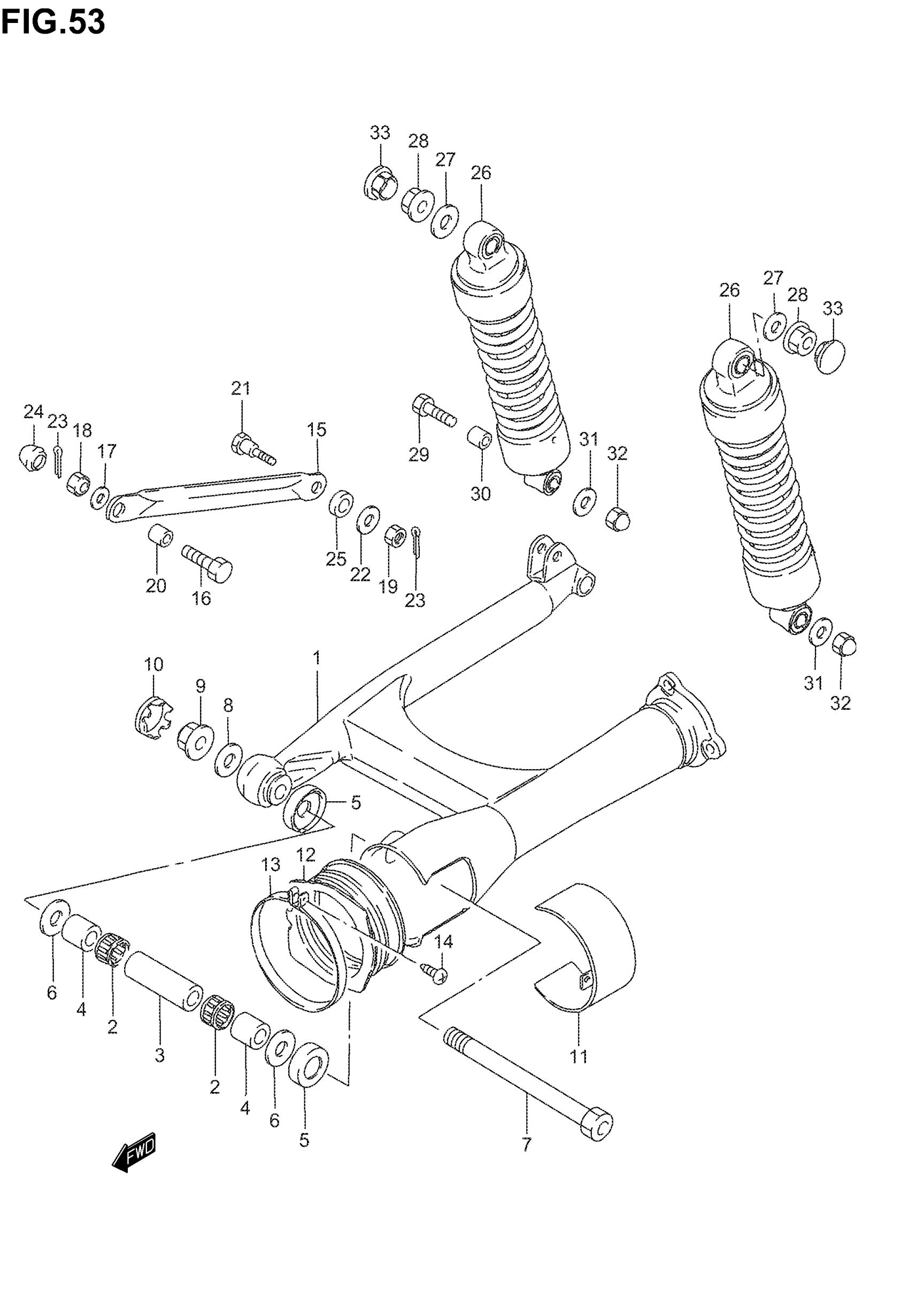

Suzuki VS800GL (2005) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR (BLACK) | MODEL K1/K2/K3

61100-38E01-33J

Unavailable

1

SWINGING ARM, REAR (RED) | MODEL K1

61100-38E01-YC6

Unavailable

1

SWINGING ARM, REAR (RED) | MODEL K2

61100-38E01-19A

Unavailable

1

SWINGING ARM, REAR (SILVER) | MODEL K3/K4

61100-38E01-YD8

Unavailable

1

SWINGING ARM, REAR (BLACK) | MODEL K4/K5

61100-38E01-YAY

Unavailable

1

SWINGING ARM, REAR (GRAY) | MODEL K5

61100-38E01-YU8

Unavailable

2

BEARING (22X29X20)

09263-22022

$22.69

3

SPACER, CENTER

61282-38E01

$19.57

4

SPACER, PIVOT BEARING

61251-32410

$14.20

5

SEAL This part replaces 61262-14A00.

61262-14A01

$6.17

6

THRUST WASHER

08211-16341

$2.39

7

SHAFT, PIVOT

61211-38E00

Unavailable

8

WASHER

09160-17047

$5.00

9

NUT This part replaces 08319-21168.

08319-2116A

$9.00

10

CAP, RH

61222-38A01

$13.35

11

CAP, LH (BLACK) | MODEL K1/K2/K3 This part replaces 61232-38A00-33J.

61232-38A00-YAY

Unavailable

11

CAP, LH (RED) | MODEL K1

61232-38A00-YC6

Unavailable

11

CAP, LH (RED) | MODEL K2

61232-38A00-19A

Unavailable

11

CAP, LH (SILVER) | MODEL K3/K4

61232-38A00-YD8

Unavailable

11

CAP, LH (BLACK) | MODEL K4/K5

61232-38A00-YAY

Unavailable

11

CAP, LH (GRAY) | MODEL K5

61232-38A00-YU8

Unavailable

12

BOOT, PROPELLER SHAFT

61372-38A00

$27.97

13

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

14

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

15

TORQUE LINK, REAR (BLACK)

64310-38A13-019

Unavailable

16

BOLT, FRONT (10X28)

09101-10037

Unavailable

17

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

18

NUT, FRONT

09159-10059

$2.53

19

NUT This part replaces 08310-00103.

08310-0010A

$1.84

20

SPACER (10.2X14X9.60)

09180-10137

$4.25

21

BOLT, REAR (10X41)

09111-10035

$6.23

22

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

23

PIN This part replaces 04111-16208.

04111-1620A

$1.49

24

CAP, FRONT

09251-13002

$4.67

25

CUSHION

09320-12501

$6.83

26

ABSORBER ASSY, REAR SHOCK | MODEL K1

62100-38A70

Unavailable

26

ABSORBER ASSY, REAR SHOCK | MODEL K2/K3/K4/K5

62100-38A53

$470.62

27

WASHER, UPPER (10.5X20X2.3)

09160-10123

$2.12

28

NUT This part replaces 08316-10103.

08316-1010B

$2.66

29

BOLT, LOWER RH (10X39)

09100-10247

$2.98

30

SPACER, LOWER RH (10.2X14X20.7

09180-10139

$3.99

31

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10127.

09160-10093

$2.35

32

NUT

08313-10107

$2.50

33

CAP

95672-24A00

$5.83
