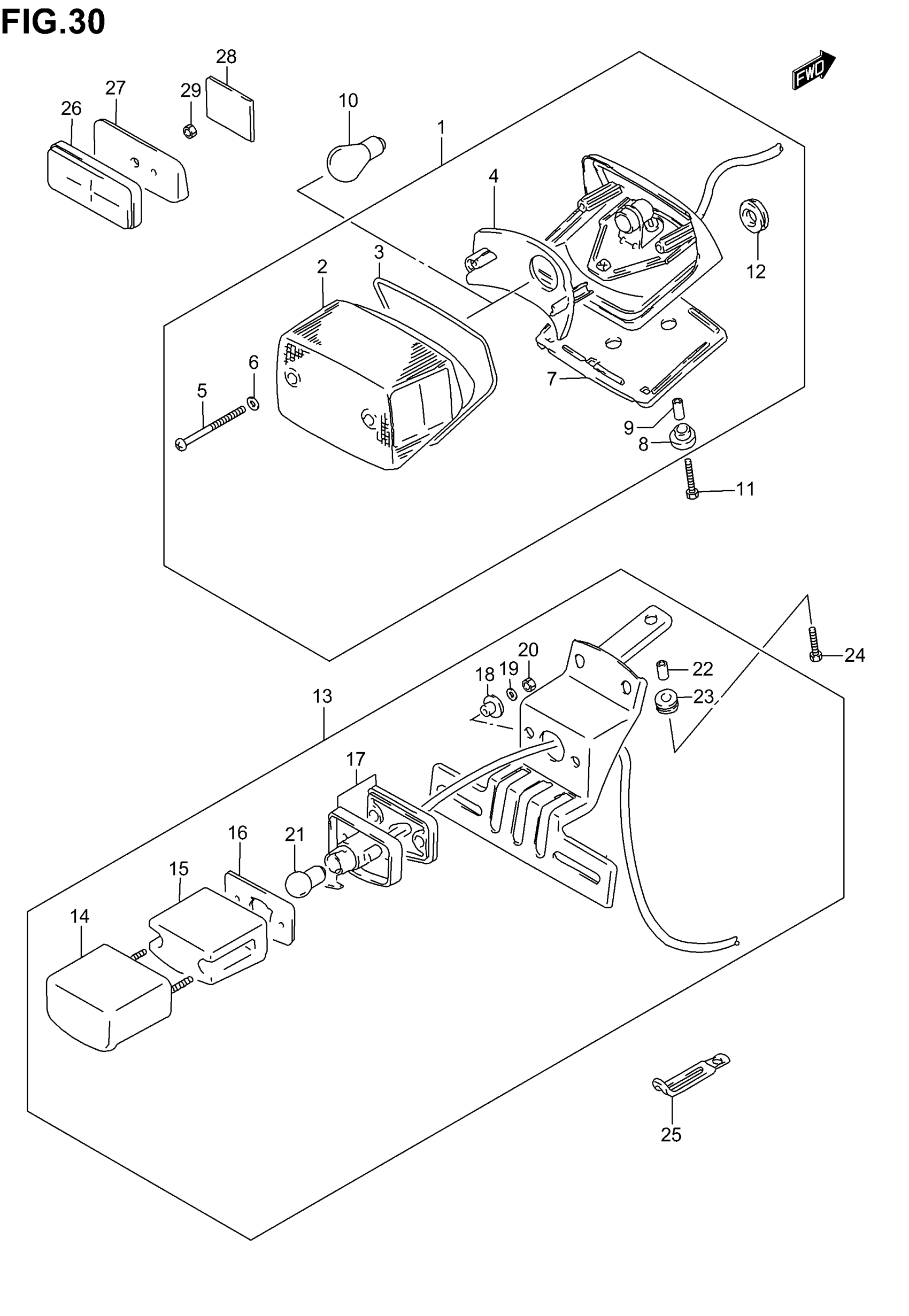

Suzuki VS800GL (2005) REAR COMBINATION LAMP (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-39A00-999

Unavailable

2

LENS

35712-38A30

$63.97

3

GASKET This part replaces 35713-38A00.

35713-31D00

$9.42

4

REFLECTOR

35714-38A00

Unavailable

5

SCREW

35723-44130

$2.22

6

GASKET

35627-43010

$2.28

7

CUSHION

35765-38A00

Unavailable

8

CUSHION

35764-26470

$3.37

9

SPACER

35766-37190

$2.45

10

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

11

BOLT (6X25)

09116-06093

$2.43

12

GROMMET

09308-09004

Unavailable

13

LAMP ASSY, LICENSE | Includes Item(s) 14 - 23

35910-38A33

Unavailable

14

COVER, LICENSE LAMP

35917-38A20

Unavailable

15

LENS

35912-38A30

$20.45

16

GASKET

35913-38A30

$3.37

17

HOUSING, LICENSE LAMP

35915-38A31

Unavailable

18

SPACER

35766-38A30

Unavailable

19

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

20

NUT

08310-00047

$2.23

21

BULB (12V,8W)

09471-12141

Unavailable

22

SPACER

35766-38A00

Unavailable

23

CUSHION

35765-38A30

Unavailable

24

BOLT (6X20)

09116-06010

$2.19

25

CLAMP (L:45)

09404-06429

$1.83

26

REFLEX REFLECTOR, REAR

35970-24D60

$25.98

26

REFLEX REFLECTOR, REAR | E33

35970-44A00

Unavailable

27

SPACER

35977-38B30

Unavailable

28

COVER

68262-38A00

Unavailable

29

NUT This part replaces 08310-00053.

08310-0005A

$1.84

29

NUT | E33 This part replaces 08310-00053.

08310-0005A

$1.84
