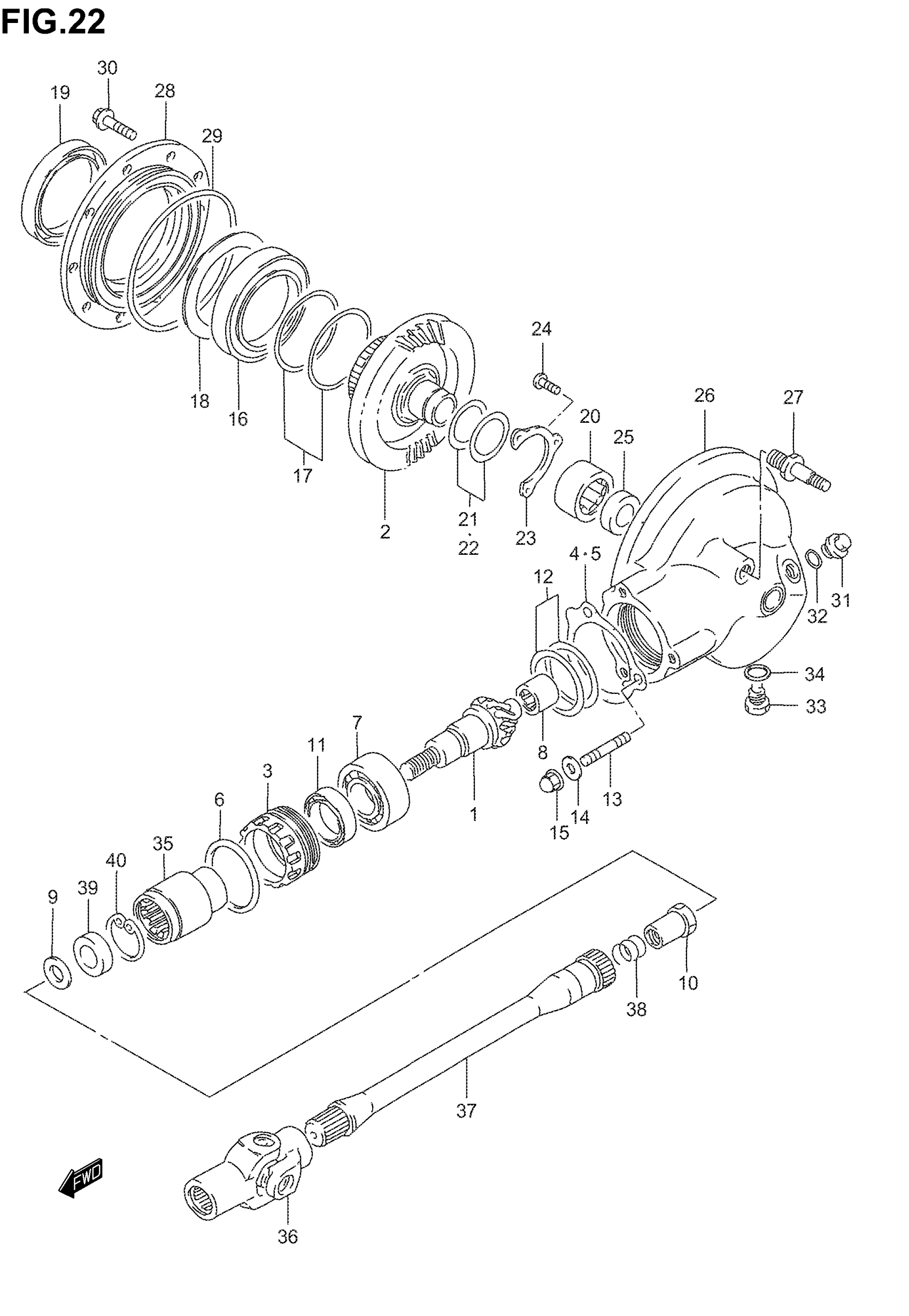

Suzuki VS800GL (2005) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL BEVEL | Includes Item(s) 1 - 35

27300-38836

Unavailable

1

GEAR, DRIVE BEVEL (NT:11)

27311-38A00

$297.98

2

GEAR, DRIVEN BEVEL (NT:34)

27320-45C01

$463.53

3

STOPPER, BEARING

27312-38A00

$72.73

4

PLATE

27313-38A00

$7.37

5

PLATE

27313-38A10

$7.37

6

O RING (D:1.9,ID:61.6)

09280-62002

$3.29

7

BEARING (30X62X23.8)

09267-30005

$119.55

8

BEARING (17X32X16)

09263-17028

$48.78

9

WASHER (16X29X4)

09160-16029

$6.35

10

NUT

09159-16010

$10.00

11

OIL SEAL (38X54X6)

09283-38009

$17.33

12

SHIM SET, FINAL | T:0.3/0.35/0.4/0.5/0.6

27445-38810

$28.18

13

STUD BOLT

09108-10095

$5.72

14

LOCK WASHER

09164-10008

$1.71

15

NUT

09159-10026

$6.20

16

BEARING, RH (70X110X13)

09262-70001

$140.93

17

SHIM SET, DRIVE GEAR BEARING | T:0.35/0.4/0.5/0.6

27327-34810

$38.45

18

PLATE

27328-34200

$7.37

19

OIL SEAL, RH (70X96X16)

09289-70001

$51.76

20

BEARING, LH (32X46X17.7)

09263-32007

$81.08

21

SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/1.35

27326-34820

Unavailable

22

SHIM SET, FINAL DRIVE GEAR | T:1.4/1.45/1.5

27326-34810

Unavailable

23

RETAINER, BEARING

27329-34200

Unavailable

24

SCREW This part replaces 02112-06123.

02112-0612A

$1.49

25

OIL SEAL (30X42X7)

09283-30028

$9.60

26

CASE, FINAL GEAR

27450-38A12

Unavailable

27

STUD BOLT

27481-38A01

$12.47

28

CASE, FINAL GEAR BEARING

27460-07A01

Unavailable

29

O RING (D:3.5,ID:131.6)

09280-00015

$11.03

30

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

31

PLUG, OIL FILLER

09247-18001

$8.83

32

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

33

PLUG (MAGNETO)

09247-14002

$5.24

34

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

35

COUPLING, PROPELLER SHAFT

27172-38A00

$53.04

36

YOKE, UNIVERSAL JOINT This part replaces 27100-38A50.

27100-38A60

$348.15

37

SHAFT, PROPELLER

27151-38A01

$210.85

38

SPRING

09440-18019

$2.82

39

OIL SEAL (28.4X48X15)

09283-30051

$10.49

40

CIRCLIP

09381-40003

$4.64
