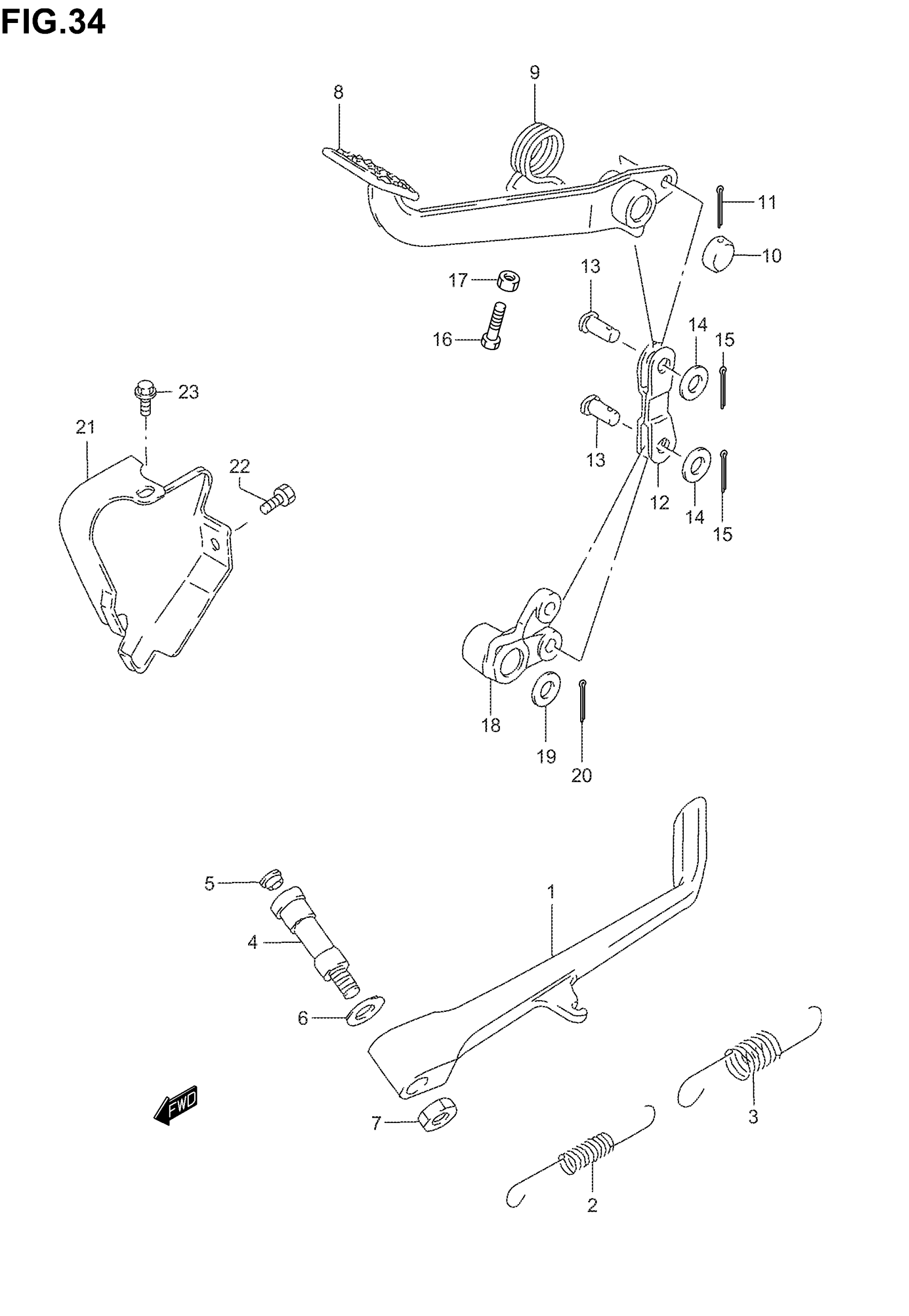

Suzuki VS800GL (2005) PROP STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP This part replaces 42310-38A11.

42310-24B01

$104.97

2

SPRING, INNER

09443-13025

$6.80

3

SPRING, OUTER

09443-18021

$6.23

4

BOLT

42341-38B01

$13.67

5

CAP

43575-34500

$1.72

6

SHIM

09181-15158

$3.03

7

NUT

09140-10044

$3.03

8

PEDAL ASSY, BRAKE

43100-38A31

$124.57

9

SPRING

09448-31034

$6.08

10

CAP

43135-07A02

Unavailable

11

PIN This part replaces 04111-30308.

04111-3030A

$1.49

12

LINK, BRAKE ROD

43230-38A02

Unavailable

13

PIN

09200-08055

$3.50

14

WASHER

08322-01087

$2.13

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

16

BOLT

01500-06207

$2.28

17

.NUT

08310-00067

$2.13

18

ARM, BRAKE PEDAL LH

43260-38A22

Unavailable

19

WASHER

09160-16043

$2.12

20

PIN This part replaces 04111-30308.

04111-3030A

$1.49

21

COVER, BRAKE

43295-38A31

Unavailable

22

BOLT

09128-06044

$1.49

23

BOLT

01547-06107

$1.65
