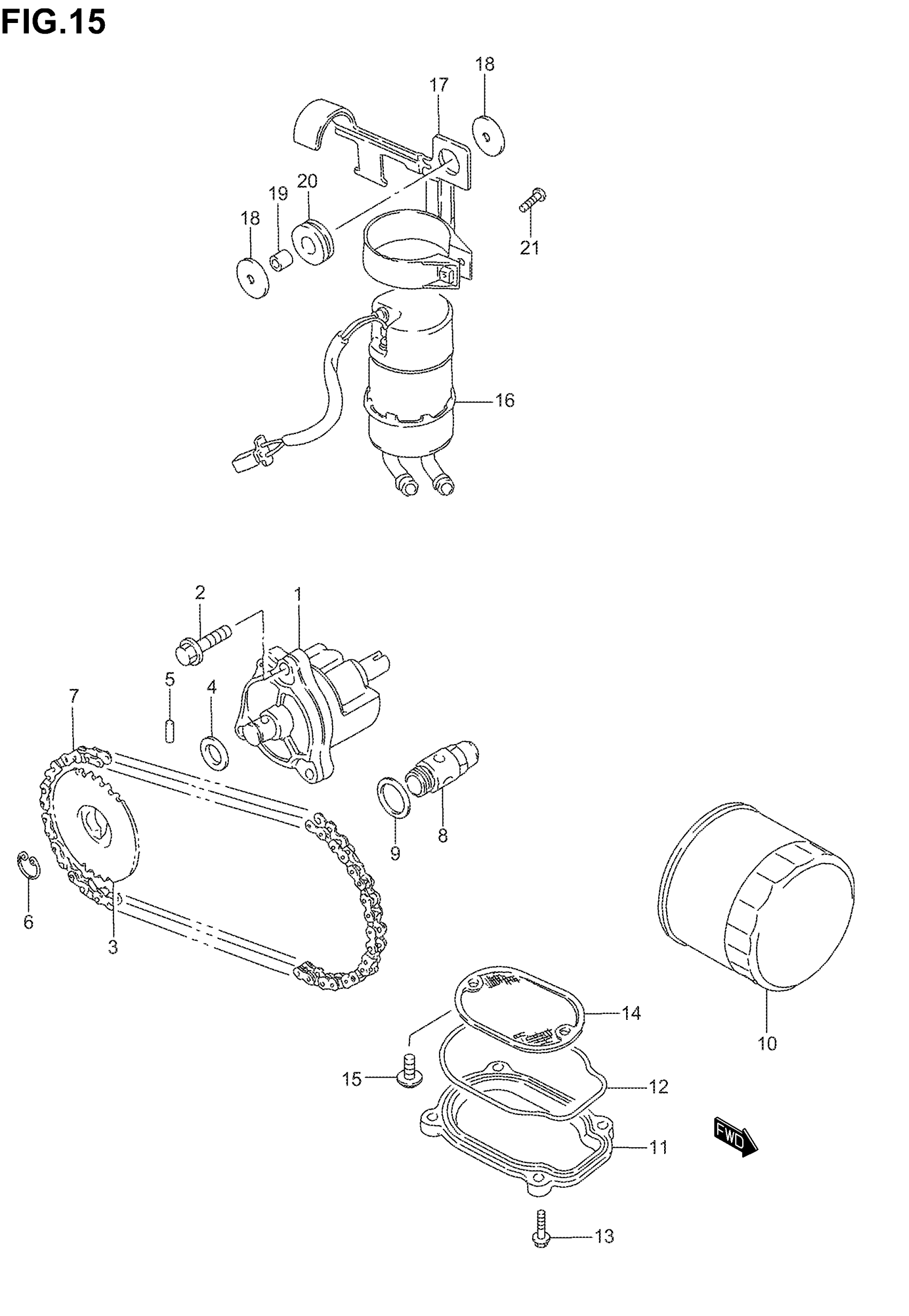

Suzuki VS800GL (2005) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38A01

$224.88

2

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

3

SPROCKET, OIL PUMP DRIVEN

16331-38A10

Unavailable

4

WASHER

09181-12158

$2.26

5

PIN

09261-05006

$1.49

6

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

7

CHAIN, OIL PUMP DRIVE

16310-38A00

$33.93

8

VALVE ASSY, OIL RELIEF | MODEL K1/K2/K3/K4

16440-24A01

Unavailable

8

VALVE ASSY,OIL RELIEF | MODEL K5

16440-17C20

$63.47

9

GASKET

09168-16002

$1.91

10

FILTER, ENGINE OIL | MODEL K1/K2/K3 This part replaces 16510-34E00.

16510-07J00

$13.10

10

FILTER, ENGINE OIL | MODEL K4/K5 This part replaces 16510-03G00-X07.

16510-07J00

$13.10

11

CAP, OIL STRAINER

16523-38A00

$31.70

12

O RING

16528-38A00

$11.77

13

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

14

STRAINER, OIL

16520-38A00

$8.12

15

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

16

PUMP ASSY,FUEL This part replaces 15100-38A10.

15100-38A11

Unavailable

17

BRACKET, FUEL PUMP

15110-38A10

$15.42

18

WASHER | MODEL K1

09160-06134

$1.91

18

WASHER | MODEL K2/K3/K4/K5

09169-06016

$1.65

19

SPACER

09180-06082

$2.18

20

CUSHION

09320-10014

$2.92

21

SCREW This part replaces 02142-04203.

02142-0420B

Unavailable
