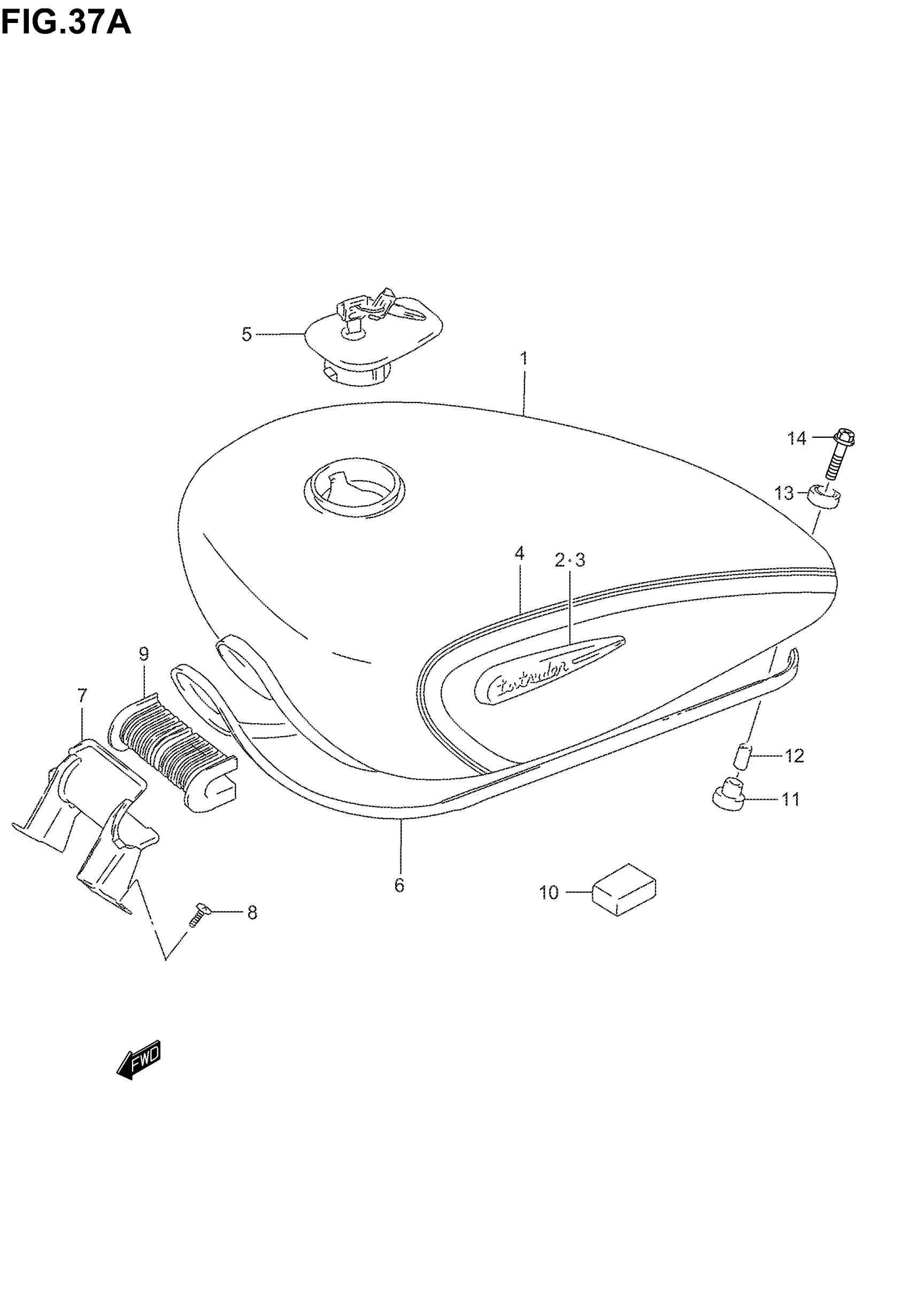

Suzuki VS800GL (2005) FUEL TANK (MODEL K2) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-38EF0-YSX

Unavailable

1

TANK ASSY, FUEL (RED)

44100-38EF0-19A

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-38EG0-YSX

Unavailable

1

TANK ASSY, FUEL (RED) | E33; Includes Item(s) 2 - 4

44100-38EG0-19A

Unavailable

2

EMBLEM, RH

68111-38E00

Unavailable

3

EMBLEM, LH

68121-38E00

Unavailable

4

TAPE SET, FUEL TANK | FOR YSX

68110-38E40-HF1

Unavailable

4

TAPE SET, FUEL TANK | FOR 19A

68110-38E40-HF2

Unavailable

5

CAP SET, FUEL TANK

44200-38820

$108.83

5

CAP SET,FUEL TA | E33 This part replaces 44200-38850.

44200-38852

$94.71

5

CAP SET, FUEL TANK | OPT:WITH OUT E33

44200-38860

Unavailable

5

CAP SET, FUEL TANK | OPT:WITH OUT E33

44200-38870

Unavailable

6

MOLDING, FUEL TANK

68241-04X50-00B

$27.30

7

BRACKET, FRONT (BLACK)

44250-38A01-019

$44.30

8

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

9

CUSHION, FRONT

44511-38A01

$11.60

10

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

SPACER

09180-06273

$3.05

13

CUSHION, REAR UPPER

09320-14013

$2.11

14

BOLT

09136-06095

$3.16
