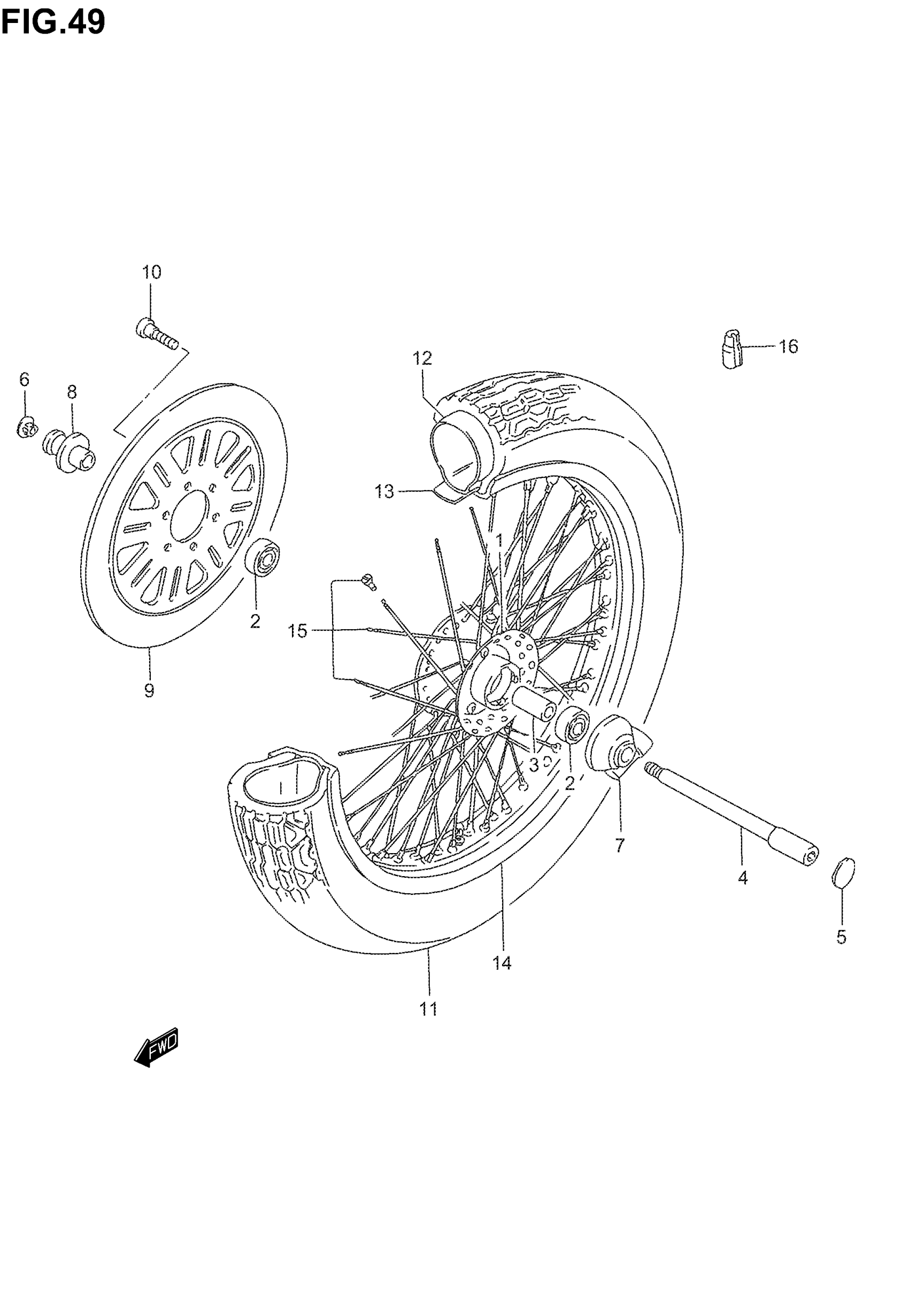

Suzuki VS800GL (2005) FRONT WHEEL Diagram

#

Description
Price

1

HUB ASSY, FRONT | MODEL K1/K2/K3

54110-38B00

Unavailable

1

HUB ASSY, FRONT | MODEL K4/K5

54110-38B10

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING (15.3X21.7X65)

09180-15004

$10.27

4

AXLE, FRONT

54711-38B02

$80.52

5

CAP, FRONT AXLE LH

54792-38B00

$22.33

6

CAP, FRONT AXLE RH

54791-38B01

$5.58

7

BOX ASSY, SPEEDOMETER GEAR

54600-38A30

$160.55

8

SPACER, AXLE

54750-38B00

$27.97

9

DISC, FRONT BRAKE

59211-38B00

$361.30

10

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

11

TIRE, FRONT (100/90-19 57H) (BRIDGESTONE) | MODEL K1

55100-38A80

Unavailable

11

TIRE, FRONT (100/90-19 57H) (BRIDGESTONE) | MODEL K2/K3/K4/K5

55110-38A90

Unavailable

12

TUBE | MODEL K1 This part replaces 55200-44610.

55200-44611

$33.73

12

TUBE ASSY, WHEEL INNER | MODEL K2/K3/K4/K5

55200-38A90

Unavailable

13

PROTECTOR, WHEEL INNER TUBE FRONT | MODEL K1 This part replaces 55261-15010.

55261-15020

$3.15

13

PROTECTOR,WHEEL | MODEL K2/K3/K4/K5 This part replaces 55261-38A90.

55261-38A91

Unavailable

14

RIM, WHEEL (2.15X19) | MODEL K1/K2/K3

55311-38E10

Unavailable

14

RIM, WHEEL (2.15X19) | MODEL K4/K5

55311-38E20

Unavailable

15

SPOKE SET, FRONT WHEEL | MODEL K1/K2/K3

55320-38B00

Unavailable

15

SPOKE SET, FRONT WHEEL | MODEL K4/K5

55320-38B10

Unavailable

16

BALANCER, WHEEL (20G) | MODEL K1/K2/K3/K4 This part replaces 55412-38A00.

55412-41F00

$8.12

16

BALANCER WHEEL (30G) | MODEL K1/K2/K3/K4 This part replaces 55413-38A00.

55413-41F00

$7.50

16

BALANCER, WHEEL NO.2 | MODEL K5

55412-41F00

$8.12

16

BALANCER WHEEL (30G) | MODEL K5

55413-41F00

$7.50
