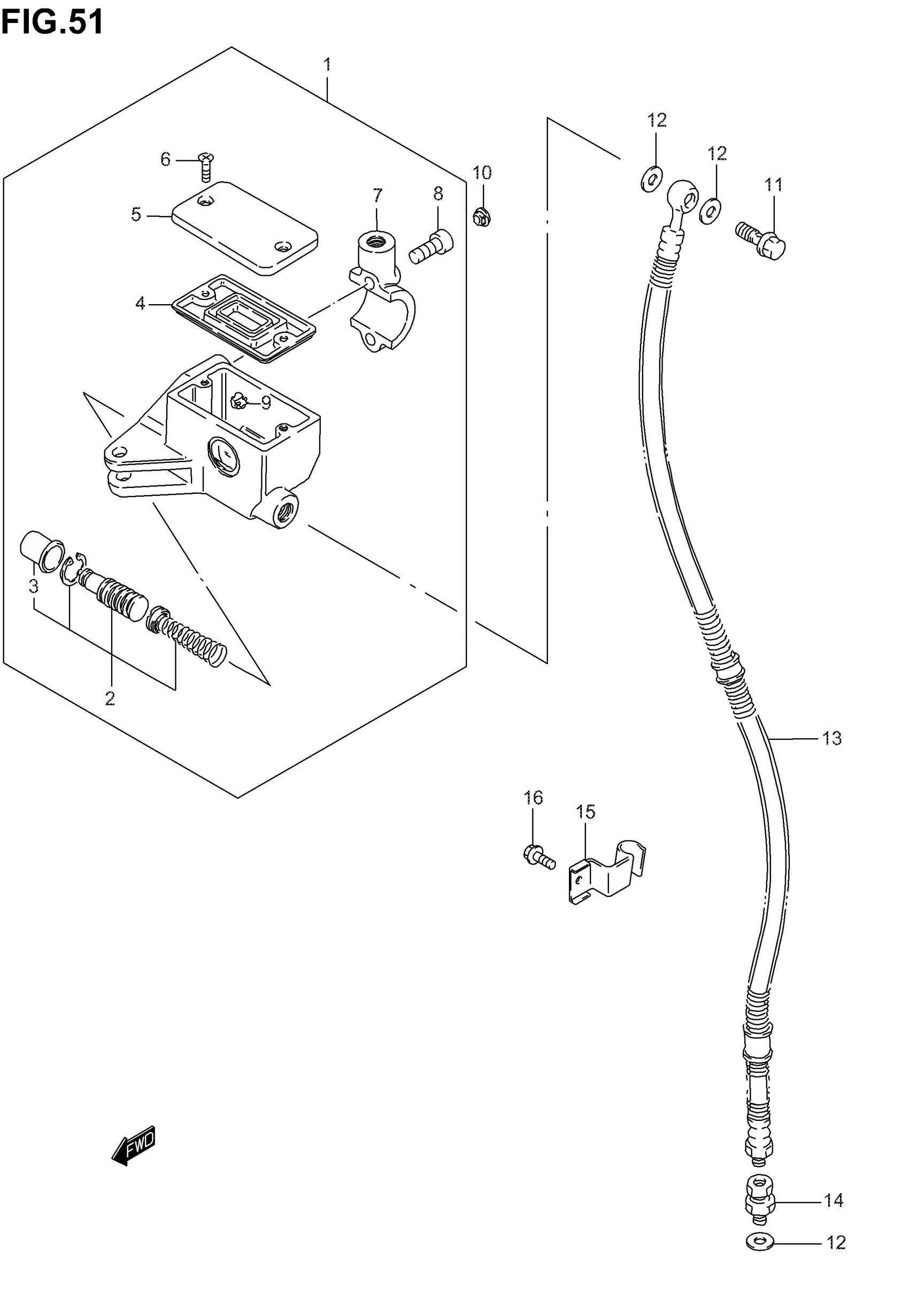

Suzuki VS800GL (2005) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | MODEL K1/K2/K3/K4

59600-24B50

$429.45

1

CYLINDER ASSY, FRONT MASTER | MODEL K5; Includes Item(s) 2 - 9

59600-38AA0

Unavailable

2

PISTON & CUP SET

59600-04810

$45.20

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-49460

$9.78

5

CAP | MODEL K1/K2/K3/K4

59669-24B00

$61.55

5

CAP | MODEL K5

59669-10F00

$71.45

6

SCREW

02122-04127

$1.97

7

HOLDER

59671-38A00

$37.11

8

BOLT

07130-06207

$3.04

9

PROTECTOR

59664-48B00

$11.02

10

CAP

09250-05008

$3.76

11

UNION This part replaces 09360-10039.

09360-10061

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE, FRONT BRAKE | MODEL K1/K2/K3/K4

59480-38A63

$150.93

13

HOSE, FRONT BRAKE | MODEL K5

59480-38A70

Unavailable

14

ADAPTER, BRAKE HOSE

59290-43500

$36.17

15

GUIDE, BRAKE HOSE

59268-38A30

Unavailable

16

BOLT

01547-06107

$1.65
