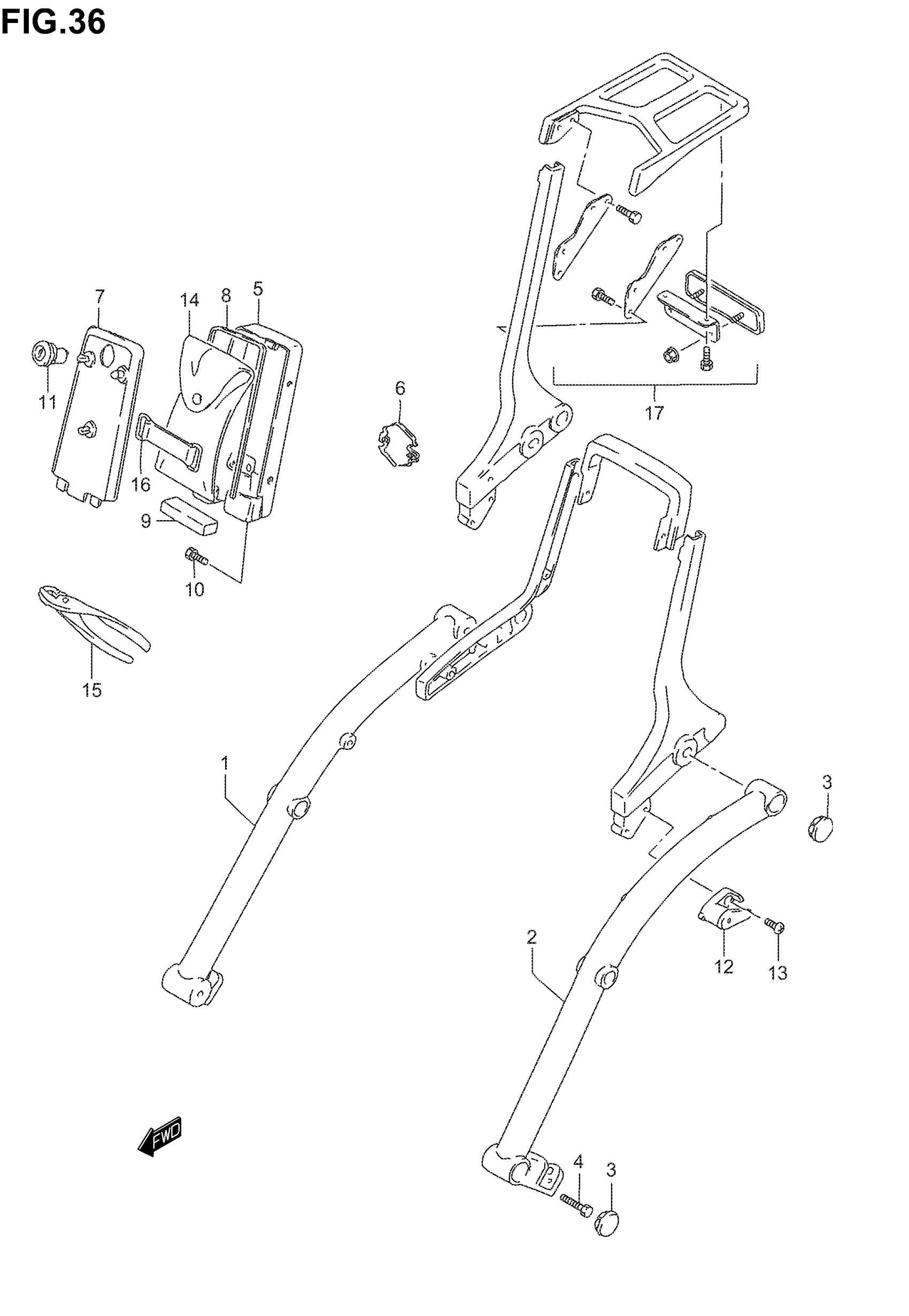

Suzuki VS800GL (2005) FRAME HANDLE GRIP (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

GRIP, FRAME HANDLE RH This part replaces 41610-38A30.

41610-38A20

Unavailable

2

GRIP, FRAME HANDLE LH This part replaces 41620-38A30.

41620-38A20

Unavailable

3

CAP

95672-24A00

$5.83

4

BOLT This part replaces 01580-08203.

01580-0820A

$3.30

5

HOLDER, TOOL REAR (BLACK) | MODEL K1 This part replaces 47430-38B02-22S.

47430-38B11-22S

Unavailable

5

HOLDER, TOOL REAR (BLACK) | MODEL K2/K3/K4

47430-38B11-22S

Unavailable

6

EMBLEM, REAR

68261-38A30

$37.15

7

HOLDER, TOOL FRONT

47441-38B00

$24.42

8

MOLDING, REAR

47437-38B00

$7.95

9

CUSHION, TOOL BACK

47438-38B00

Unavailable

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

LOCK SET, TOOL HOLDER

95700-24831

$71.38

12

LOCK ASSY, HELMET

95700-38821

$66.87

13

SCREW

02112-05127

$1.97

14

TOOL ASSY

09800-21013

Unavailable

15

PLIER, 150

09812-00009

Unavailable

16

BAND, TOOL

09462-00008

$4.77

17

CARRIER SET, SPORT | OPT

46300-38822

Unavailable
