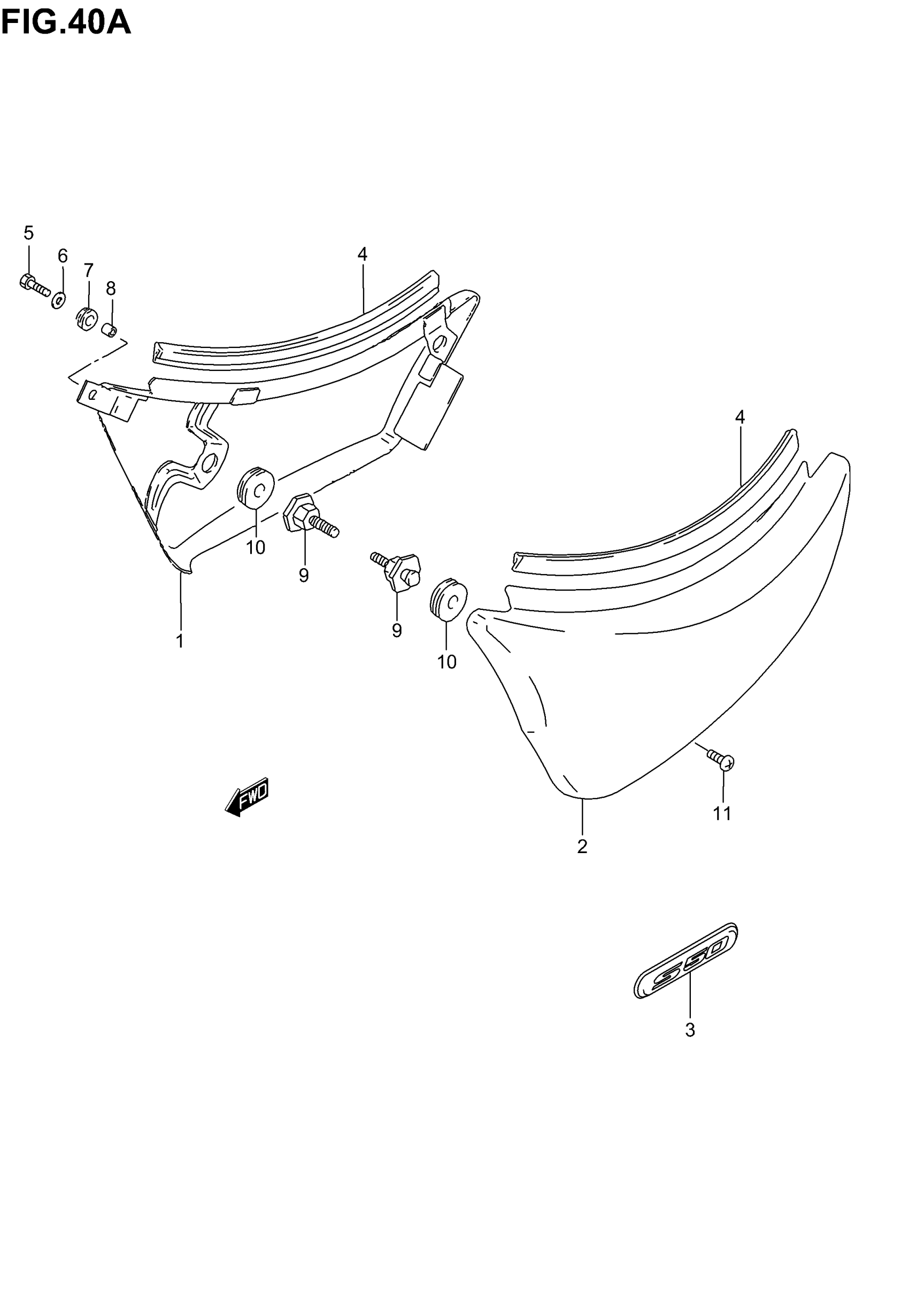

Suzuki VS800GL (2005) FRAME COVER (MODEL K5) Diagram

#

Description

Price

1

COVER, FRAME RH (BLACK)

47100-39AA0-YAY

Unavailable

1

COVER, FRAME RH (GRAY)

47100-39AA0-YU8

Unavailable

2

COVER ASSY,FRAM This part replaces 47200-39AA0-YAY.

47210-38A00-13L

$276.22

2

COVER, FRAME LH (GRAY) | Includes Item(s) 3

47200-39AA0-YU8

Unavailable

3

EMBLEM

68131-39AA0

Unavailable

4

MOLDING

68241-04X50-300

$7.32

5

BOLT, RH

01550-06167

$2.30

6

WASHER

09160-06084

$1.78

7

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

8

SPACER

09180-06246

$2.12

9

BOSS, FRAME COVER

47250-38A01

$6.68

10

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

11

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49
