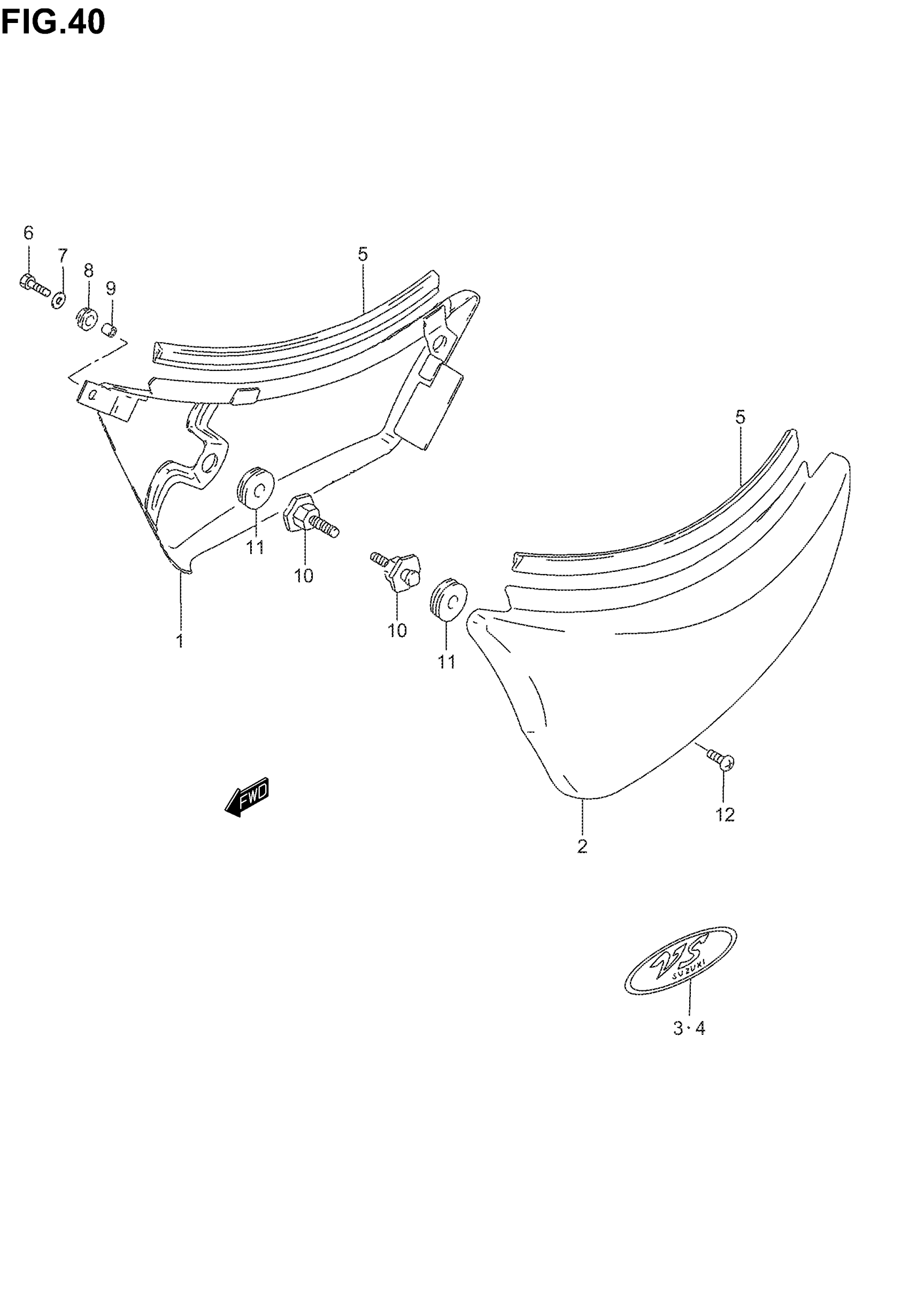

Suzuki VS800GL (2005) FRAME COVER (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

COVER ASSY,FRAM | MODEL K1/K2/K3 This part replaces 47110-38A00-33J.

47110-38A00-13L

$305.78

1

COVER, FRAME RH (RED) | MODEL K1

47110-38A00-YC6

Unavailable

1

COVER, FRAME RH (RED) | MODEL K2

47110-38A00-19A

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K3/K4

47110-38A00-YD8

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL K4

47110-38A00-YAY

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL K1/K2/K3

47210-38A00-33J

$543.26

2

COVER, FRAME LH (RED) | MODEL K1

47210-38A00-YC6

Unavailable

2

COVER ASSY,FRAM | MODEL K2 This part replaces 47210-38A00-19A.

47210-38A00-13L

$276.22

2

COVER, FRAME LH (SILVER) | MODEL K3/K4

47210-38A00-YD8

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL K4

47210-38A00-YAY

Unavailable

3

EMBLEM | MODEL K1 FOR 33J

68131-38E10-M7F

Unavailable

3

EMBLEM | MODEL K1 FOR YC6

68131-38E10-ER7

Unavailable

3

EMBLEM | MODEL K2 FOR 33J

68131-38E10-HF3

Unavailable

3

EMBLEM | MODEL K2 FOR 19A

68131-38E10-ER7

Unavailable

4

EMBLEM | MODEL K3 FOR 33J

68131-38E30-KY1

Unavailable

4

EMBLEM | MODEL K3 FOR YD8

68131-38E30-KY2

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL K4 FOR YD8 This part replaces 68131-38E30-AAZ.

68131-38E40-AAZ

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL K4 FOR YAY This part replaces 68131-38E30-AAY.

68131-38E40-AAY

Unavailable

5

MOLDING

68241-04X50-300

$7.32

6

BOLT, RH

01550-06167

$2.30

7

WASHER

09160-06084

$1.78

8

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

9

SPACER

09180-06246

$2.12

10

BOSS, FRAME COVER

47250-38A01

$6.68

11

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

12

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49
