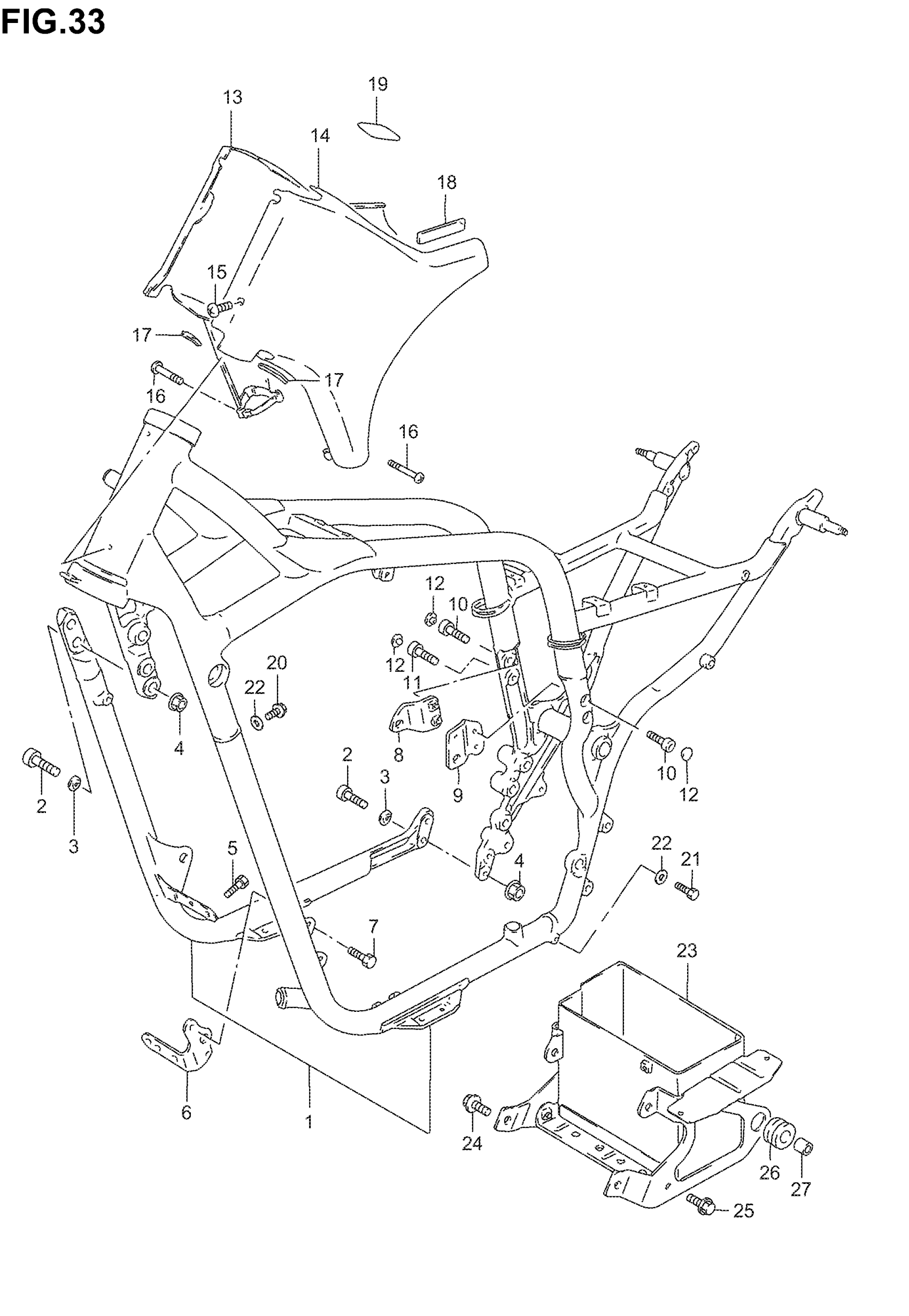

Suzuki VS800GL (2005) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL K1/K2/K3

41101-39813-33J

Unavailable

1

FRAME SET (RED) | MODEL K1

41101-39813-YC6

Unavailable

1

FRAME SET (RED) | MODEL K2

41101-39813-19A

Unavailable

1

FRAME SET (SILVER) | MODEL K3/K4

41101-39813-YD8

Unavailable

1

FRAME SET (BLACK) | MODEL K4/K5

41101-39813-YAY

Unavailable

1

FRAME SET (GRAY) | MODEL K5; Includes Item(s) 2 - 5

41101-39813-YU8

Unavailable

2

BOLT, REAR

09106-10019

$3.50

3

WASHER

09164-10010

$4.83

4

NUT This part replaces 08319-31103.

08319-3110A

$2.73

5

BOLT This part replaces 01551-08203.

01551-0820A

$2.90

6

PLATE, NO.1 LH (BLACK)

41920-38A00-019

Unavailable

7

BOLT This part replaces 07130-08163.

07130-0816A

$3.16

8

PLATE, NO.1 LH (BLACK)

41950-38A11-019

Unavailable

9

PLATE, NO.3 LH (BLACK)

41960-38A10-019

Unavailable

10

BOLT, UPPER

09106-08070

$5.88

11

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

12

CAP

09250-06004

$1.49

13

COVER, FRAME HEAD RH (BLACK) | MODEL K1/K2/K3

47350-38A01-33J

Unavailable

13

COVER, FRAME HEAD RH (RED) | MODEL K1

47350-38A01-YC6

Unavailable

13

COVER,FRAME HEA | MODEL K2 This part replaces 47350-38A01-19A.

47350-38A01-13L

Unavailable

13

COVER, FRAME HEAD RH (SILVER) | MODEL K3/K4

47350-38A01-YD8

Unavailable

13

COVER, FRAME HEAD RH (BLACK) | MODEL K4/K5

47350-38A01-YAY

Unavailable

13

COVER, FRAME HEAD RH (GRAY) | MODEL K5

47350-38A01-YU8

Unavailable

14

COVER, FRAME HEAD LH (BLACK) | MODEL K1/K2/K3

47360-38A01-33J

Unavailable

14

COVER, FRAME HEAD LH (RED) | MODEL K1

47360-38A01-YC6

Unavailable

14

COVER, FRAME HEAD LH (RED) | MODEL K2

47360-38A01-19A

Unavailable

14

COVER, FRAME HEAD LH (SILVER) | MODEL K3/K4

47360-38A01-YD8

Unavailable

14

COVER, FRAME HEAD LH (BLACK) | MODEL K4/K5

47360-38A01-YAY

Unavailable

14

COVER, FRAME HEAD LH (GRAY) | MODEL K5

47360-38A01-YU8

Unavailable

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

16

SCREW This part replaces 02112-04253.

02112-0425B

$2.34

17

MOLDING, HEAD COVER

68241-04X50-300

$7.32

18

CUSHION, FRAME HEAD COVER

33652-07D00

$5.64

19

TAPE, FRAME HEAD COVER

47358-38A00

Unavailable

20

BOLT, AIR DUCT

17568-50F00

$4.76

21

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

22

GASKET

09168-06026

$3.10

23

HOLDER, BATTERY

41540-38A12

$129.45

24

BOLT This part replaces 01551-10163.

01551-1016A

$3.85

25

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

26

CUSHION

09320-12031

$2.34

27

SPACER

09301-08009

$5.08
