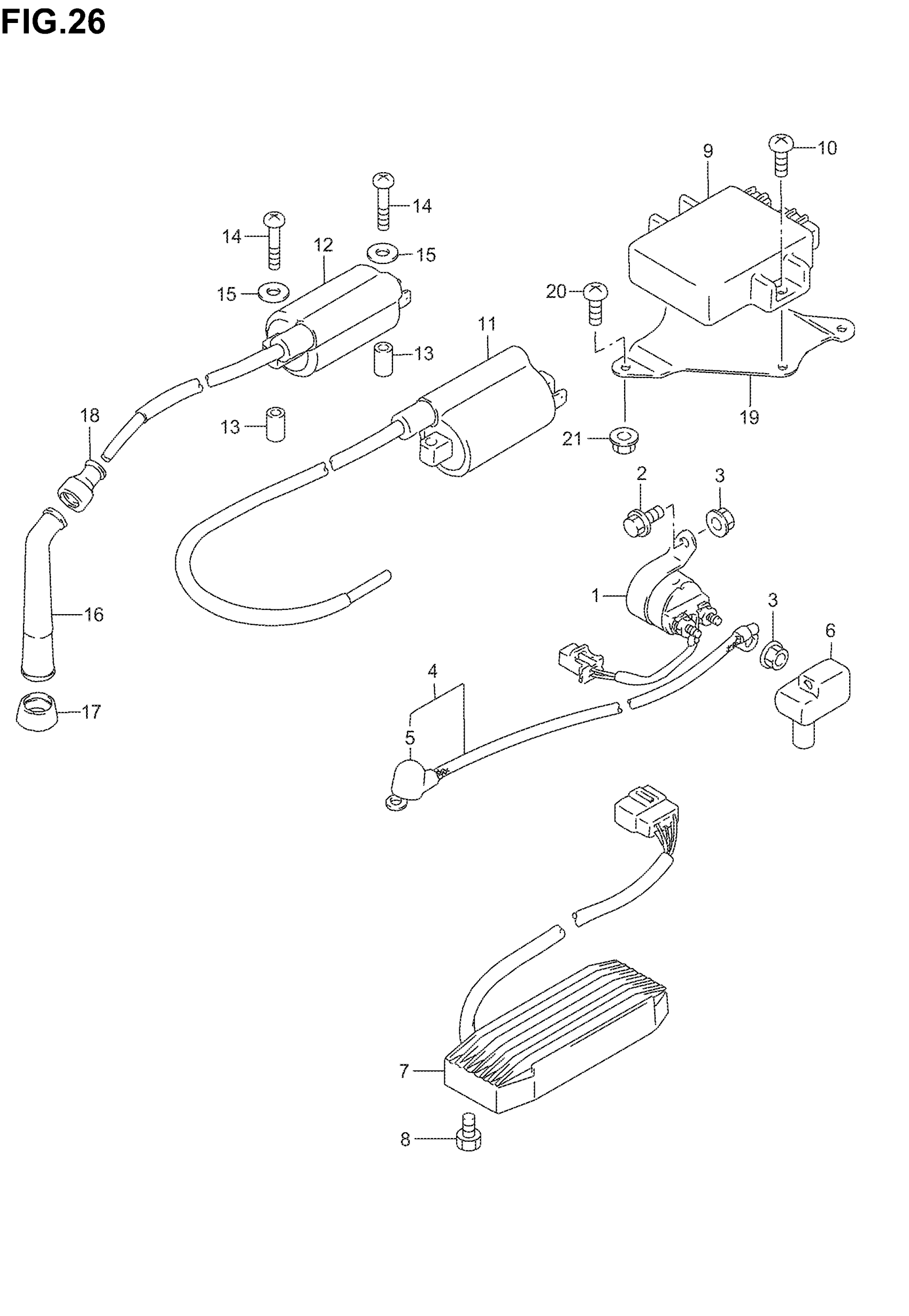

Suzuki VS800GL (2005) ELECTRICAL (MODEL K1/K2/K3/K4) Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-15501

$97.79

2

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

3

NUT This part replaces 08361-35068.

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 5

33850-38A00

$24.42

5

CAP, STARTER MOTOR

31861-48B10

$6.55

6

CAP, STARTER RELAY

31861-38A00

$7.87

7

RECTIFIER ASSY

32800-12E01

$320.45

8

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

9

IGNITER UNIT

32900-38A31

Unavailable

10

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

11

COIL, IGNITION (CORD L:300) | REAR

33410-38A11

$157.58

12

COIL, IGNITION (CORD L:520) | FRONT

33420-38A11

$157.58

13

SPACER (6.4X10X19)

09180-06144

$4.19

14

SCREW (5X38)

09125-05053

Unavailable

15

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

15

WASHER, FRONT | E33 This part replaces 08322-01053.

08322-0105A

$1.84

16

CAP, SPARK PLUG

33510-11410

$25.95

17

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

18

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

19

PLATE, IGNITER FITTING

32910-38A10

Unavailable

20

SCREW This part replaces 02112-36123.

02112-3612A

$2.06

21

NUT This part replaces 08316-20063.

08316-2006A

$2.63
