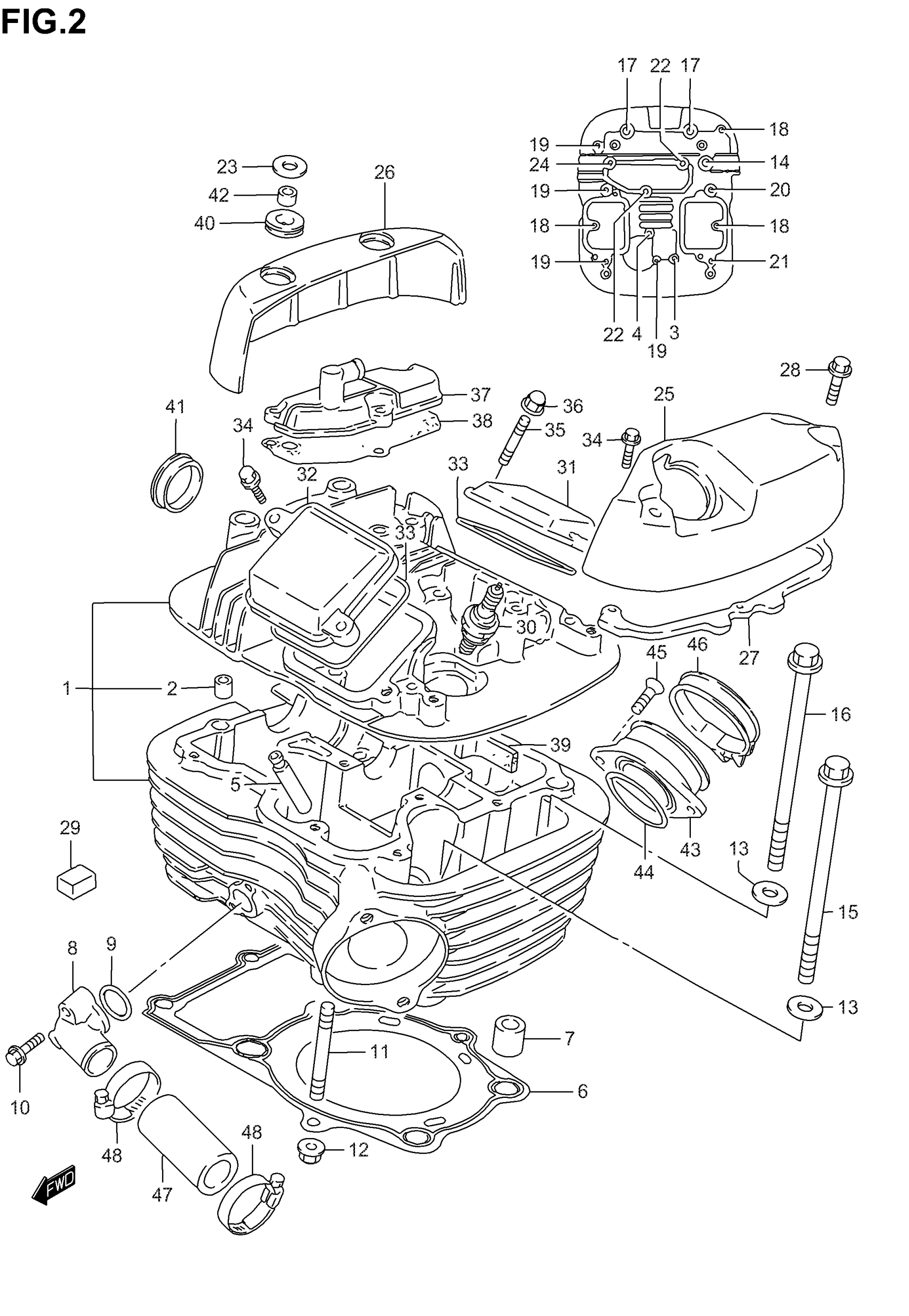

Suzuki VS800GL (2005) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | MODEL K1/K2/K3/K4

11103-39A20

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL K5; Includes Item(s) 2 - 4

11103-39A50

Unavailable

2

PIN

09206-11004

$5.36

3

BOLT (6X50)

09103-06101

$2.16

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$40.73

6

GASKET, CYLINDER HEAD REAR

11142-45C00

$56.84

7

PIN

04211-13189

$2.19

8

UNION, CYLINDER HEAD WATER

11169-45C10

Unavailable

9

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

10

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

11

STUD BOLT (L:40)

09108-08144

$3.20

12

NUT This part replaces 08316-10083.

08316-1008B

$2.66

13

WASHER

09160-10039

$2.26

14

BOLT (8X140)

09103-08040

$5.52

15

BOLT (10X155)

09103-10133

$9.48

16

BOLT (10X165)

09103-10134

$9.48

17

BOLT (8X245)

09103-08180

Unavailable

18

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

19

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

20

BOLT This part replaces 07120-06303.

07120-0630B

$3.49

21

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

22

BOLT (6X55)

09103-06102

$2.10

23

WASHER

09160-08130

$2.03

24

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

25

CAP, HEAD COVER LH

11173-38A03

Unavailable

26

CAP, HEAD COVER RH

11174-38A02

Unavailable

27

CUSHION, HEAD COVER CAP

11273-38A01

$11.07

28

BOLT

01244-06357

$3.85

29

PAD, RUBBER

11152-38A00

$3.37

30

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$3.03

30

SPARK PLUG (ND,X24EPR-U9)

09482-00335

$5.36

30

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.32

30

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.32

30

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$3.11

30

SPARK PLUG (ND,X27EPR-U9) | OPT

09482-00331

$5.28

31

CAP, INSPECTION IN

11175-38A11

$23.07

32

CAP, INSPECTION EX

11176-38A11

$23.07

33

GASKET, INSPECTION CAP

11177-38A00

$4.48

34

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

35

STUD BOLT

09108-06102

$4.08

36

NUT This part replaces 08313-20063.

08313-2006A

$1.97

37

COVER, BREATHER

11186-38A02

Unavailable

38

GASKET, BREATHER COVER

11187-38A02-H17

$7.98

39

PLATE, HEAD COVER

11179-38A00

Unavailable

40

CUSHION

09320-13015

$2.85

41

PLUG, CYLINDER HEAD

09241-30004

$6.60

42

BUSH

09301-08007

$6.80

43

PIPE, INTAKE REAR | Includes Item(s) 44

13102-45C00

$36.41

44

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

45

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

46

CLAMP, INTAKE PIPE

09402-52501

$10.90

47

HOSE, CYLINDER HEAD JOINT

17854-38A00

$9.17

48

CLAMP

09402-28511

$6.88
