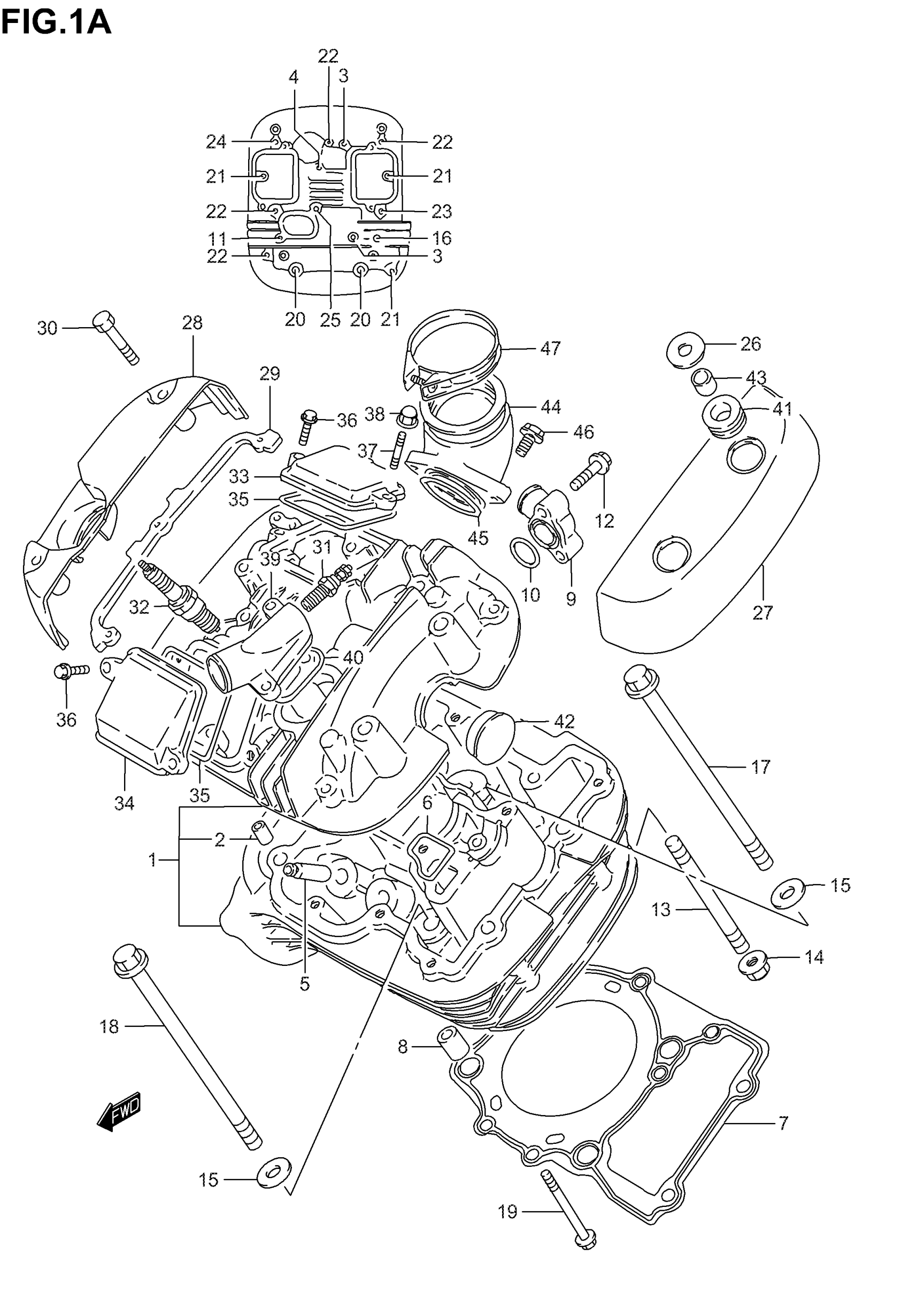

Suzuki VS800GL (2005) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | MODEL K1/K2/K3/K4

11101-39A20

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL K5; Includes Item(s) 2 - 4

11101-39A50

Unavailable

2

PIN

09206-11004

$5.36

3

BOLT (6X50)

09103-06101

$2.16

4

BOLT (6X55)

09103-06102

$2.10

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$40.73

6

GASKET, CYLINDER HEAD COVER

11123-38A00

$3.77

7

GASKET, CYLINDER HEAD FRONT

11141-45C00

$56.84

8

PIN

04211-13189

$2.19

9

UNION, CYLINDER HEAD WATER

11169-45C10

Unavailable

10

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

11

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

12

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

13

STUD BOLT (L:40)

09108-08144

$3.20

14

NUT This part replaces 08316-10083.

08316-1008B

$2.66

15

WASHER

09160-10039

$2.26

16

BOLT (8X140)

09103-08040

$5.52

17

BOLT (10X155)

09103-10133

$9.48

18

BOLT (10X165)

09103-10134

$9.48

19

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

20

BOLT (8X245)

09103-08180

Unavailable

21

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

22

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

23

BOLT This part replaces 07120-06303.

07120-0630B

$3.49

24

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

25

BOLT (6X55)

09103-06102

$2.10

26

WASHER (8.5X24X1.6)

09160-08130

$2.03

27

CAP, HEAD COVER LH

11171-38A02

Unavailable

28

CAP, HEAD COVER RH

11172-38A03

Unavailable

29

CUSHION, HEAD COVER CAP

11272-38A00

$11.07

30

BOLT

01244-06407

$4.32

31

SENDING UNIT, WATER TEMP

34850-21E00

$82.87

32

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$3.03

32

SPARK PLUG (ND,X24EPR-U9)

09482-00335

$5.36

32

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.32

32

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.32

32

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$3.11

32

SPARK PLUG (ND,X27EPR-U9) | OPT

09482-00331

$5.28

33

CAP, INSPECTION IN

11175-38A11

$23.07

34

CAP, INSPECTION EX

11176-38A11

$23.07

35

GASKET, INSPECTION CAP

11177-38A00

$4.48

36

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

37

STUD BOLT

09108-06102

$4.08

38

NUT This part replaces 08313-20063.

08313-2006A

$1.97

39

UNION, WATER OUTLET

11181-38A02

Unavailable

40

GASKET, WATER UNION

11182-38A00

$2.81

41

CUSHION

09320-13015

$2.85

42

PLUG, CYLINDER HEAD

09241-30004

$6.60

43

BUSH

09301-08007

$6.80

44

PIPE ASSY,INTAK | Includes Item(s) 45 This part replaces 13101-38E00.

13101-38E01

$72.57

45

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

46

SCREW This part replaces 02122-06203.

02122-0620A

$1.49

47

CLAMP, INTAKE PIPE

09402-52501

$10.90
