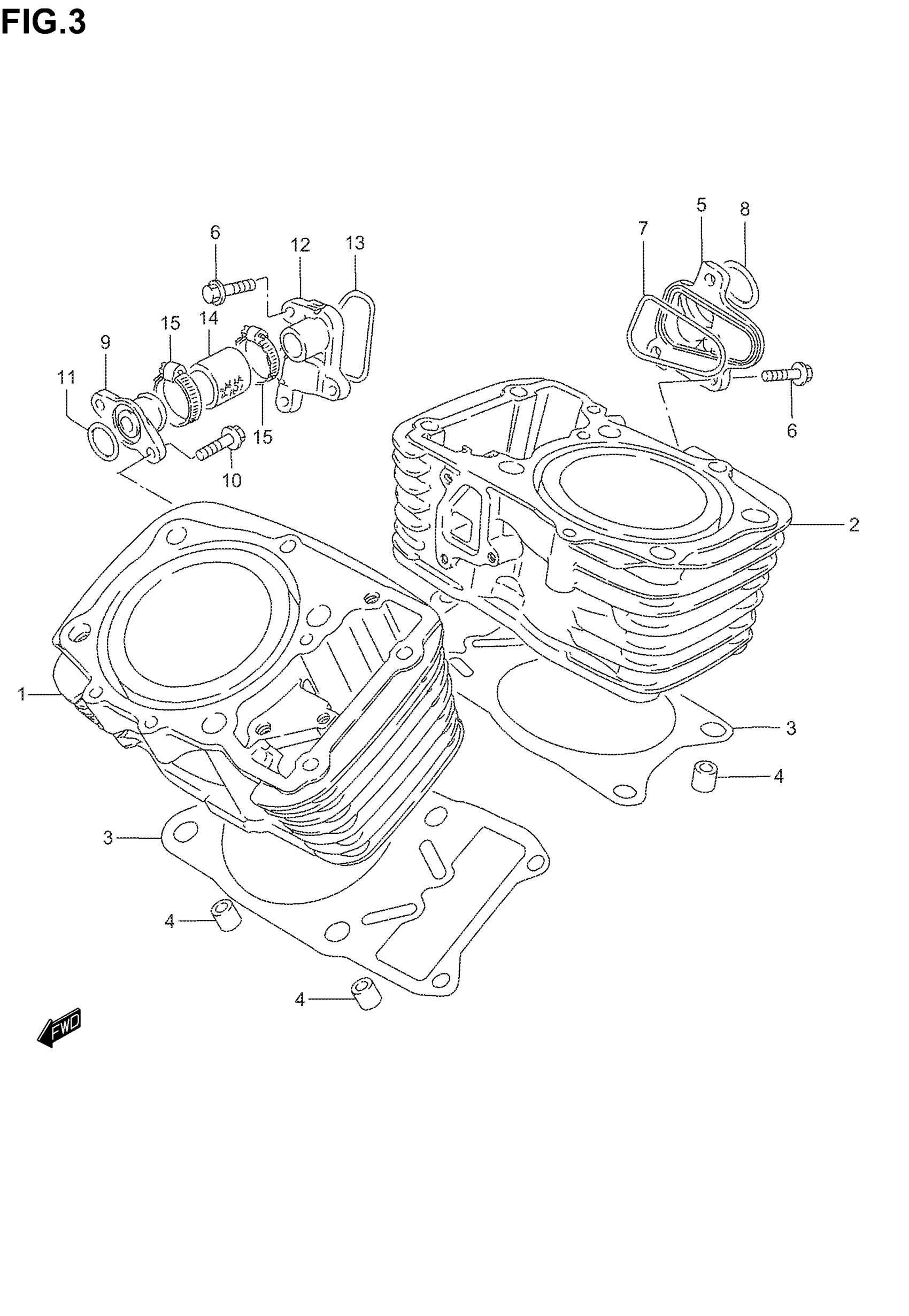

Suzuki VS800GL (2005) CYLINDER Diagram

#

Description
Price

1

CYLINDER, FRONT | MODEL K1/K2/K3/K4

11210-39A20-0F0

Unavailable

1

CYLINDER, FRONT | MODEL K5

11210-39A50-0F0

Unavailable

2

CYLINDER, REAR

11220-39A20-0F0

Unavailable

3

GASKET, CYLINDER

11241-45C20

$18.23

4

PIN

04211-13189

$2.19

5

CONNECTOR, WATER INLET This part replaces 11237-39A20.

11237-41F00

$44.48

6

BOLT

01547-06207

$2.01

7

O RING

11247-38A00

$3.56

8

O RING (D:2.3,ID:24.4)

09280-24007

$1.91

9

UNION, WATER INLET This part replaces 11235-45C10.

11235-41F00

$25.52

10

BOLT

01547-06167

$1.65

11

O RING (D:2.4,ID:15.8)

09280-16005

$2.23

12

CHAMBER, WATER OUTLET

11236-45C10

Unavailable

13

O RING

11246-38A00

$5.32

14

HOSE, CYLINDER JOINT

17851-01A00

$22.10

15

CLAMP

09402-28511

$6.88
