2005 Suzuki VS800GL Crankshaft Diagram

← All diagrams

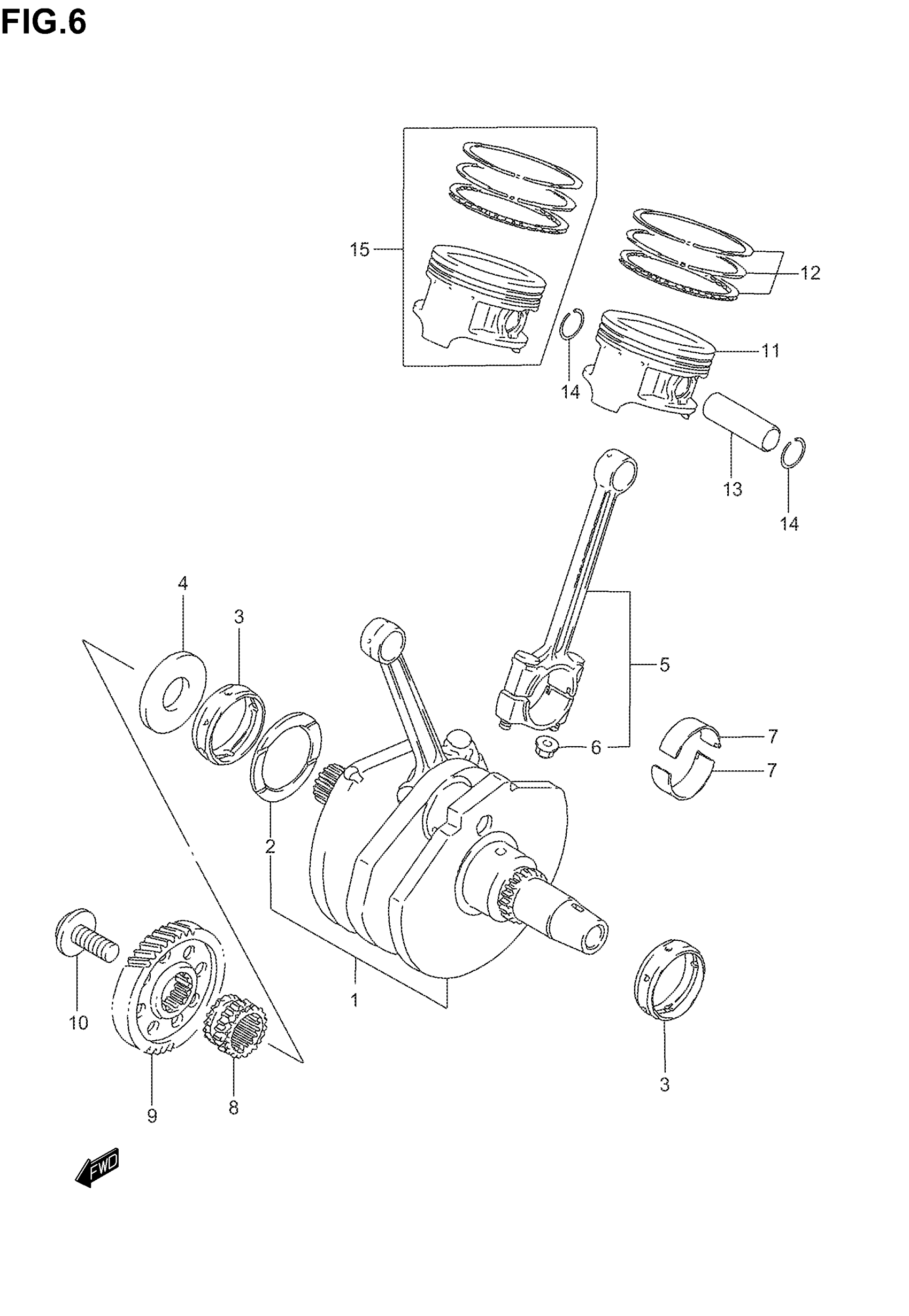

Find the part on the Crankshaft diagram for your 2005 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VS800GL Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET | Includes Item(s) 2 - 2

12000-38810

1
Out of stock

2

WASHER, CRANK THRUST (NO.1)

09160-48001

1
Out of stock

2

WASHER, CRANK THRUST (NO.2)

09160-48002

1
Out of stock

2

WASHER, CRANK THRUST (NO.3)

09160-48003

1
Out of stock

2

WASHER, CRANK THRUST (NO.4)

09160-48004

1
Out of stock

2

WASHER, CRANK THRUST (NO.5)

09160-48005

1
Out of stock

2

WASHER, CRANK THRUST (NO.6)

09160-48006

1
Out of stock

2

WASHER, CRANK THRUST (NO.7)

09160-48007

1
Out of stock

2

WASHER, CRANK THRUST (NO.8)

09160-48008

1
Out of stock

2

WASHER, CRANK THRUST (NO.9)

09160-48009

1
Out of stock

2

WASHER, CRANK THRUST (NO.10)

09160-48010

1
Out of stock

3

BEARING, CRANKSHAFT | INCLUDED CRANKCASE SET

12229-38A00

2
Out of stock

4

WASHER, CRANK THRUST

12652-38A00

1
Out of stock

5

ROD ASSY, CONNECTING | Includes Item(s) 6 This part replaces 12160-45C10.

12160-45C30

2
Out of stock

6

NUT

09159-09001

4
Out of stock

7

BEARING, CRANK PIN (GREEN)

12164-38E00-0A0

4
Out of stock

7

BEARING, CRANK PIN (BLACK)

12164-38E00-0B0

4
Out of stock

7

BEARING, CRANK PIN (BROWN)

12164-38E00-0C0

4
Out of stock

7

BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0

4
Out of stock

7

BEARING, CRANK PIN (BLUE)

12164-38E00-0E0

4
Out of stock

8

SPROCKET, CAM CHAIN DRIVE RH

12731-38A00

1
Out of stock

9

GEAR, PRIMARY DRIVE | NT:42

21111-38A00

1
Out of stock

10

BOLT (12X28)

09103-12013

1
Out of stock

11

PISTON

12111-45C00-0F0

2
Out of stock

12

RING SET, PISTON

12140-45C10

2
Out of stock

13

PIN,PISTON

12151-24A00

2
Out of stock

14

CIRCLIP

09381-20004

4
Out of stock

15

PISTON SET (OS:0.5) | OPT

12100-45C00-050

2
Out of stock
