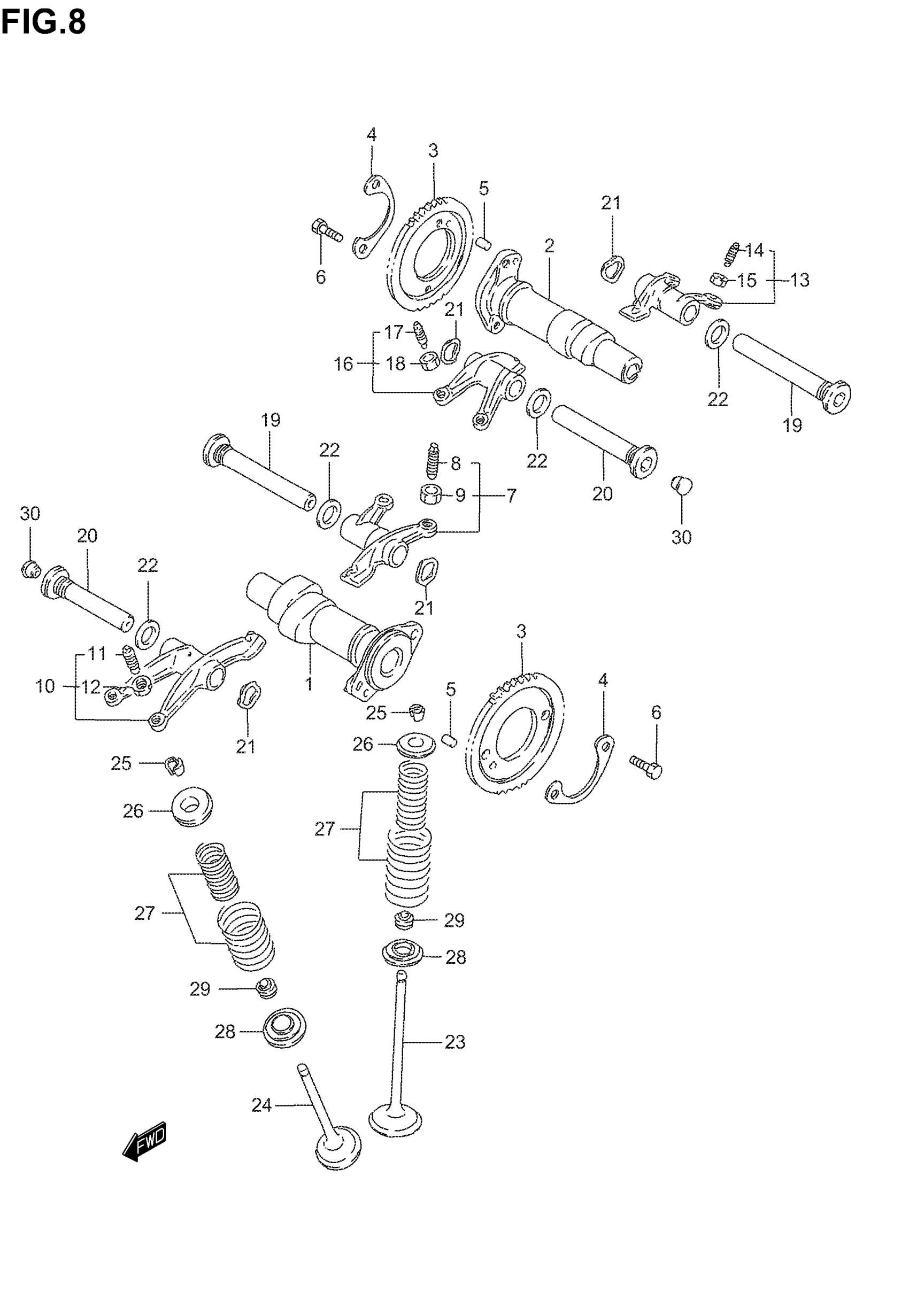

Suzuki VS800GL (2005) CAMSHAFT - VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12711-38A03

Unavailable

2

CAMSHAFT, REAR

12713-38A03

Unavailable

3

SPROCKET, CAMSHAFT

12741-37400

Unavailable

4

WASHER This part replaces 12747-44000.

12747-44001

$2.60

5

PIN

04221-05109

$1.49

6

BOLT (6X12.5)

09111-06027

$1.87

7

ARM, VALVE ROCKER FRONT IN | Includes Item(s) 8 - 9

12840-38A01

Unavailable

8

SCREW

12842-38A00

$6.95

9

.NUT, ADJUSTING SCREW

12843-32400

$2.80

10

ARM, VALVE ROCKER FRONT EX | Includes Item(s) 11 - 12

12850-38A01

Unavailable

11

SCREW

12842-38A00

$6.95

12

.NUT, ADJUSTING SCREW

12843-32400

$2.80

13

ARM, VALVE ROCKER REAR IN | Includes Item(s) 14 - 15

12845-38A01

$108.60

14

SCREW

12842-38A00

$6.95

15

.NUT, ADJUSTING SCREW

12843-32400

$2.80

16

ARM, VALVE ROCKER REAR EX | Includes Item(s) 17 - 18

12855-38A01

Unavailable

17

SCREW

12842-38A00

$6.95

18

.NUT, ADJUSTING SCREW

12843-32400

$2.80

19

SHAFT, VALVE ROCKER ARM IN

12861-38A01

Unavailable

20

SHAFT, VALVE ROCKER ARM EX

12871-38A01

Unavailable

21

WASHER

09164-12018

$1.41

22

GASKET (13.8X18.8X0.4)

09168-14002

$2.83

23

VALVE, INTAKE

12911-38A10

$51.22

24

VALVE, EXHAUST

12912-38A10

$82.10

25

COTTER, VALVE

12932-24400

$1.98

26

RETAINER, SPRING This part replaces 12931-33200.

12931-33201

$9.35

27

SPRING SET, VALVE

12920-38A00

$13.50

28

SEAT, SPRING

12933-33201

$4.42

29

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04

30

CAP This part replaces 09250-06008.

09250-06016

$1.94
