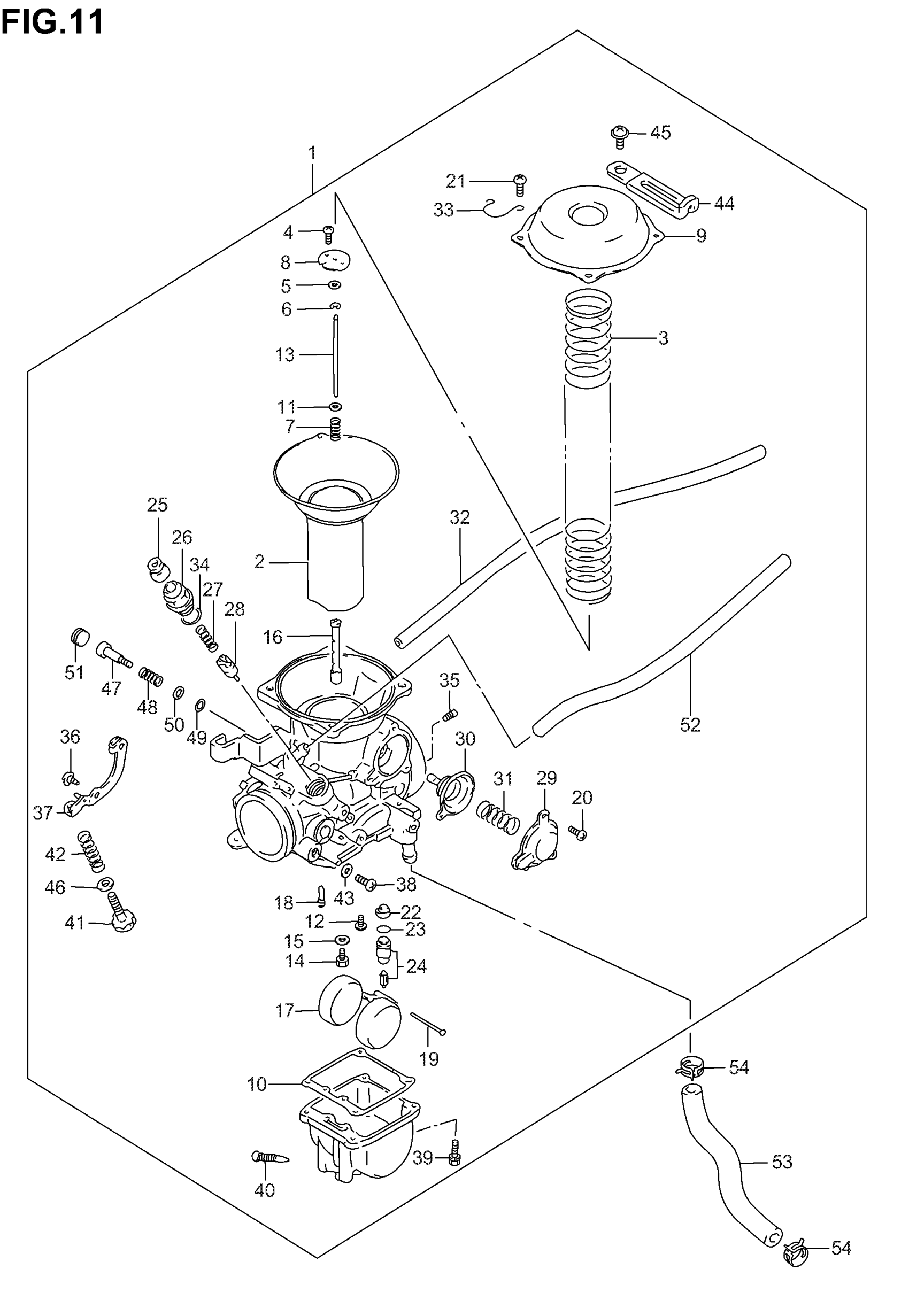

Find the part on the Carburetor diagram for your 2005 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki VS800GL Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, REAR | E3,E28

13220-38E10

1
Out of stock

1

CARBURETOR ASSY, REAR | MODEL K1/K2/K3/K4 E33 This part replaces 13220-38E50.

13220-38E52

1
Out of stock

1

CARBURETOR ASSY, REAR | MODEL K5 E33; Includes Item(s) 2 - 52 This part replaces 13220-38E51.

13220-38E52

1
Out of stock

2

DIAPHRAGM ASSY

13500-38A10

1
Out of stock

3

SPRING

13503-38B00

1
Out of stock

4

SCREW

02112-33073

2
Out of stock

5

RING

13387-47010

1

$7.41

In stock

6

E RING

13394-10010

1

$4.76

In stock

7

SPRING

13388-44030

1

$9.17

In stock

8

PLATE

13389-37400

1

$7.98

In stock

9

COVER

13502-45CE0

1
Out of stock

10

GASKET

13251-38A10

1
Out of stock

11

WASHER

13382-44030

1

$3.81

In stock

12

JET, PILOT (45)

09492-45016

1
Out of stock

13

NEEDLE, JET (5D35-1)

13383-38B00

1
Out of stock

14

JET, MAIN (132.5)

09491-26012

1
Out of stock

15

WASHER

13382-03110

1

$2.92

In stock

16

JET, NEEDLE (P-7M)

09494-00893

1
Out of stock

17

FLOAT

13252-23010

1
Out of stock

18

SCREW

13602-05A10

1

$3.55

In stock

19

PIN

13254-92311

1

$2.41

In stock

20

SCREW

02112-04107

3

$1.67

In stock

21

3

$1.15

In stock

22

FILTER

13376-19F00

1

$10.26

In stock

23

O RING

13374-35C00

1

$5.97

In stock

24

VALVE ASSY, NEEDLE

13370-39A00

1
Out of stock

25

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

26

HOLDER, GUIDE

13418-43410

1

$7.20

In stock

27

SPRING

13417-22010

1
Out of stock

28

PLUNGER ASSY

13411-01400

1

$13.27

In stock

29

COVER

13484-38A10

1
Out of stock

30

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

1
Out of stock

31

SPRING

13481-45C10

1
Out of stock

32

HOSE,5X10X600 | L:600!225 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

33

CLIP

13692-02500

1
Out of stock

34

1

$2.01

In stock

35

JET, PILOT AIR (65)

09492-65005

1
Out of stock

36

SCREW

13602-05A30

1
Out of stock

37

LEVER ASSY

13554-45C20

1
Out of stock

38

SCREW This part replaces 02112-05063.

02112-0506B

1
Out of stock

39

SCREW

13601-04148

4
Out of stock

41

ADJUSTER

13267-39E50

1
Out of stock

42

SPRING

13271-93011

1
Out of stock

43

WASHER

13523-46110

1
Out of stock

44

CLAMP This part replaces 09404-06431.

09404-06039

1
Out of stock

45

1

$1.79

In stock

46

WASHER

13277-37100

1
Out of stock

47

1

$13.33

In stock

47

1

$13.33

In stock

48

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

49

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

50

WASHER

13291-29900

1
Out of stock

51

PLUG

13281-05A00

1
Out of stock

52

HOSE (5X8X430) | E33,L:430!150 This part replaces 13683-38B00.

13683-38B01

1
Out of stock

53

HOSE, FUEL (PUMP & CARB) This part replaces 13683-38E00.

13683-38E01

1
Out of stock

54

CLIP This part replaces 09401-11407.

09401-11415

2
Out of stock
