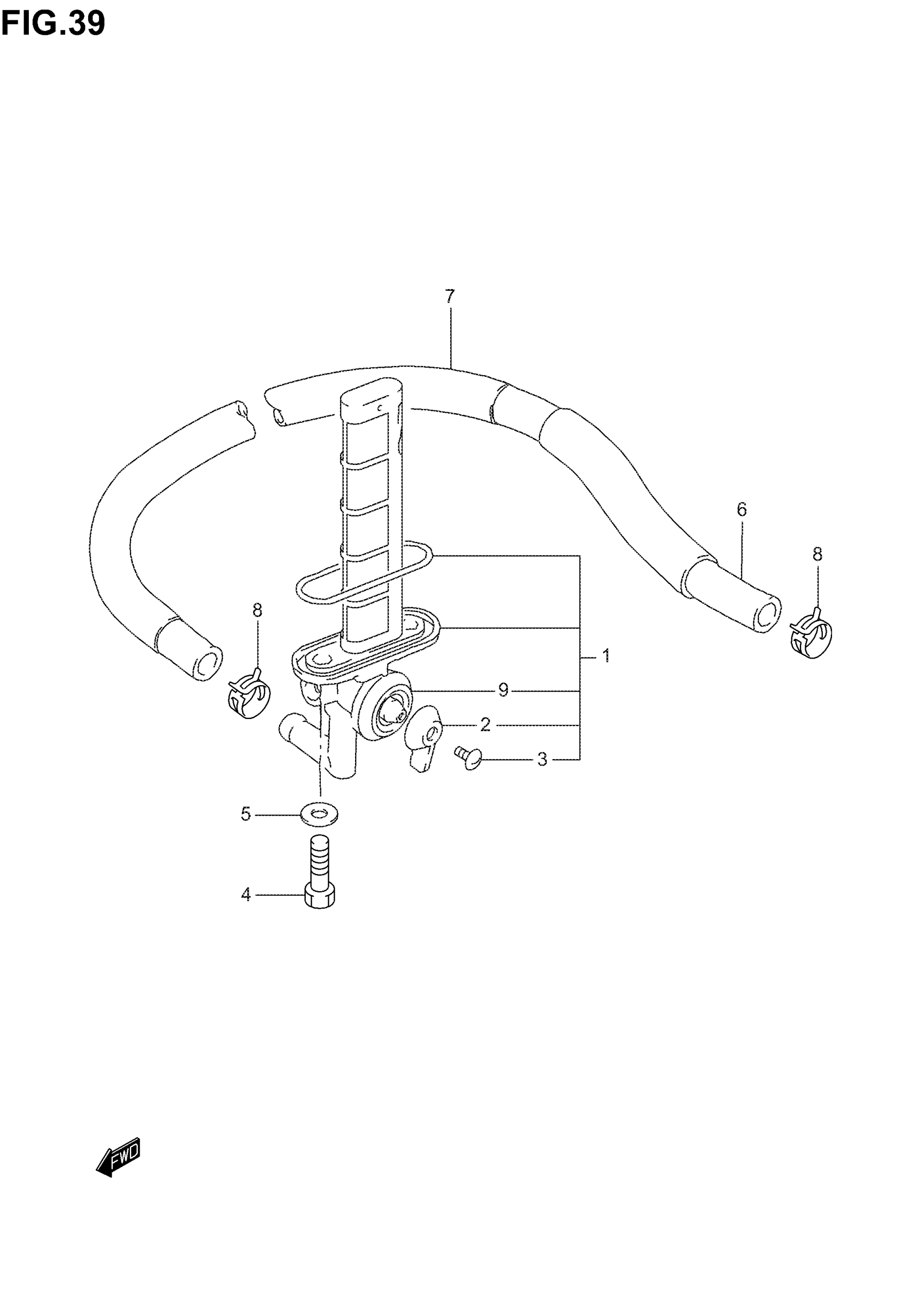

Suzuki VS800GL (2005) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 3 This part replaces 44300-38A72.

44300-38A73

$230.52

2

LEVER

44306-38A00

$29.17

3

SCREW, LEVER

44307-38A00

$21.95

4

BOLT

09128-06057

$1.64

5

GASKET

09168-06026

$2.80

6

HOSE FUEL PUMP This part replaces 44320-38A02.

44320-38AR0

$13.29

7

TUBE, FUEL HOSE

44311-38A01

$13.43

8

CLIP This part replaces 09401-11407.

09401-11415

$2.24

9

O-RING

44353-12C01

$6.80
