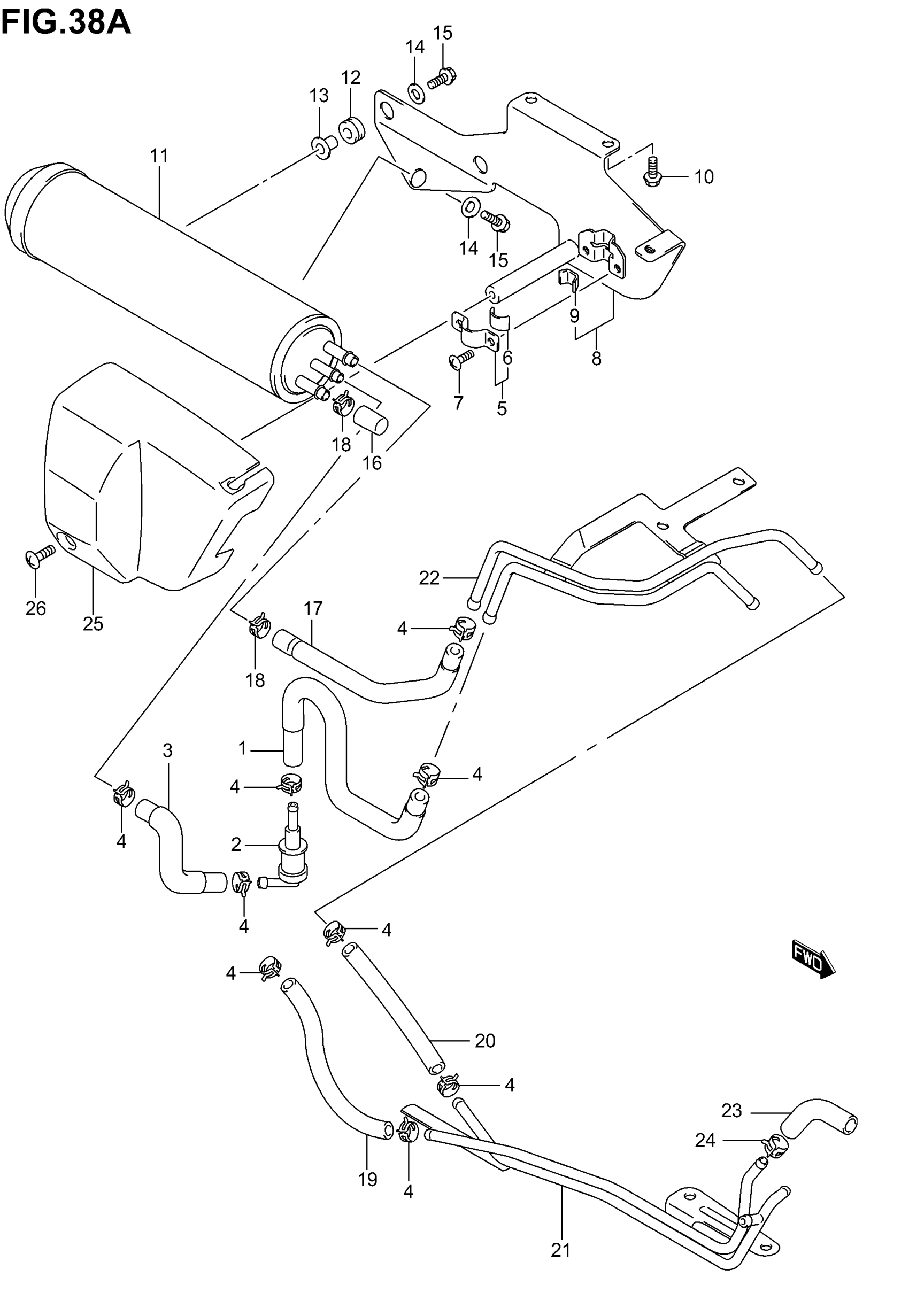

Suzuki VS800GL (2005) CANISTER (MODEL K5 E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-38A20

Unavailable

2

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

3

HOSE, VALVE & CANISTER

44435-38A20

Unavailable

4

CLIP

09401-11413

$2.26

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

8

BRACKET, CANISTER | Includes Item(s) 9

44880-38A20

Unavailable

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

11

CANISTER

17200-38A10

Unavailable

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

13

SPACER

09169-06070

$4.77

14

WASHER

09160-06037

$2.38

15

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

16

CAP

09251-07003

$2.53

17

HOSE, CANISTER PURGE

44436-38A20

Unavailable

18

CLIP

09401-12404

$2.34

19

HOSE, SURGE

44432-38A20

Unavailable

20

HOSE, PURGE

44433-38A20

Unavailable

21

PIPE, CANISTER JOINT FRONT

44940-38A00

Unavailable

22

PIPE, CANISTER JOINT REAR

44950-38A20

Unavailable

23

HOSE, CHARGE (L:600!240)

09355-54116-600

$12.06

24

CLIP

09401-08411

$1.78

25

COVER, BREATHER VALVE

44991-38A20

Unavailable

26

SCREW

09139-05064

$2.57
