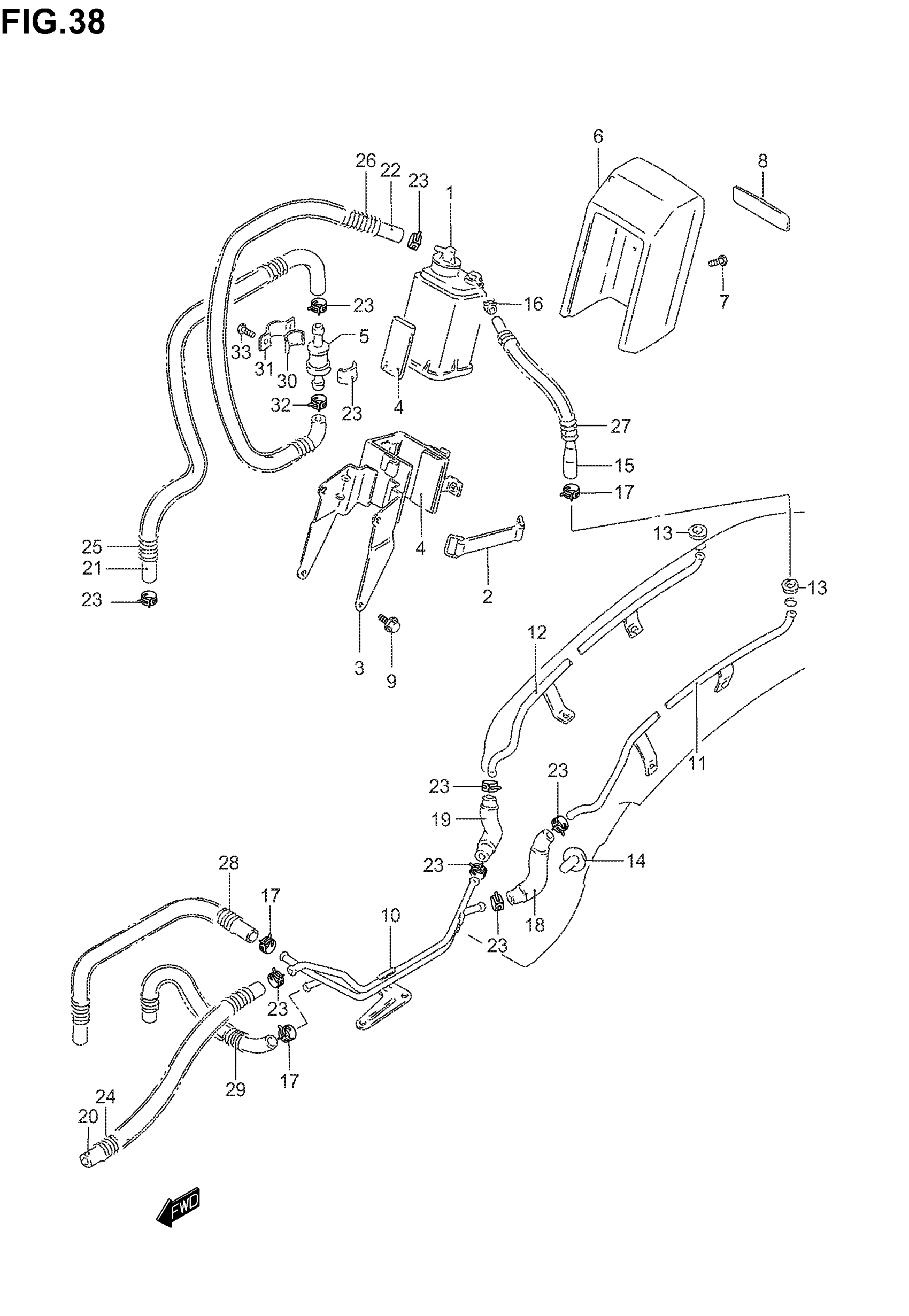

Suzuki VS800GL (2005) CANISTER (MODEL K1/K2/K3/K4 E33) Diagram

#

Description
Price

1

CANISTER ASSY

17210-38A00

Unavailable

2

BAND

09462-00034

$4.24

3

PLATE, CANISTER FITTING | Includes Item(s) 4 - 5

44880-38A12

Unavailable

4

CUSHION, FITTING

44885-38A00

$4.58

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

COVER, CANISTER

44991-38A10

Unavailable

7

SCREW This part replaces 02122-05123.

02122-0512A

$1.86

8

EMBLEM

68261-38A30

$37.15

9

BOLT

01547-06167

$1.65

10

PIPE, CANISTER JOINT FRONT

44940-38A00

Unavailable

11

PIPE, CANISTER JOINT REAR PARG

44950-38A10

Unavailable

12

PIPE, CANISTER JOINT REAR CHG

44960-38A10

Unavailable

13

GROMMET

09308-05020

Unavailable

14

GROMMET

09308-05004

Unavailable

15

HOSE, CANISTER/JOINT PIPE PARG

44911-43500

Unavailable

16

CLIP, NO.2

09401-06405

$2.45

17

CLIP, NO.1

09401-08411

$1.78

18

HOSE, NO.6 PARG

44340-38A00

Unavailable

19

HOSE, NO.2 CHG

44330-38A00

Unavailable

20

HOSE, NO.1 CHG (L:600!240)

09355-54116-600

$12.06

21

HOSE, NO.3 CHG (L:800!215)

09343-05414

Unavailable

22

HOSE, NO.4 CHG (L:800!155)

09343-05414

Unavailable

23

CLIP

09401-11413

$2.26

24

SPRING, NO.1

09440-13043

$6.04

25

SPRING, NO.2

09440-13044

Unavailable

26

SPRING, NO.3

09440-13043

$6.04

27

SPRING, NO.4

09440-10031

Unavailable

28

SPRING, NO.5

09440-10022

Unavailable

29

SPRING, NO.6

09440-10019

$3.37

30

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

31

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 32

44892-24A00

$4.52

32

CUSHION (10X30X2)

44894-24A00

$1.72

33

SCREW This part replaces 02142-04103.

02142-0410A

$1.49
