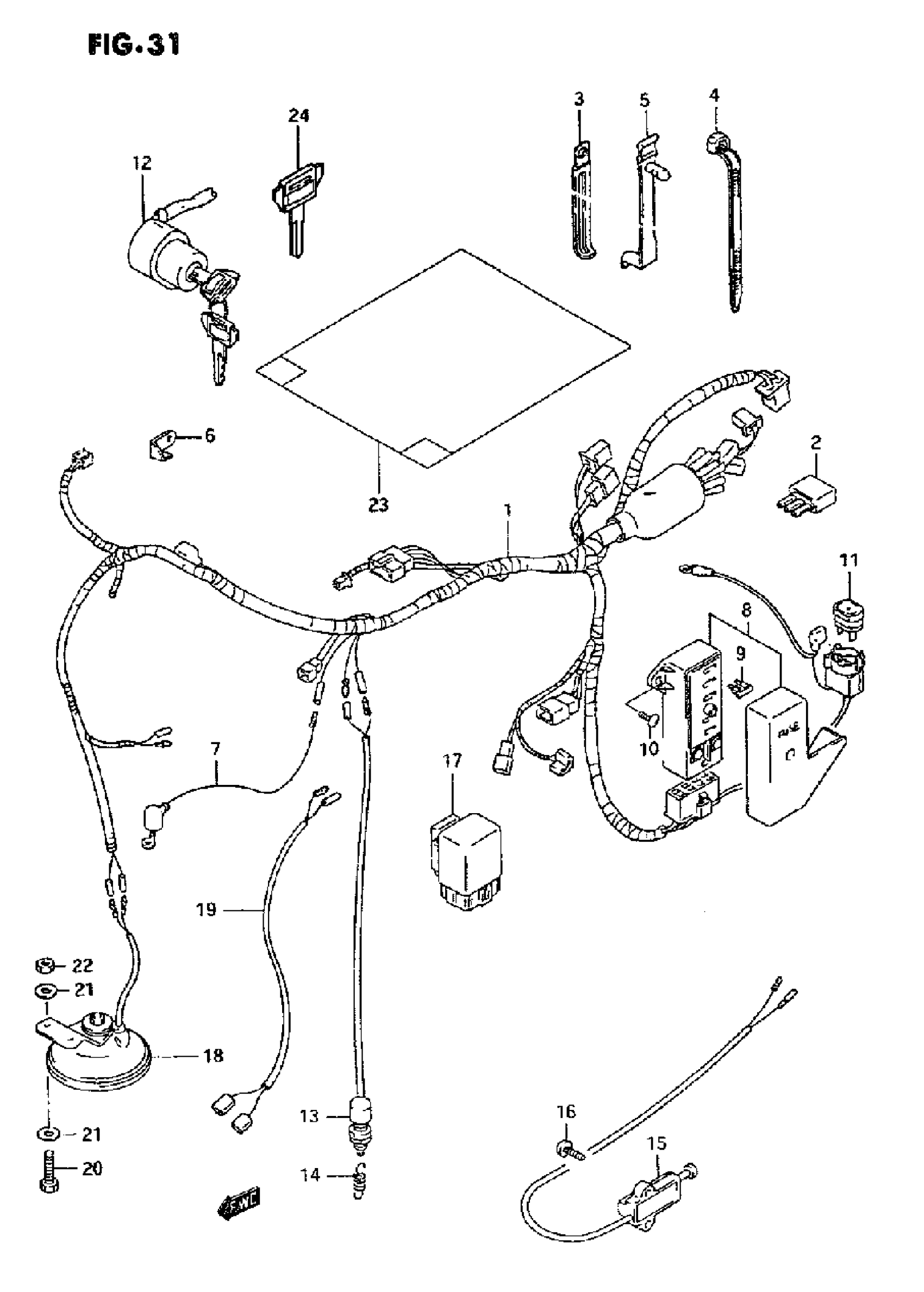

Suzuki VS800GL (1995) WIRING HARNESS (MODEL N/P/R/S) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL N

36610-39A70

Unavailable

1

HARNESS, WIRING | MODEL P/R/S

36610-39A90

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CLAMP (L:60) This part replaces 09404-05401.

09404-06429

$1.83

3

CLAMP This part replaces 09404-06206.

09404-06039

$1.74

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

3

CLAMP(L:80) This part replaces 09404-06426.

09404-06036

$1.74

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

5

CLAMP

09407-05403

$2.38

6

PLATE, COUPLER HOLDER

36687-38A00

Unavailable

7

WIRE, WATER TEMP GAUGE | MODEL N/P/R

36851-38401

Unavailable

7

WIRE, WATER TEMP GAUGE | MODEL S

36851-17E00

Unavailable

8

FUSE BOX ASSY | MODEL N

36740-38A00

Unavailable

8

FUSE BOX ASSY | MODEL P/R/S

36740-39A00

$101.35

9

FUSE (10A) | MODEL N

09481-10101

$2.07

9

FUSE (10A) | MODEL P/R/S

09481-10101

$2.07

9

.FUSE (25A) | MODEL P/R/S This part replaces 09481-25101.

09481-25103

Unavailable

10

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

11

BREAKER ASSY, CIRCUIT | MODEL N

36750-05A00

$44.50

12

SWITCH ASSY, IGNITION | MODEL N/P/R This part replaces 37110-38A02.

37110-38A04

$100.02

12

SWITCH ASSY, IGNITION | MODEL S This part replaces 37110-38A03.

37110-38A04

$100.02

13

SWITCH ASSY, STOP LAMP | MODEL N/P/R

37740-45D00

$18.27

13

SWITCH ASSY, STOP LAMP | MODEL S

37740-31D00

$28.23

14

SPRING

09443-06046

$3.10

15

SWITCH ASSY,SD This part replaces 37840-39A21.

37840-39A23

$109.08

16

SCREW | MODEL N/P This part replaces 02112-76205.

02112-7620B

$2.78

16

SCREW | MODEL R/S This part replaces 02112-76203.

02112-7620B

$2.78

17

RELAY ASSY, SIDE STAND This part replaces 38740-39A00.

38740-24X50

$45.20

18

HORN ASSY

38500-38A30

Unavailable

19

WIRE, HORN LEAD | MODEL S

36852-24B10

Unavailable

20

BOLT | MODEL N/P/R

01500-06307

$2.48

20

BOLT | MODEL S This part replaces 01550-06303.

01550-0630A

$2.32

21

WASHER | MODEL N/P/R

08322-01067

$2.13

21

.WASHER | MODEL S This part replaces 08322-01063.

08322-0106B

$2.26

22

.NUT | MODEL N/P/R

08310-00067

$2.13

22

NUT | MODEL S This part replaces 08310-00063.

08310-0006A

$1.84

23

COVER, HARNESS

36618-15020

Unavailable

24

KEY, BLANK TYPE C | OPT

37146-03A00

$9.89

24

KEY, BLANK TYPE D | OPT

37146-03A10

$11.63

24

KEY, BLANK TYPE E | OPT

37146-03A20

$12.10

24

KEY, BLANK TYPE F | OPT

37146-03A30

$10.28

24

LOCK SET | MODEL S, T This part replaces 95079-38A10-XXX.

37100-38836

Unavailable

24

LOCK SET | MODEL S, T CA ONLY This part replaces 95079-38A20-XXX.

37000-38840

Unavailable
