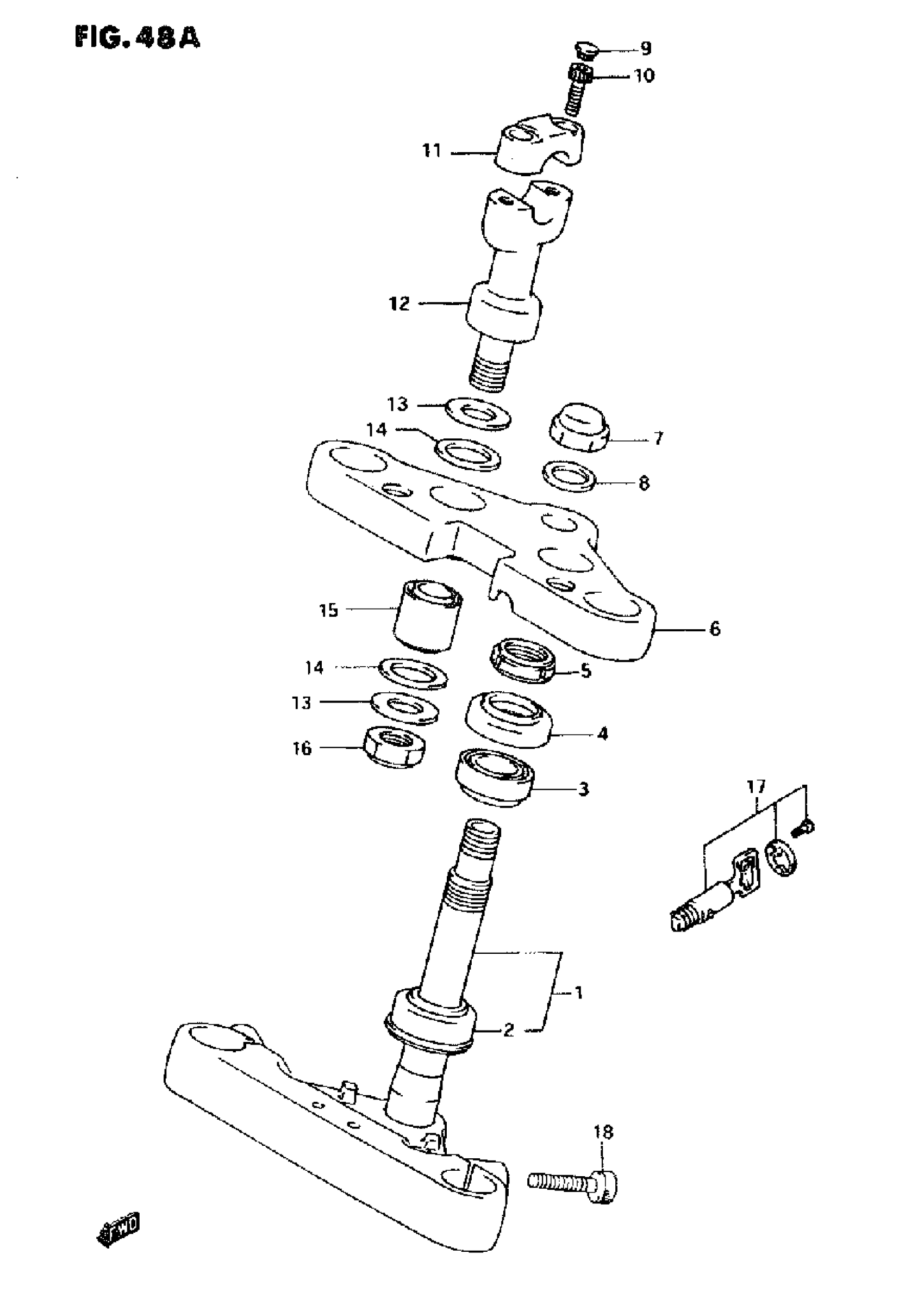

Suzuki VS800GL (1995) STEERING STEM (MODEL T) Diagram

#

Description
Price

1

STEM, STEERING

51410-39A21

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BEARING, UPPER

09265-25008

Unavailable

4

DUST SEAL

51643-49002

$12.32

5

NUT, STEERING STEM

51631-28000

$17.37

6

HEAD, STEERING STEIN

51311-39A50

Unavailable

7

NUT

51353-24B00

$30.67

8

WASHER

51356-24B01

$5.38

9

CAP

09250-06009

$3.42

10

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

11

HOLDER, HANDLE

56211-38A01

$62.07

12

HOLDER, HANDLE LOWER

56220-38B10

Unavailable

13

WASHER

56244-38B00

$8.87

14

SEAT, RUBBER

56245-38B00

$8.05

15

BUSH, RUBBER

56240-38B00

$47.40

16

NUT

56246-38B00

Unavailable

17

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

18

BOLT

07130-10307

$4.41
