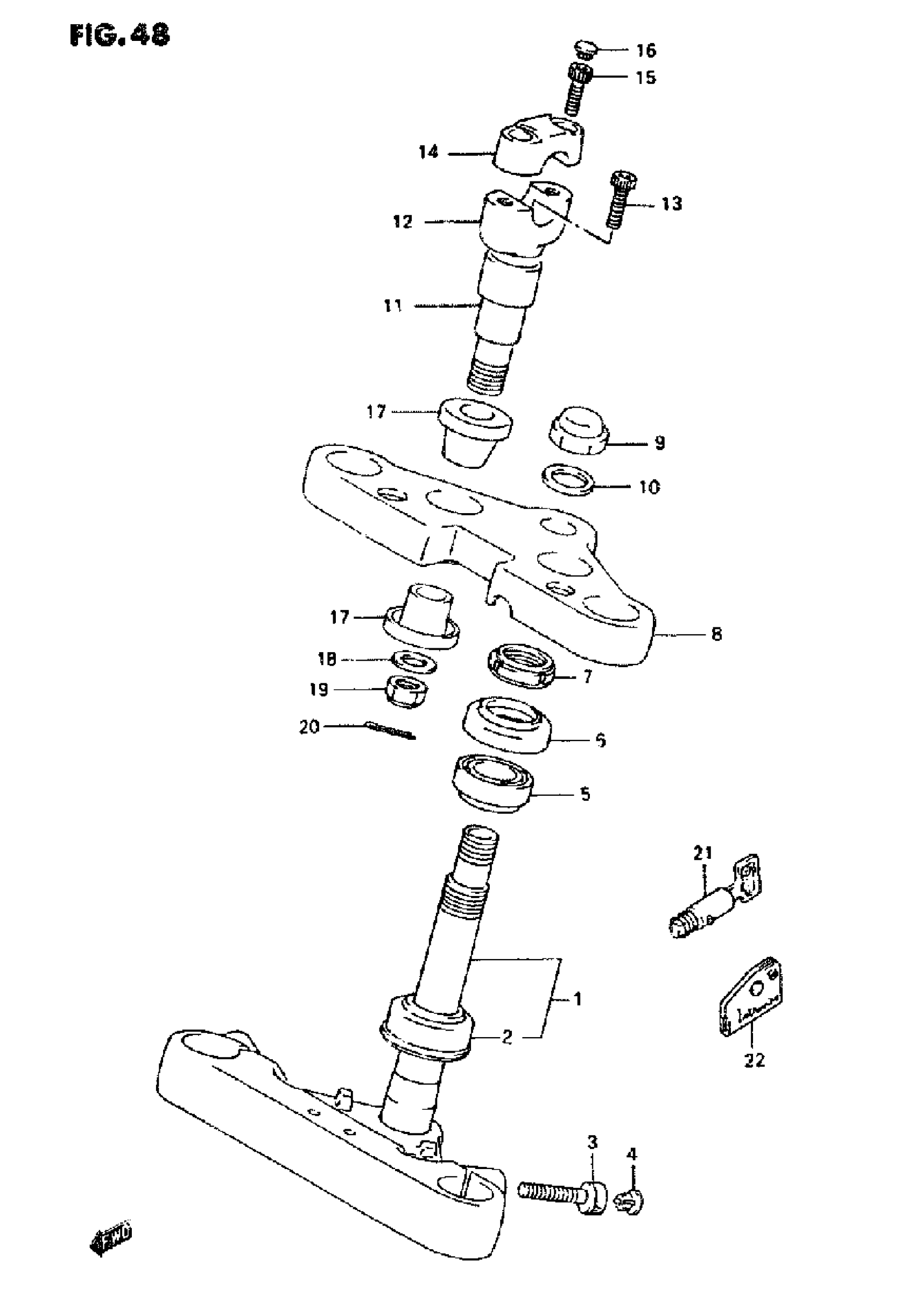

Suzuki VS800GL (1995) STEERING STEM (MODEL N/P/R/S) Diagram

#

Description
Price

1

STEM, STEERING | MODEL N/P/R This part replaces 51410-39A20.

51410-39A21

Unavailable

1

STEM, STEERING | MODEL S

51410-39A21

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT, LOWER This part replaces 51352-38A00.

07130-10307

$4.41

4

CAP

09250-08014

$2.85

5

BEARING, UPPER

09265-25008

Unavailable

6

SEAL, STEERING DUST | MODEL N/P This part replaces 51643-49001.

51643-49002

$12.32

6

DUST SEAL | MODEL R/S

51643-49002

$12.32

7

NUT, STEERING STEM

51631-28000

$17.37

8

HEAD, STEERING STEIN

51311-39A00

Unavailable

9

NUT, STEM | MODEL N/P This part replaces 51353-38A01.

51353-24B00

$30.67

9

NUT | MODEL R/S

51353-24800

Unavailable

10

WASHER, STEM | MODEL N This part replaces 51354-38A01.

51356-24B01

$5.38

10

WASHER, STEM | MODEL P This part replaces 51354-17C00.

51356-24B01

$5.38

10

WASHER | MODEL R/S

51356-24B01

$5.38

11

STAY, HANDLE

56231-38A50

$59.80

12

HOLDER, HANDLE LOWER

56221-38A01

$83.92

13

SOLT

07130-10257

$4.60

14

HOLDER, HANDLE UPPER

56211-38A01

$62.07

15

BOLT, STEERING DAMPER This part replaces 07110-08305.

07130-0830A

$1.74

16

CAP

09250-06009

$3.42

17

CUSHION, HANDLE STAY UPPER This part replaces 56240-38A41.

56240-38A42

$52.73

18

WASHER

51354-38A40

$8.07

19

NUT

09159-10027

$3.10

20

PIN

51188-39A00

Unavailable

21

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

22

CASE | MODEL N/P/R

51920-38A00

Unavailable
