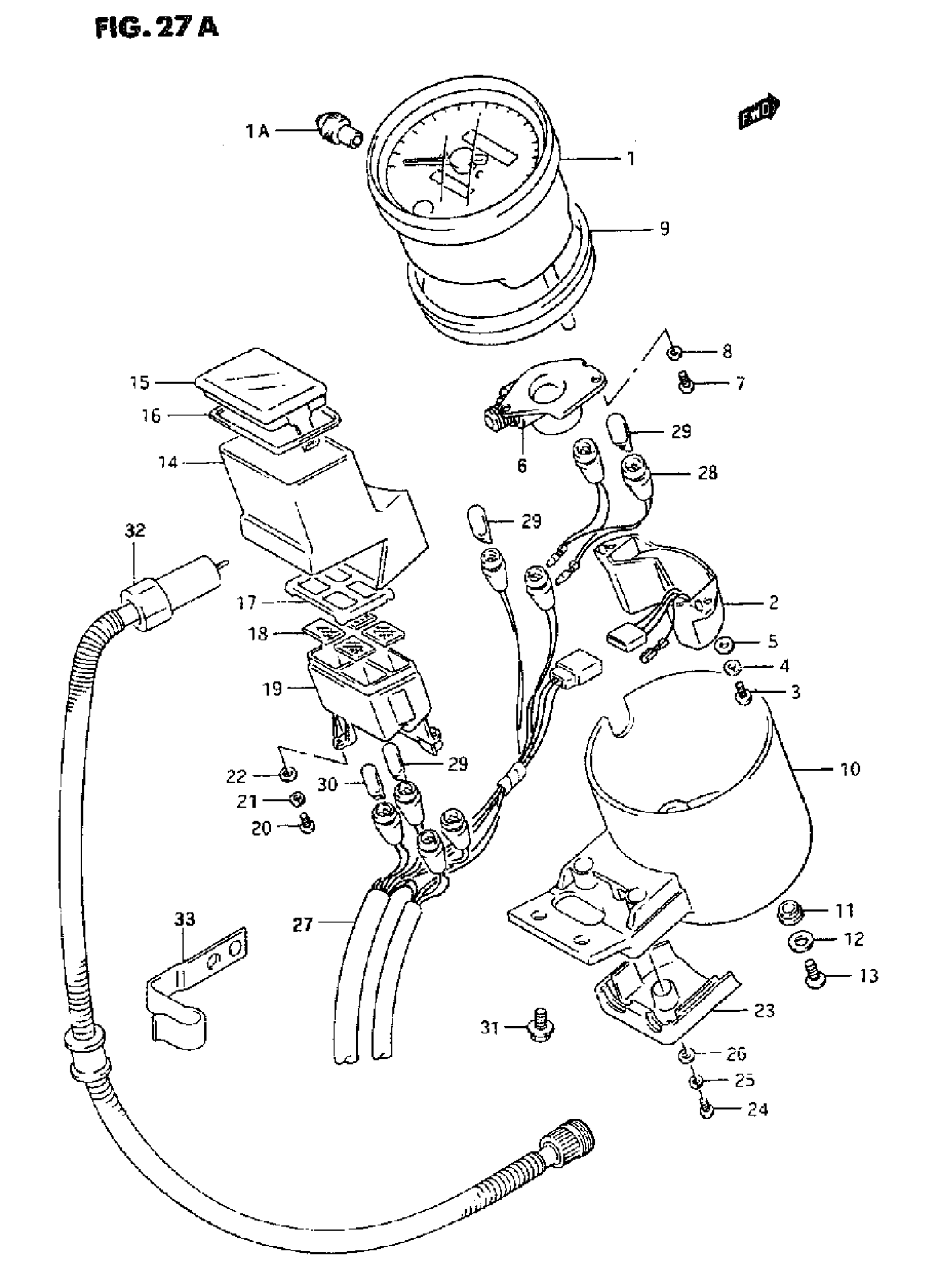

Suzuki VS800GL (1995) SPEEDOMETER (MODEL T) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34110-39AD0.

34110-39AM1

Unavailable

1

KNOB, TRIP

34124-39A10

$15.92

2

UNIT, WATER TEMP WARNING

34490-39A10

$258.98

3

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

4

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

5

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

6

BOX, METER GEAR This part replaces 34131-33450.

34131-19B00

Unavailable

7

SCREW

02112-04107

$1.55

8

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

9

CUSHION, METER

34288-39A00

$12.21

10

COVER, METER

34193-39A20

$191.15

11

CUSHION This part replaces 34189-05A30.

34189-05A31

$5.32

12

WASHER

34181-38A00

$3.30

13

SCREW

02112-04087

$1.49

14

BOX, PILOT LAMP

36381-39A20

$107.25

15

LENS, PILOT BOX

36393-38A00

Unavailable

16

CUSHION

36395-38A00

$7.37

17

PLATE, PILOT LENS

36386-38A00

Unavailable

18

LENS SET, PILOT LAMP

36300-38810

Unavailable

19

CASE, PILOT LAMP

36382-38B30

$21.77

20

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

21

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

22

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

23

COVER, PILOT BOX This part replaces 34152-39A20.

34152-39A21

$74.08

24

SCREW

02112-04087

$1.49

25

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.84

26

WASHER

08322-01047

$1.86

27

SOCKET, METER NO.1

34173-39AC0

Unavailable

28

SOCKET, METER NO.2

34174-39A10

Unavailable

29

BULB (12V, 3W)

09471-12103

$3.83

30

.BULB (12V1.7W)

09471-12108

$3.42

31

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

32

SABLE ASSY,SPEE This part replaces 34910-39A10.

34910-39A11

$114.85

33

GUIDE, METER CABLE

34938-38A02

$10.65
