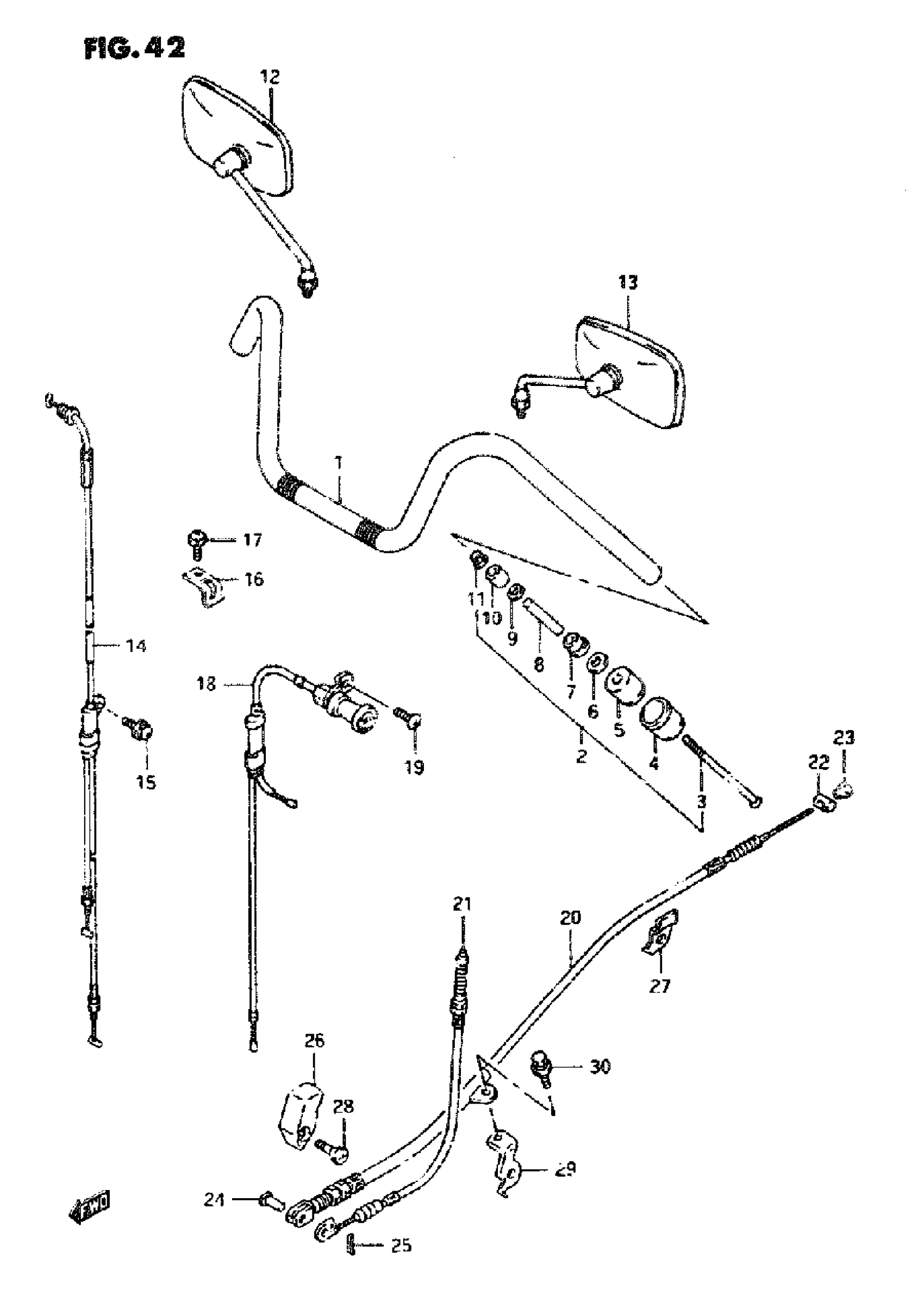

Suzuki VS800GL (1995) HANDLEBAR (MODEL N/P/R) Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-38A60.

56111-38A61

Unavailable

2

BALANCER SET This part replaces 56200-26820.

56200-38811

Unavailable

3

SCREW

09127-06019

$3.55

4

CAP

56274-26D00

Unavailable

5

BALANCER

56271-26D10

Unavailable

6

SPACER

56275-26000

Unavailable

7

EXPANDER, OUTER This part replaces 56272-26D00.

56272-26D01

$7.25

8

SPACER

56276-17D00

$5.07

9

WASHER (6.5X18X1.0)

09160-06028

$1.49

10

BALANCER SET This part replaces 56271-26D00.

56200-38811

Unavailable

11

NUT

09159-06024

$2.11

12

MIRROR ASSY, REAR VIEW RH

56500-38A40

Unavailable

13

MIRROR ASSY, REAR VIEW LH

56600-38A40

Unavailable

14

CABLE ASSY,THRO This part replaces 58300-38A10.

58300-38A11

$84.46

15

SCREW, THROTTLE CABLE | MODEL N/P

02112-75127

Unavailable

15

SCREW | MODEL R This part replaces 02112-75123.

02112-7512A

$2.42

16

CLAMP, THROTTLE CABLE

58621-38A00

$6.38

17

SCREW | MODEL N/P This part replaces 02112-35106.

02112-3510B

$2.25

17

SCREW | MODEL R This part replaces 02112-35103.

02112-3510B

$2.25

18

CABLE ASSY, STARTER This part replaces 58400-38A12.

58400-38A14

$65.94

19

STOPPER, CL RLSE CAM SHAFT | MODEL N/P This part replaces 02142-06104.

02142-0610A

$1.49

19

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.49

20

CABLE, REAR BRAKE This part replaces 58510-38A00.

58510-38A01

$144.82

21

CABLE, STOP LAMP SWITCH

58830-38A00

$35.40

22

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

23

NUT

09150-D6009

Unavailable

24

PIN, FRONT

09200-05001

$1.65

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

26

GUIDE, REAR BRAKE CABLE

58631-38A00

Unavailable

27

CLAMP, REAR BRAKE CABLE

58721-38A00

Unavailable

28

SCREW | MODEL N/P This part replaces 02122-06205.

02122-0620A

$1.49

28

SCREW | MODEL R This part replaces 02122-06203.

02122-0620A

$1.49

29

BRACKET, REAR BRAKE CABLE

43275-38A00

Unavailable

30

BOLT | MODEL N/P

01580-06167

$3.33

30

BOLT | MODEL R This part replaces 01580-06163.

01580-0616A

$2.42
