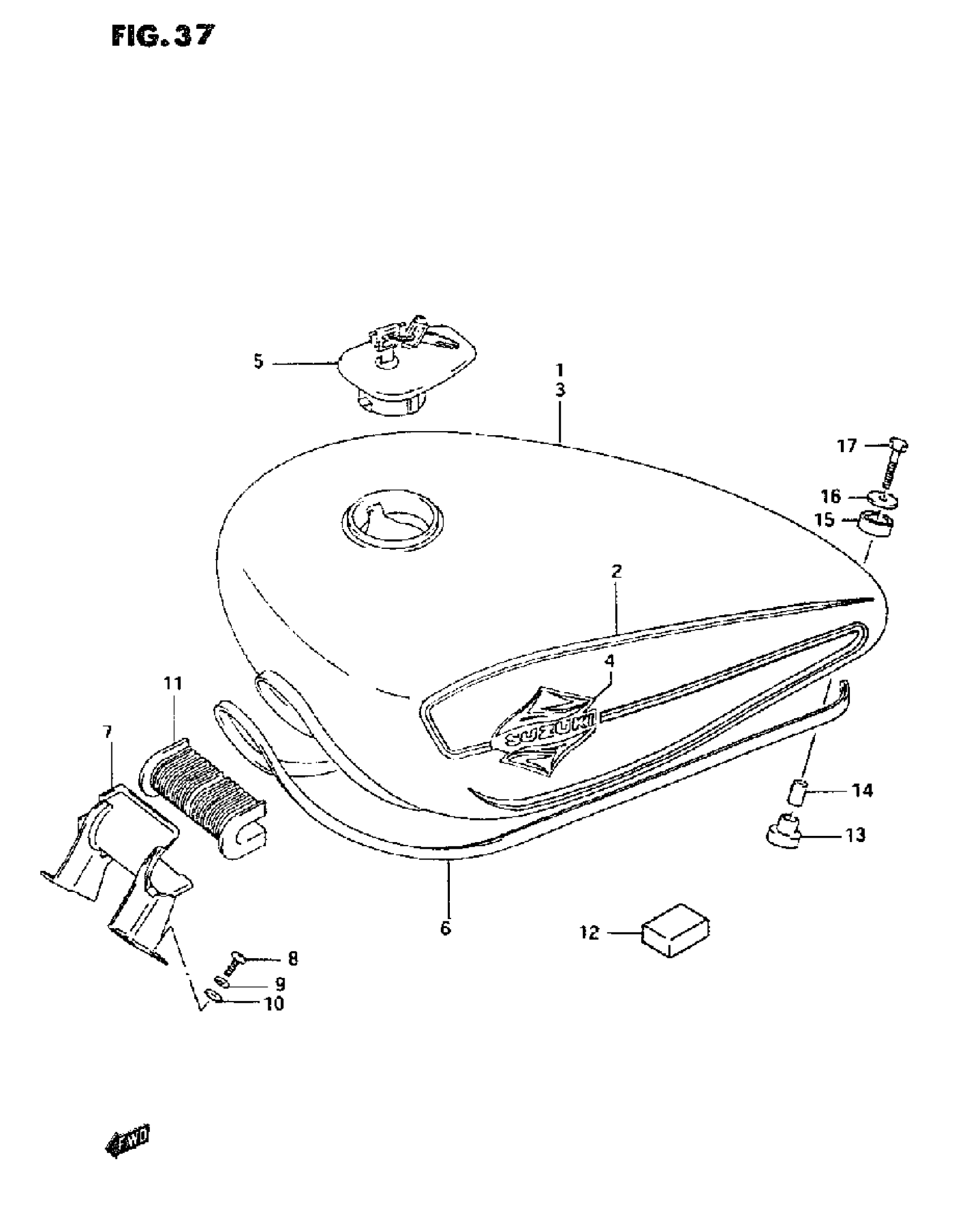

Suzuki VS800GL (1995) FUEL TANK (MODEL N/P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-39A20-03F.

44100-39A31-03F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-39A20-10X.

44100-39A31-10X

Unavailable

1

TANK ASSY, FUEL (BLUE) | CALIFORNIA ONLY, MODEL N

44100-39A40-03F

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL N This part replaces 44100-39A40-10X.

44110-38A12-YD8

Unavailable

2

TAPE SET, FUEL TANK | MODEL N FOR 03F

68110-39A01-M54

Unavailable

2

TAPE SET, FUEL TANK | MODEL N FOR 10X

68110-39A01-M55

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL P/R This part replaces 44100-39A50-19A.

44100-39A61-19A

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 44100-39A50-0CG.

44100-39A61-0CG

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL R

44100-39A50-333

Unavailable

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL P/R This part replaces 44100-39A70-19A.

44100-39A71-19A

Unavailable

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL P This part replaces 44100-39A70-0CG.

44100-39A71-0CG

Unavailable

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL R This part replaces 44100-39A70-33J.

44110-38A12-YD8

Unavailable

4

EMBLEM | MODEL P FOR 19A This part replaces 68111-39A00-M55.

68111-39A01-M55

Unavailable

4

EMBLEM | MODEL R FOR 19A

68111-39A01-M55

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL P FOR OCG This part replaces 68111-39A00-A6S.

68111-39A01-A6S

Unavailable

4

EMBLEM | MODEL R FOR 33J

68111-39A01-C2P

Unavailable

5

CAP SET, FUEL TANK

44200-38820

$108.83

5

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-38850.

44200-38852

$94.71

5

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA

44200-38860

Unavailable

5

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA

44200-38870

Unavailable

6

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

7

BRACKET, FRONT (BLACK) | MODEL N This part replaces 44250-38A01-03F.

44250-38A01-019

$44.30

7

BRACKET, FRONT (BLACK) This part replaces 44250-38A01-19A.

44250-38A01-019

$44.30

7

BRACKET, FRONT (BLACK) | MODEL P This part replaces 44250-38A01-0CG.

44250-38A01-019

$44.30

7

BRACKET, FRONT (BLACK) | MODEL R This part replaces 44250-38A01-33J.

44250-38A01-019

$44.30

8

SCREW | MODEL N/P This part replaces 02142-06164.

02142-0616A

$1.49

8

SCREW | MODEL R This part replaces 02112-76163.

02112-7616A

$2.12

9

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

10

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

11

CUSHION, FRONT

44511-38A01

$11.60

12

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

13

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

14

SPACER This part replaces 09180-06091.

09180-06273

$3.05

15

CUSHION, REAR UPPER

09320-14013

$2.11

16

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

17

BOLT This part replaces 09128-06055.

01500-0635A

$2.19
