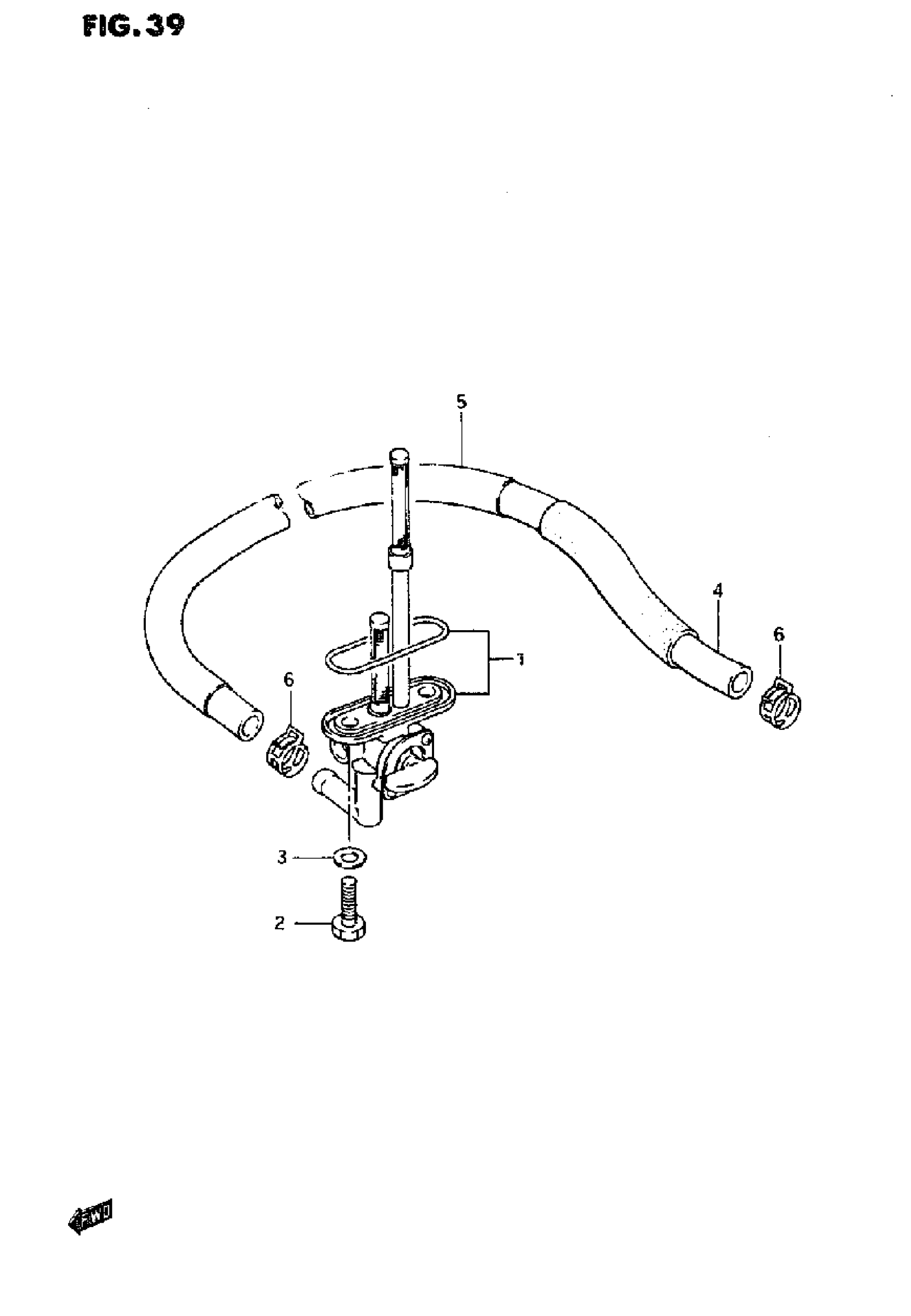

Suzuki VS800GL (1995) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | MODEL N/P/R This part replaces 44300-38A71.

44300-38A73

$186.53

1

COCK ASSY,FUEL | MODEL S/T This part replaces 44300-38A72.

44300-38A73

$186.53

2

BOLT

09128-06057

$1.65

3

GASKET

09168-06026

$3.10

4

HOSE FUEL PUMP This part replaces 44320-38A02.

44320-38AR0

$14.12

5

TUBE, FUEL HOSE

44311-38A01

$14.26

6

CLIP | MODEL N/P/R This part replaces 09401-12406.

09401-11415

$2.23

6

CLIP | MODEL S/T This part replaces 09401-11407.

09401-11415

$2.23
