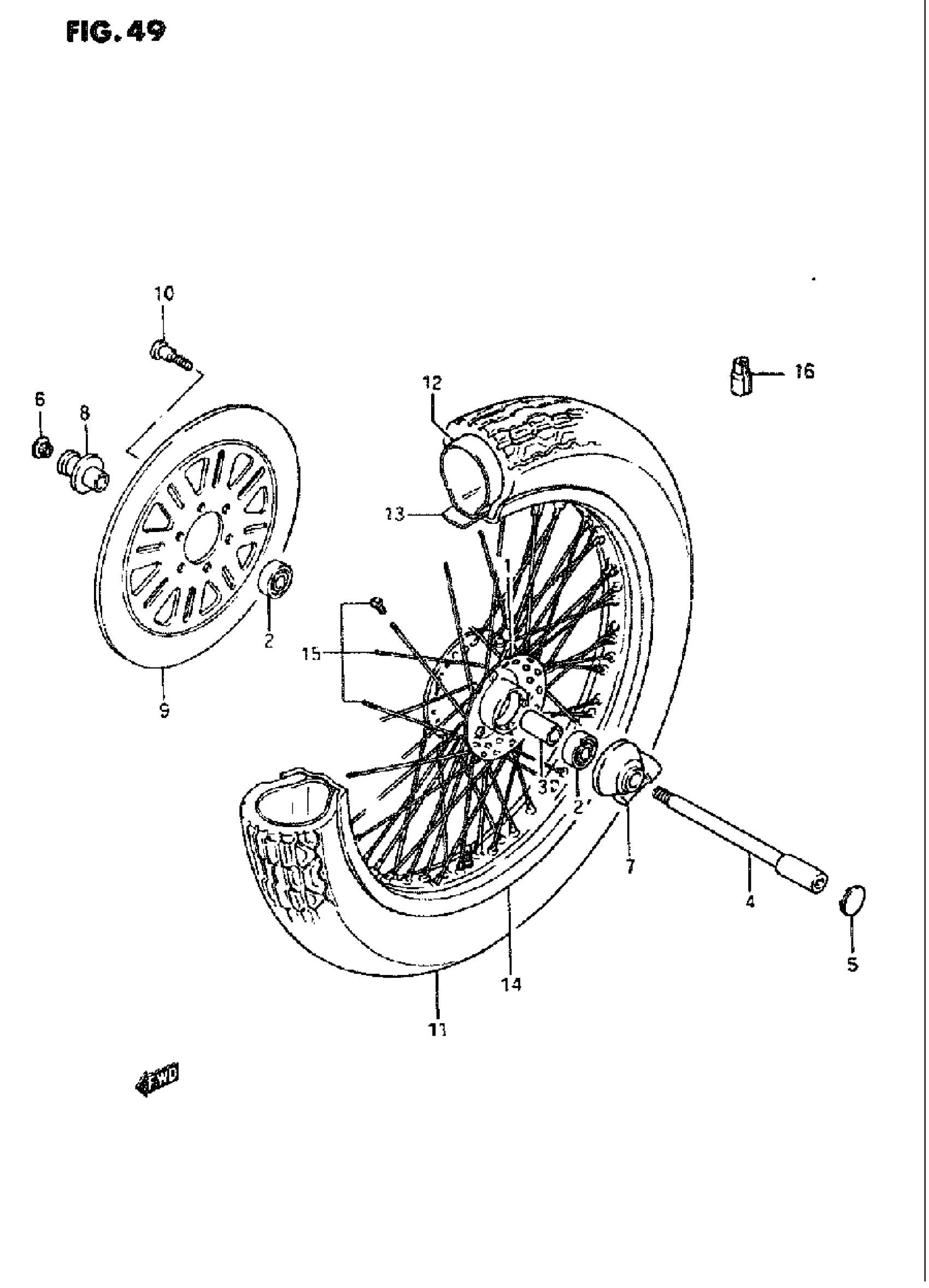

Suzuki VS800GL (1995) FRONT WHEEL Diagram

#

Description
Price

1

HUB ASSY, FRONT

54110-38800

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING

09180-15004

$10.27

4

AXLE, FRONT

54711-38802

Unavailable

5

CAP, FRONT AXLE LH

54792-38800

Unavailable

6

CAP, FRONT AXLE RH

54791-38B01

$5.58

7

BOX ASSY,SPEEDO This part replaces 54600-38A11.

54600-38A12

$122.00

8

SPACER, AXLE

54750-38B00

$27.97

9

DISC, FRONT BRAKE

59211-38800

Unavailable

10

BOLT (8X25.5) | MODEL N/P/R

09106-08049

$4.62

10

BOLT (8X33) | MODEL S/T This part replaces 09106-08125.

09106-08148

$4.80

11

TIRE, FRONT (80/90-21 48H) (BRIDGESTONE)

55100-38A60

Unavailable

12

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

13

PROTECTOR, INNER TUBE

55261-14540

$3.83

14

RIM, WHEEL (2.15X21)

55311-38A30

Unavailable

15

SPOKE SET. FRONT WHEEL

55320-38A20

Unavailable

16

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

16

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$7.50

16

CALIPER ASSY, FRONT | ->59100-38AO2 This part replaces 59100-38A01.

59100-38A02-999

$381.93
