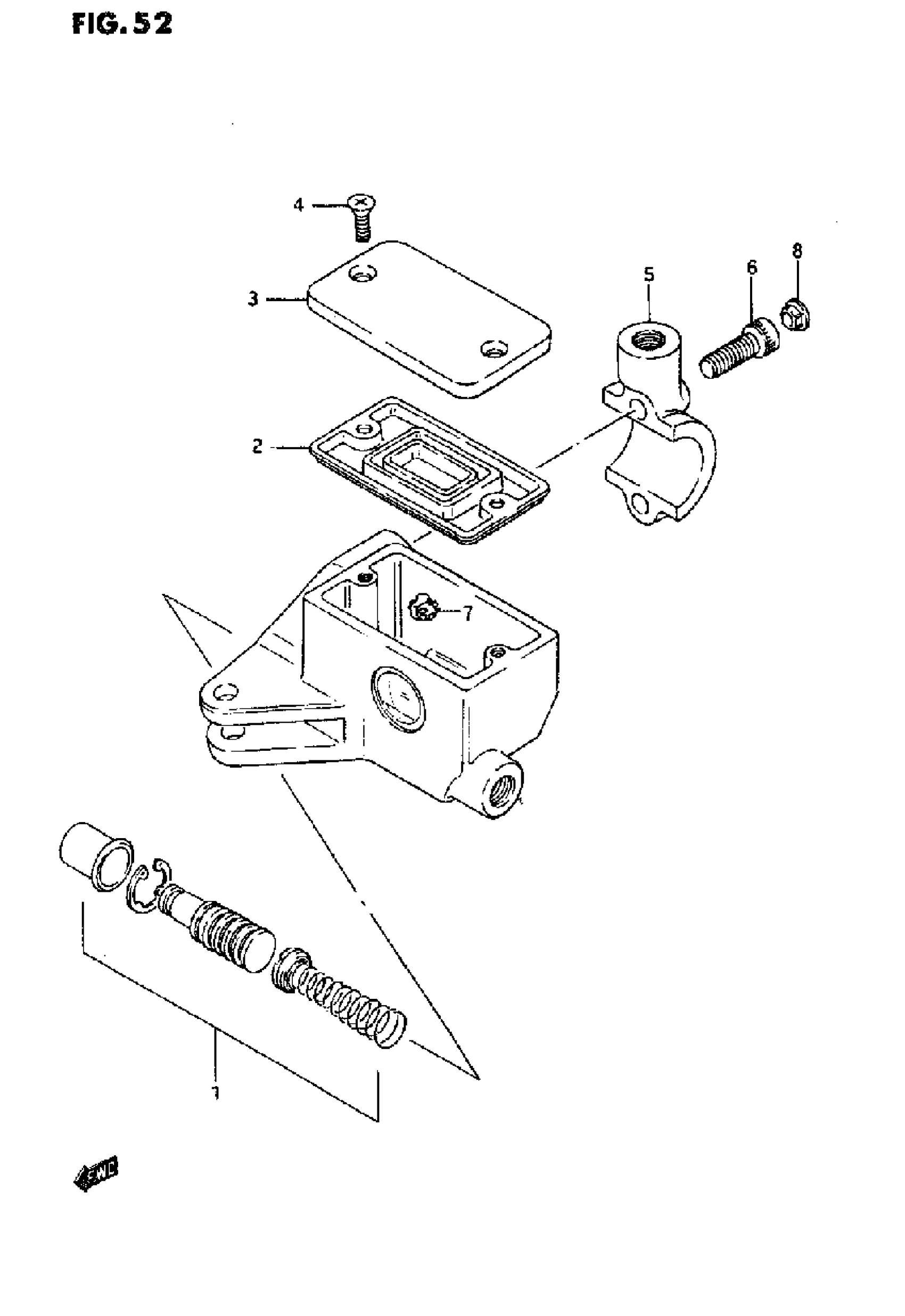

Suzuki VS800GL (1995) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$45.20

2

DIAPHRAGM

59667-49460

$9.78

3

CAP

59669-24B00

$61.55

4

SCREW

02122-04127

$1.97

5

HOLDER

59671-38A00

$37.11

6

BOLT

07130-06207

$3.04

7

PROTECTOR

59664-48B00

$11.02

8

CAP

09250-05008

$3.76

8

CYLINDER ASSY,C This part replaces 59800-39A20.

59800-39A21

$432.90
