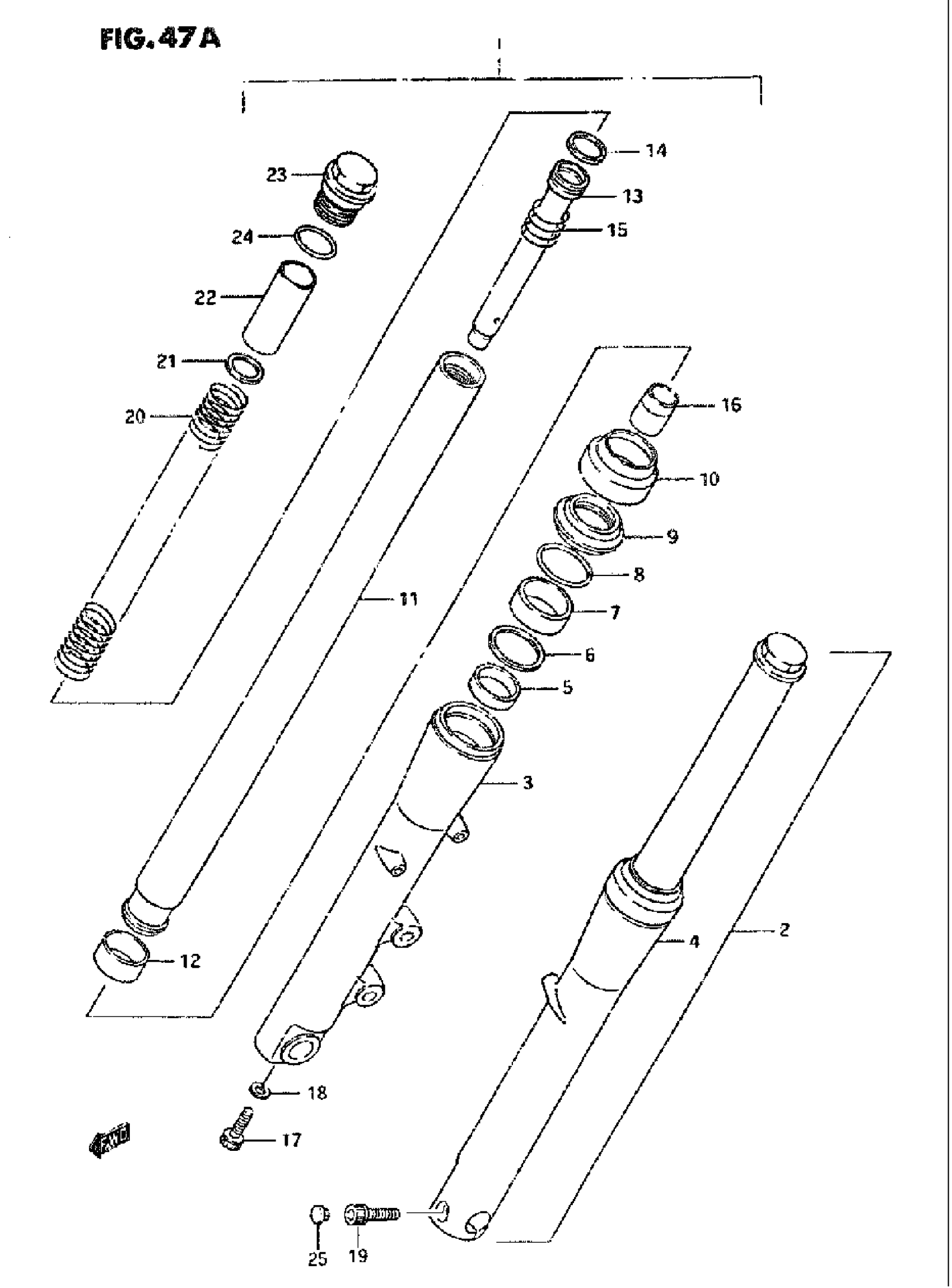

Suzuki VS800GL (1995) FRONT FORK (MODEL T) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-39A41

Unavailable

2

DAMPER ASSY, LH

51104-39A41

Unavailable

3

TUBE, OUTER RH

51131-39A00

Unavailable

4

TUBE, OUTER LH

51141-39A00

Unavailable

5

BUSH, GUIDE

51152-39A40

$20.76

6

SPACER, SEAL

51168-39A00

$7.67

7

OIL SEAL

51153-19D00

$22.96

8

RING, STOPPER

51156-32B00

$5.50

9

DUST SEAL

51173-19000

Unavailable

10

COVER, CASE

51572-38800

Unavailable

11

TUBE, INNER

51110-39A41

Unavailable

12

BUSH, SLIDE

51121-39A40

$25.75

13

PIPE, SEAT

51146-39A00

Unavailable

14

RING, PISTON

51196-32B00

$8.42

15

SPRING, REBOUND

51177-32800

Unavailable

16

PIECE, OIL LOCK

51195-38800

Unavailable

17

BOLT

51147-48130

$4.34

18

GASKET

51148-36011

$3.56

19

BOLT, RH

07130-08357

$3.18

20

SPRING

51171-39A00

Unavailable

21

JOINT, SPRING

51172-32B00

$6.38

22

SPACER, SPRING

51176-39A00

Unavailable

23

BOLT, INNER TUBE

51351-39A00

Unavailable

24

O RING

51117-39A00

$4.02

25

CAP

09250-06009

$3.42
