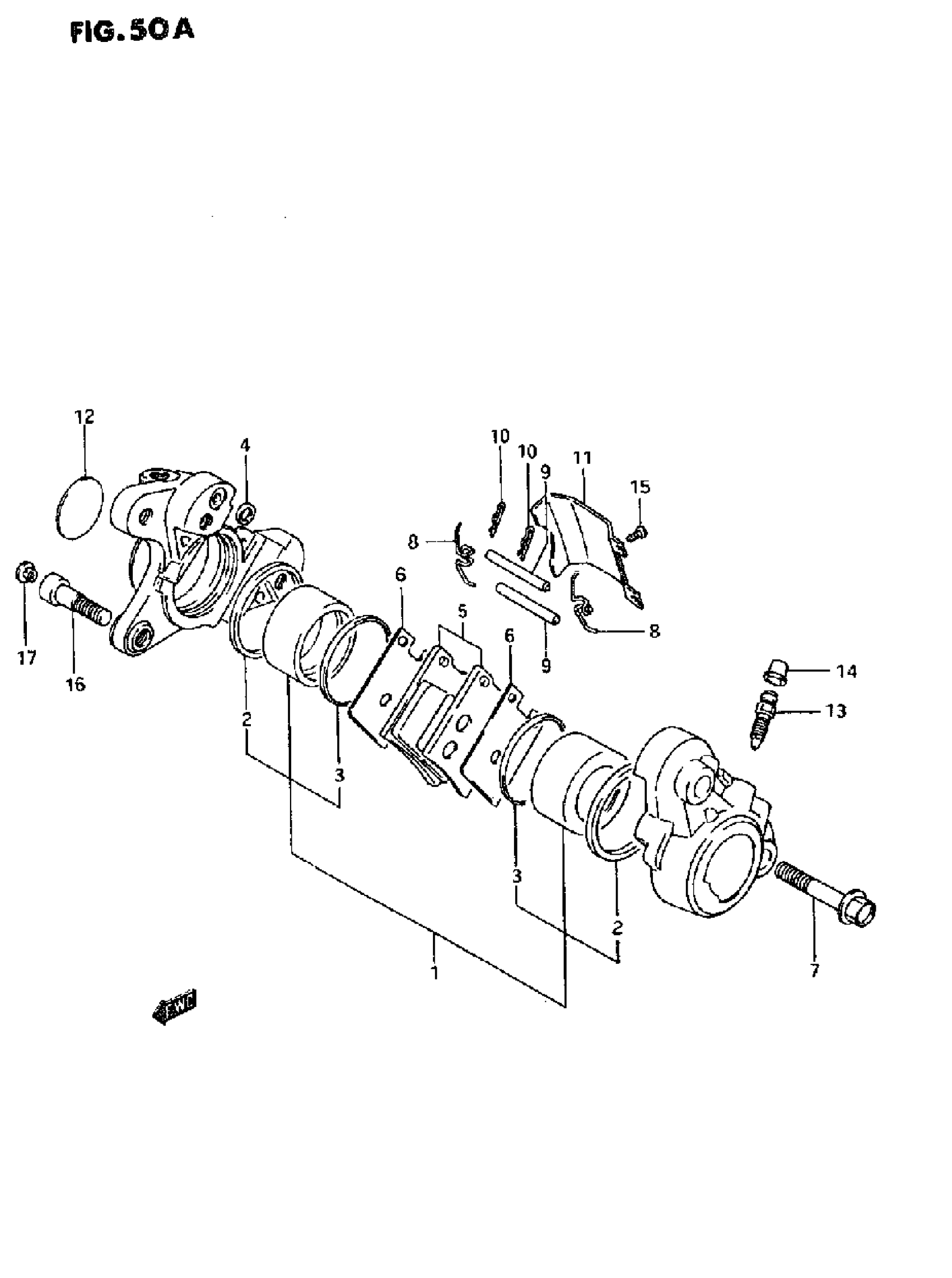

Suzuki VS800GL (1995) FRONT CALIPER (MODEL P/R/S/T) Diagram

#

Description
Price

1

PISTON SET This part replaces 69100-38810.

69100-38851

$104.85

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.79

3

BOOT

69108-45010

Unavailable

4

SEAL

69107-34200

$10.71

5

PAD SET | <-59130-38B10

59100-38820

$48.07

6

SHIM

59371-33410

$12.57

7

BOLT

59145-16700

$8.83

8

SPRING

59143-16700

$5.80

9

PIN

69141-45000

$5.17

10

.CLIP, PAD PIN

69142-45000

$4.34

11

COVER | MODEL P/R ->59151-38B0L This part replaces 59151-38B00.

59151-38B01

Unavailable

11

COVER | MODEL S/T

59151-38B01

Unavailable

12

CAP, CALIPER

59152-24A00

Unavailable

13

BLEEDER

59121-18410

$8.73

14

CAP

55156-66310

$5.17

15

SCREW (4X6) | MODEL P/R ->59153-38001 This part replaces 59153-38B00.

59153-38B10

$7.80

15

SCREW (4X6) | MODEL S/T

59153-38B10

$7.80

16

BOLT (10X33)

09106-10038

$3.55

17

CAP

09250-08014

$2.85
