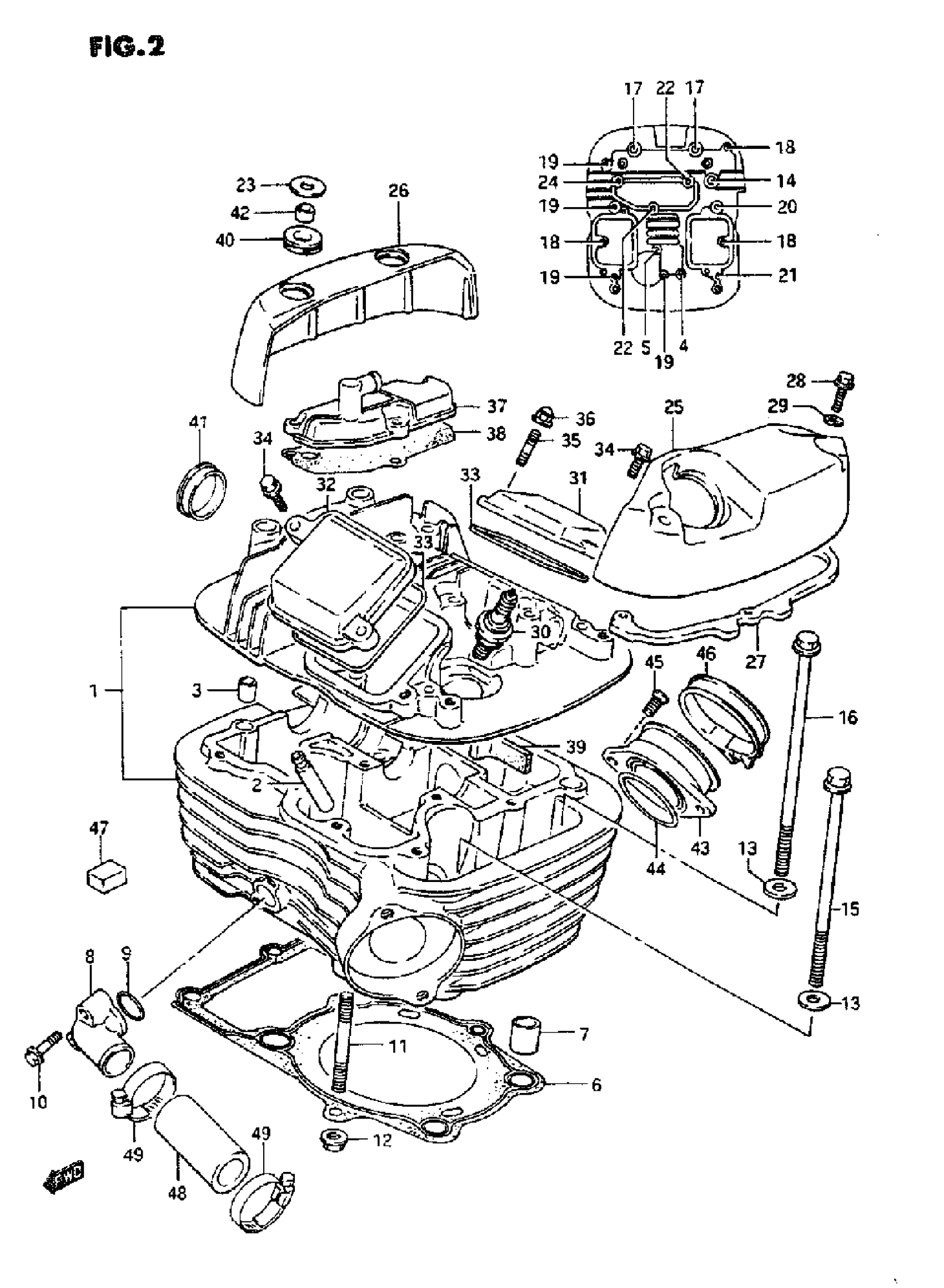

Suzuki VS800GL (1995) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | MODEL N/P/R This part replaces 11103-38A01.

11103-38A02

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL S/T

11103-38A02

Unavailable

2

GUIDE, VALVE (OS 0.3) This part replaces 11115-38A71.

11115-41F70

$40.73

3

PIN (11X14) This part replaces 09206-11011.

09206-11004

$5.36

4

BOLT (6X50)

09103-06101

$2.16

5

BOLT (6X55)

09103-06102

$2.10

6

GASKET, CYLINDER HEAD REAR

11142-45C00

$56.84

7

PIN | MODEL N/P This part replaces 09206-13001.

04211-13189

$2.19

7

PIN | MODEL R/S/T

04211-13189

$2.19

8

UNION, CYLINDER HEAD WATER | MODEL N This part replaces 11169-38A00.

11169-45C10

Unavailable

8

UNION, CYLINDER HEAD WATER | MODEL P/R/S/T

11169-45C10

Unavailable

9

O RING | MODEL N/P/R

09280-18004

$5.18

9

O RING (D:2.4,ID:17.8) | MODEL S/T This part replaces 09280-18010.

09280-18004

$5.18

10

BOLT | MODEL N/P/R

01547-06257

$2.03

10

BOLT, FINAL GEAR CASE COVER | MODEL S/T This part replaces 01547-06253.

01547-0625B

$2.45

11

STUD BOLT (L:40)

09108-08144

$3.20

12

NUT

08316-10087

$2.26

13

WASHER

09160-10039

$2.26

14

BOLT (8X140)

09103-08040

$5.52

15

BOLT (10X155)

09103-10133

$9.48

16

BOLT (10X165)

09103-10134

$9.48

17

BOLT (8X245)

09103-08180

Unavailable

18

BOLT

01550-06257

$2.30

19

BOLT

01550-06307

$2.69

20

BOLT

07120-06307

$4.32

21

BOLT

01550-06407

$2.69

22

BOLT (6X55)

09103-06102

$2.10

23

WASHER This part replaces 09160-08098.

09160-08130

$2.03

24

BOLT

01550-06207

$2.30

25

CAP, HEAD COVER LH

11173-38A03

Unavailable

26

CAP, HEAD COVER RH

11174-38A02

Unavailable

27

CUSHION, HEAD COVER CAP

11273-38A01

$11.07

28

BOLT (L:35)

01204-06357

Unavailable

29

WASHER

08322-01067

$2.13

30

SPARK PLUG (NGK, DPR8EA-9)

09482-00334

$3.03

30

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

$5.36

30

SPARK PLUG (NGK, DPR7EA-9) | OPT

09482-00354

$3.32

30

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355-111.

09482-00354

$3.32

30

SPARK PLUG (NGK, DPR9EA-9) | OPT

09482-00330

$3.11

30

SPARK PLUG (DENSO,X27EPR-U9) | OPT This part replaces 09482-00331-111.

09482-00331

$5.28

31

CAP, INSPECTION INTAKE | MODEL N This part replaces 11175-38A01.

11175-38A11

$23.07

31

CAP, INSPECTION INTAKE | MODEL P/R/S/T This part replaces 11175-38A10.

11175-38A11

$23.07

32

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 11176-38A01.

11176-38A02

Unavailable

32

CAP, INSPECTION EXHAUST | MODEL P/R/S/T This part replaces 11176-38A10.

11176-38A11

$23.07

33

GASKET, INSPECTION CAP

11177-38A00

$4.48

34

BOLT

01547-06207

$2.01

35

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

36

NUT

08313-20067

$2.42

37

COVER, BREATHER | MODEL N This part replaces 11186-38A01.

11186-38A02

Unavailable

37

COVER, BREATHER | MODEL P/R/S/T

11186-38A02

Unavailable

38

GASKET, BREATHER COVER

11187-38A02-H17

$7.98

39

PLATE, HEAD COVER

11179-38A00

Unavailable

40

CUSHION

09320-13015

$2.85

41

PLUG, HEAD | MODEL N/P This part replaces 09241-30006.

09241-30004

$6.60

41

PLUG, CYLINDER HEAD | MODEL R/S/T

09241-30004

$6.60

42

BUSH

09301-08007

$6.80

43

PIPE, INTAKE REAR This part replaces 13120-45C00.

13102-45C00

$36.41

44

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

45

SCREW | MODEL N/P This part replaces 02122-06205.

02122-0620A

$1.49

45

SCREW | MODEL R/S/T This part replaces 02122-06203.

02122-0620A

$1.49

46

CLAMP, INTAKE PIPE | MODEL N/P This part replaces 13170-05A00.

09402-52501

$10.90

46

CLAMP, INTAKE PIPE | MODEL R/S/T

09402-52501

$10.90

47

PAD, RUBBER

11152-38A00

$3.37

48

HOSE, CYLINDER HEAD JOINT

17854-38A00

$9.17

49

CLAMP | MODEL N/P/R This part replaces 09402-25502.

09402-28511

$6.88

49

CLAMP | MODEL S/T

09402-28511

$6.88
