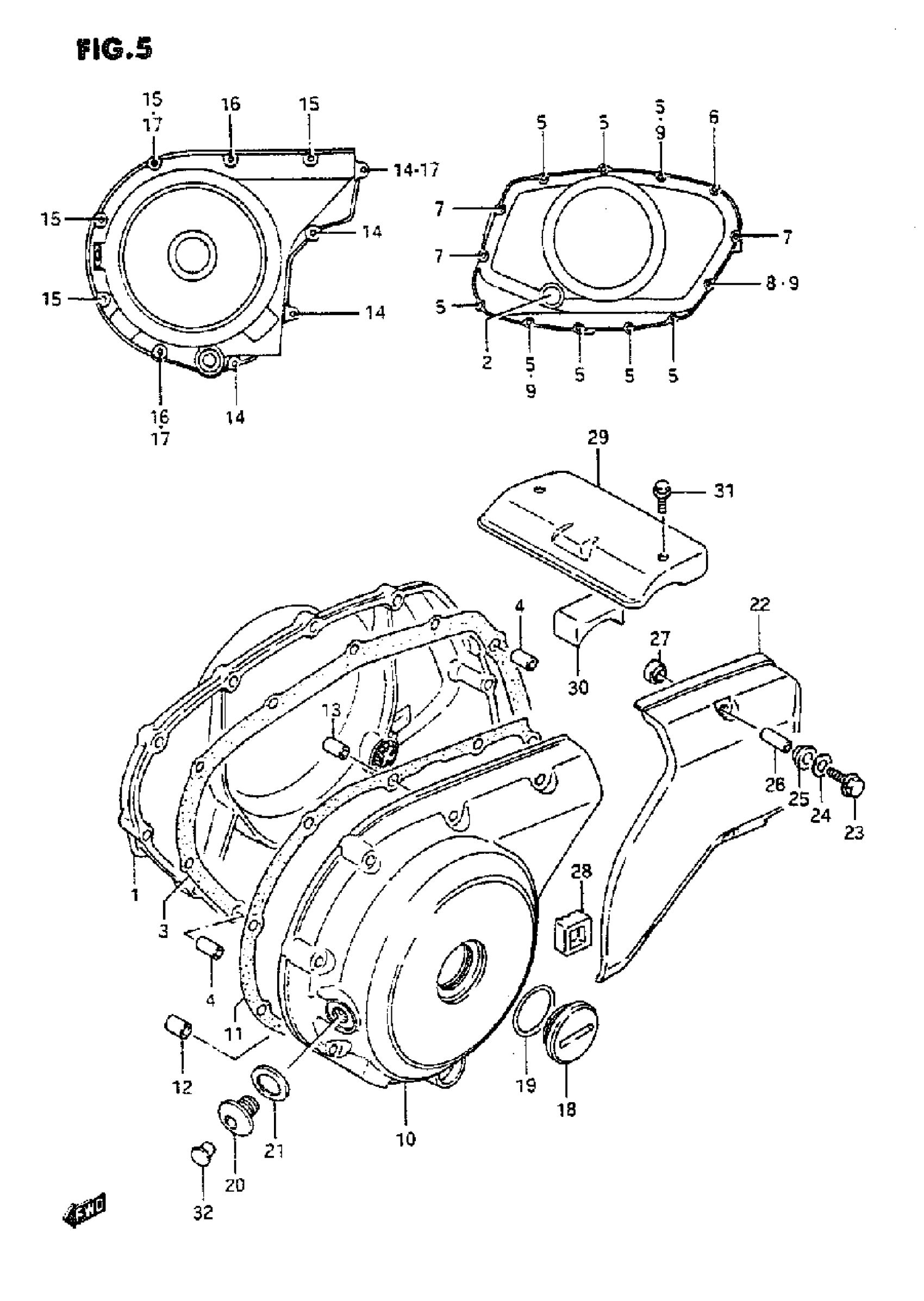

Suzuki VS800GL (1995) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-38A00

$371.53

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER | MODEL NIP This part replaces 11482-38A00-H17.

11482-41F00

$17.14

3

GASKET, CLUTCH COVER | MODEL R/S/T This part replaces 11482-38A10.

11482-41F00

$17.14

4

PIN

04211-09189

$1.65

5

BOLT

01547-06307

$2.03

6

BOLT

01547-06357

$2.03

7

BOLT

01547-06457

$2.32

8

BOLT

01547-06607

$3.18

9

GASKET (5.8X13X1.2) | MODEL N/P/R

09168-06023

$2.35

9

GASKET (5.8X11X1.2) | MODEL SIT

09168-06024

$2.20

10

COVER, GENERATOR | MODEL NIP This part replaces 11351-38A01.

11351-38A02

Unavailable

10

COVER, GENERATOR | MODEL R/S

11351-38A02

Unavailable

10

COVER, GENERATOR | MODEL I

11351-45C20

Unavailable

11

GASKET, GENERATOR COVER This part replaces 11483-38A00-H17.

11483-41F00

$14.20

12

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

13

PIN

04211-09189

$1.65

14

BOLT

01547-06307

$2.03

15

BOLT

01547-06407

$2.32

16

BOLT

01547-06507

$2.41

17

GASKET (5.8X13X1.2) | MODEL N/P/R

09168-06023

$2.35

17

GASKET (5.8X11X1.2) | MODEL SIT

09168-06024

$2.20

18

PLUG, ACCESS

09259-36008

$8.46

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

20

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

21

GASKET (14.1X18X1.5) | MODEL N/P/R

09168-14004

$1.83

21

GASKET (13.8X1B.8X0.4) | MODEL SIT

09168-14002

$2.26

22

COVER, SECONDARY DRIVE

11361-38A50

Unavailable

23

BOLT

01547-06457

$2.32

24

WASHER This part replaces 09160-06097.

09160-06125

$1.91

25

CUSHION, OUTER

09161-09006

$2.36

26

SPACER, LICENSE LAMP This part replaces 09180-06160.

09180-06278

$4.52

27

CUSHION, INNER

09161-09005

$2.36

28

DAMPER, SECONDARY COVER

11369-38A00

Unavailable

29

COVER, STARTER MOTOR | MODEL N/P/R/S This part replaces 31210-38A00.

31210-38A01

Unavailable

29

COVER, STARTER MOTOR | MODEL T

31210-38A01

Unavailable

30

DAMPER

31212-38A00

Unavailable

31

BOLT

01547-05087

$1.72

32

CAP

09250-08014

$2.85
