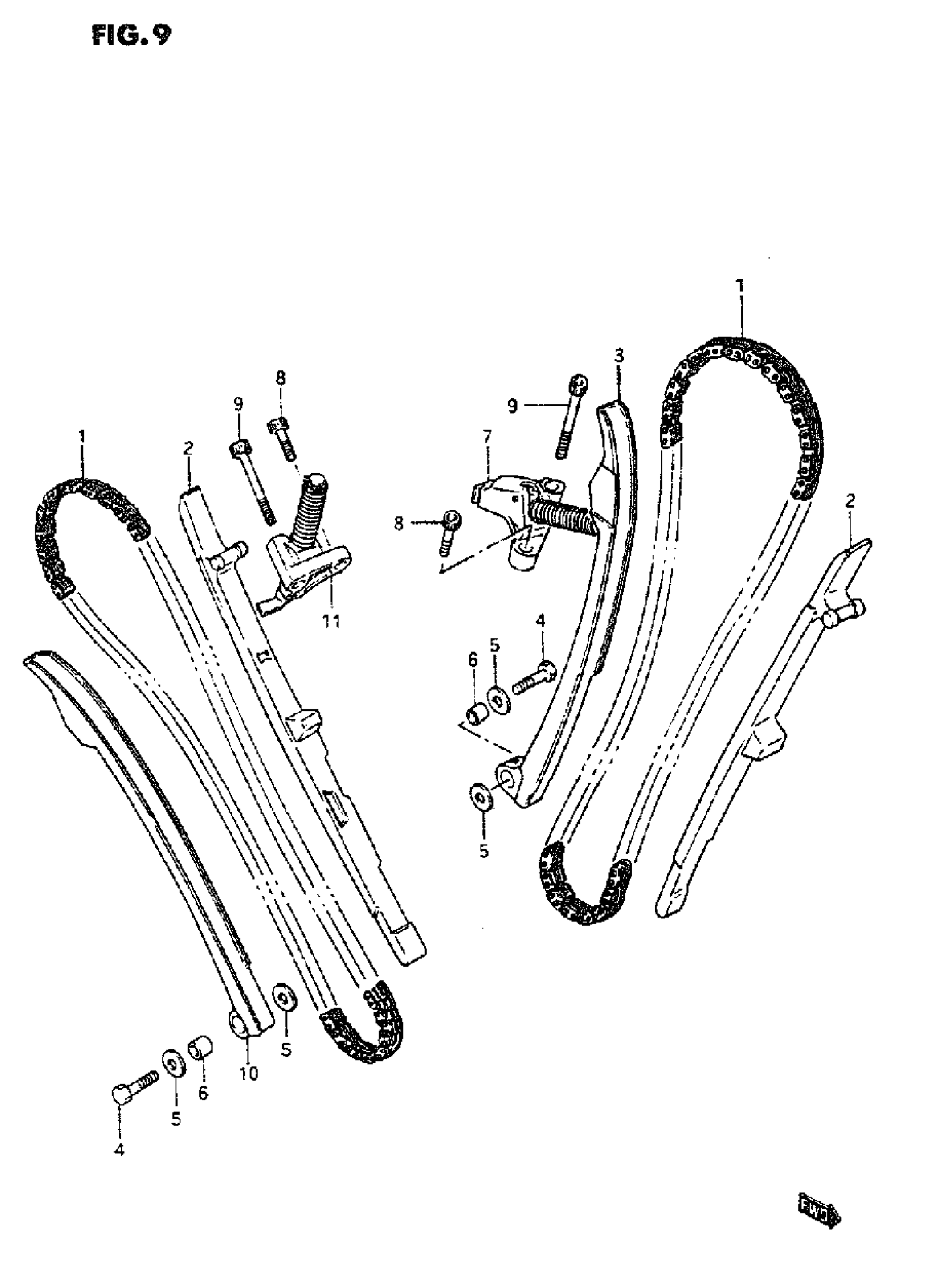

Suzuki VS800GL (1995) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | MODEL N/P/R/S This part replaces 12760-38A10.

12760-38A11

$192.30

1

CHAIN, CAM SHAFT DRIVE REAR (DID SCA-0412A SV X 128LE) | MODEL T This part replaces 12760-38A20.

12760-38A21

$187.13

2

GUIDE, CAM CHAIN | MODEL N/P/R/S

12771-38A02

$63.30

2

GUIDE, CAM CHAIN | MODEL T This part replaces 12771-38A10.

12771-38A02

$63.30

3

TENSIONER, CAM CHAIN FRONT

12811-38A01

$63.30

4

BOLT

09100-D6129

Unavailable

5

WASHER

08211-06182

$1.92

6

SPACER

09180-06148

Unavailable

7

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

$150.35

8

BOLT, FRONT BRG HOUSING | MODEL N/P This part replaces 07110-06205.

07130-0620B

$3.05

8

BOLT, FRONT BRG HOUSING | MODEL R/S/T This part replaces 07130-06203.

07130-0620B

$3.05

9

BOLT | MODEL N/P This part replaces 07110-06455.

07130-0645B

$4.10

9

BOLT | MODEL R/S/T This part replaces 07130-06453.

07130-0645B

$4.10

10

TENSIONER, CAM CHAIN REAR

12816-38A01

$60.97

11

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

$156.07

11

CARBURETOR ASSY, FRONT This part replaces 13210-38E10.

13210-38E11

$1,011.88

11

CARBURETOR ASSY, FRONT | CALIFORNIA ONLY This part replaces 13210-38E50.

13210-38E51

Unavailable
