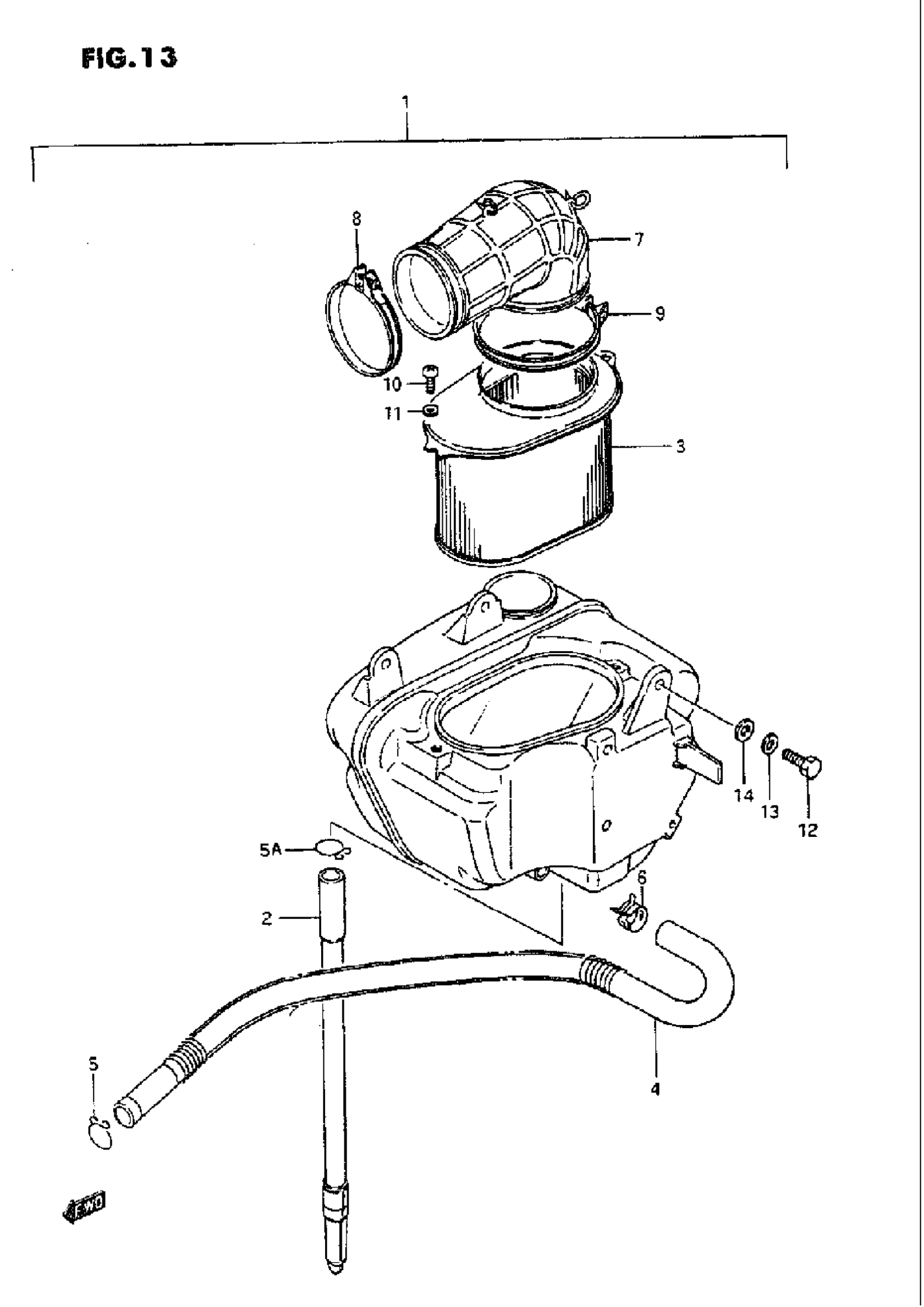

Suzuki VS800GL (1995) AIR CLEANER (REAR) Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL N This part replaces 13700-38A50.

13700-38A52

$248.47

1

CLEANER ASSY,AI | MODEL P/R/S/T This part replaces 13700-38A51.

13700-38A52

$248.47

2

TUBE,DRAIN | MODEL N/P/R/S This part replaces 13870-11413.

13870-11459

$15.51

2

TUBE,DRAIN | MODEL T This part replaces 13870-11458.

13870-11459

$15.51

3

FILTER ASSY | MODEL N This part replaces 13780-38A50.

13780-38A51

$42.57

3

FILTER ASSY | MODEL P/R/S/T

13780-38A51

$42.57

4

TUBE SET, BREATHER

13850-38A50

$68.60

5

CLIP

09401-14301

$2.35

5

CLIP | MODEL N/P/R/S This part replaces 13824-00A00.

09401-13409

$2.12

5

CLIP | MODEL T This part replaces 09401-14402.

09401-14404

$2.28

6

CLIP | MODEL N/P/R/S This part replaces 13824-43400.

09401-14404

$2.28

6

CLIP | MODEL T This part replaces 09401-14402.

09401-14404

$2.28

7

TUBE,OUTLET This part replaces 13881-38A50.

13881-38A51

$23.72

8

CLAMP This part replaces 09402-58207.

09402-58208

$5.36

9

CLAMP

09402-78207

$6.42

10

SCREW This part replaces 02112-05085.

02112-0508A

$1.49

11

LOCK WASHER | MODEL N/P This part replaces 08321-21055.

08321-0105A

$1.84

11

LOCK WASHER | MODEL R/S/T This part replaces 08321-01053.

08321-0105A

$1.84

12

BOLT | MODEL N/P This part replaces 01107-06207.

01500-06207

$2.28

12

BOLT | MODEL R/S/T

01500-06207

$2.28

13

LOCK WASHER | MODEL N/P This part replaces 08321-21067.

08321-01067

$2.13

13

LOCK WASHER | MODEL R/S/T

08321-01067

$2.13

14

WASHER

09160-06019

$1.49
